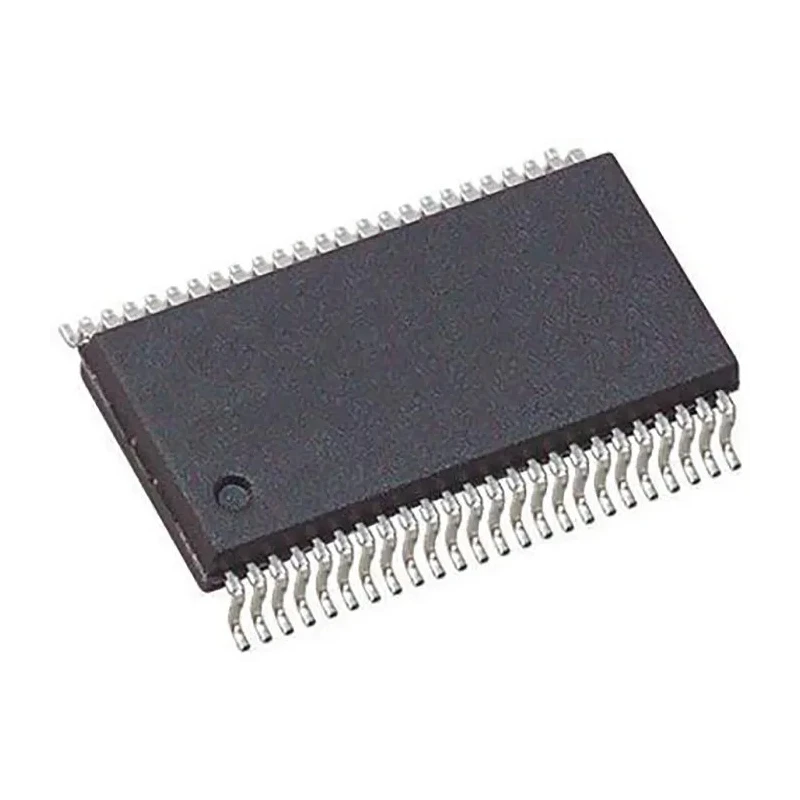

Texas Instruments Bus Transceiver 16-Bit Non-Inverting LVTTL 48-Pin TSSOP SN74LVTH16245ADGGR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 12.5mm |
| Model | SN74LVTH16245ADGGR |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVTTL |
| Output type | 3 State |
| Series | SN74LVTH16245A |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 16 |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LVT |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 2.7V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 3.7ns |
| Maximum Low Level Output Current | 64mA |
| Output Level | LVTTL |
| Input Level | LVTTL |
Key Features
- Supports 16 channels with non-inverting logic function.
- Operates with a supply voltage range of 2.7V to 3.6V.
- High-speed low-voltage BiCMOS logic family (74LVTH series).
- Compatible with input LVTTL/TTL and outputs LVTTL signals.
- Maximum propagation delay time of 3.7 nanoseconds at CL.
- Designed for surface mount applications in a thin shrink small outline package (TSSOP).
- Operating temperature range from -40°C to 85°C for industrial environments.
- Includes bus hold feature on inputs to eliminate large pull-ups.
Product Description
Texas Instruments SN74LVTH16245ADGGR is a high-speed, low-voltage 16-bit bus transceiver IC designed for industrial and commercial electronic applications. This bus transceiver features non-inverting LVTTL logic compatible input and output levels, enabling efficient data transfer in digital circuits with 16 independent channels.
Constructed on a 74LVTH family with BiCMOS technology, the device offers operating voltage from 2.7V to 3.6V which ensures low power consumption while delivering performance with a maximum propagation delay of 3.7 nanoseconds at CL.
The device comes in a compact 48-pin Thin Shrink Small Outline Package (TSSOP), suitable for surface mounting on printed circuit boards. The bus hold feature on inputs reduces the need for external pull-up resistors, enhancing signal integrity and reducing board complexity.
Operating temperature ranges from -40°C to 85°C, making it suitable for harsh industrial environments. The output stage supports 3-state operation enabling multiple devices to share the bus.
Supports 16 independent channels with non-inverting logic. Low-voltage operation with supply voltage between 2.7 and 3.6 volts. High performance with propagation delay of 3.7 ns under load. Compact 48-pin TSSOP packaging for efficient PCB integration.
Bus hold inputs eliminate need for large external pull-ups. Wide operating temperature range for industrial applications. Compatible with LVTTL input and output levels. 3-state bus interface with high and low output current capability.
Ideal for applications in digital data communication, control systems, and instrumentation.
This bus transceiver is widely used in industrial automation, digital communication systems, embedded control designs, and other environments requiring reliable high-speed data transfer with minimal power consumption.
Explore our Electronics & Electricals category to find more semiconductor devices including Bus Transceivers and other logic ICs from Texas Instruments and other reputable manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage range for this model is between 2.7V and 3.6V.
The maximum propagation delay time is 3.7 nanoseconds at CL.
It supports 16 independent channels with a non-inverting logic function.
This unit is compatible with input LVTTL/TTL and outputs LVTTL signals.
It comes in a 48-pin Thin Shrink Small Outline Package (TSSOP).
The operating temperature range is from -40°C to 85°C, suitable for industrial environments.
It performs a non-inverting logic function.
The maximum high-level output current is -32mA.
Yes, it includes a bus hold feature on inputs to eliminate the need for large pull-up resistors.
This model is designed for surface mounting.
It belongs to the LVT logic family.
The output type is 3-state, allowing multiple devices to share the bus.
