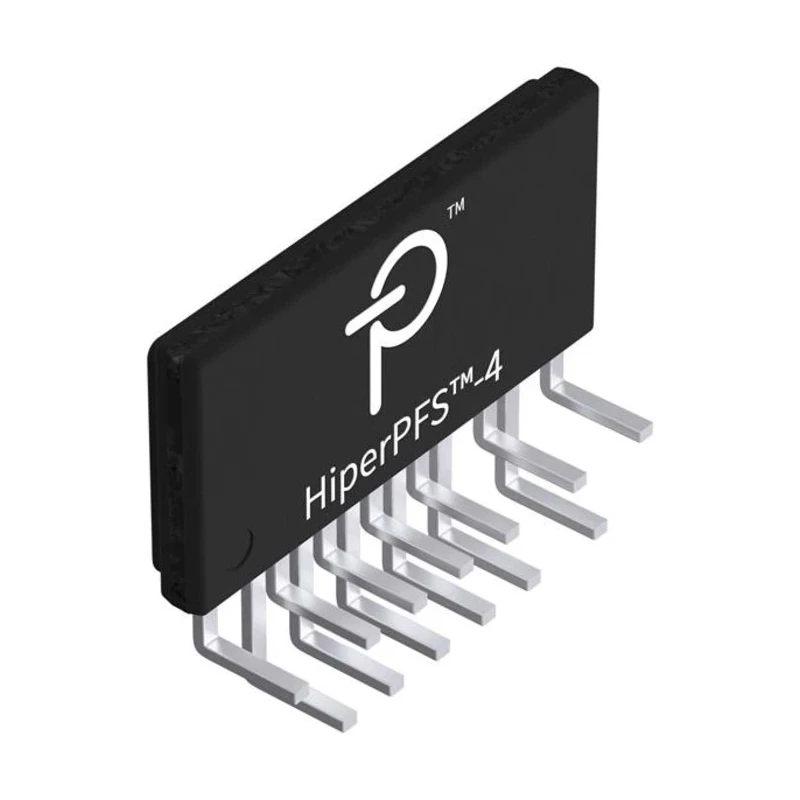

Power Integrations Power Factor Correction Controller eSIP 12V 60 kHz 16-Pin PFS7725L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 1.96mm |
| Length | 16mm |
| Model | PFS7725L |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | eSIP |
| Sub Type | Power Factor Controller |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 60kHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 5V |
| Supply Current | 23A |
| Protection features include | UVLO, UV, OV, OTP, brown-in/out, cycleby-cycle current limit and power limiting for overload protection |
Key Features
- Integrated 600 V MOSFET and diode in a low-profile eSIP package.
- Operates at switching frequency of 60 kHz for optimized performance.
- Supports supply current of 23A with 16 pins in surface mount type.
- Built-in protection features include UVLO, OV, OTP, brown-in/out and cycle-by-cycle current limit.
- Wide operating temperature range from -40°C to 150°C suitable for industrial use.
- Eliminates external current sense resistors reducing power loss.
- Programmable Power Good signal and digital line peak detection ensure robust operation.
- Spread-spectrum modulation facilitates EMI filtering compliance.
Product Description
Power Integrations PFS7725L is an advanced power factor correction (PFC) controller optimized for high power factor and efficiency in electronic power supply designs. The device integrates a 600 V MOSFET and diode in a compact eSIP 16-pin surface mount package, enabling simplified design and reduced system size. It operates at a switching frequency of 60 kHz which adaptively varies with load and line voltage conditions for optimal performance.
The PFS7725L includes a range of integrated protection features such as under-voltage lockout (UVLO), overvoltage (OV), overtemperature protection (OTP), brown-in/out detection, and cycle-by-cycle current limit, making it reliable for demanding industrial environments with operating temperatures from -40°C up to 150°C. The device’s innovative control technique eliminates the need for external current sensing resistors, improving overall efficiency by reducing power loss.
Additional functional features include a programmable Power Good (PG) output signal for system status monitoring and digital line peak detection that maintains robust operation even under distorted input voltage conditions seen in uninterruptible power supply (UPS) or generator powered systems. A spread-spectrum frequency modulation further simplifies electromagnetic interference (EMI) filtering requirements.
This PFC controller withstands steady-state input voltages of 305 VAC and abnormal inputs of 410 VAC without external insulating pads or heat spreaders, ensuring compact and robust design integration. It is primarily suited for industrial power supplies, electronic equipment, and power management systems requiring efficient power factor correction and control.
Integrated 600 V MOSFET and diode in single eSIP package. Switching frequency programmable around 60 kHz for improved EMI performance. Wide supply voltage range: 5V minimum to 12V maximum. Comprehensive protection features to ensure device and system safety.
High temperature tolerance from -40°C to 150°C for industrial reliability. Eliminates external current sense resistors to improve efficiency.
Explore more Power Management ICs in the Power Integrations range and related power factor controller solutions on EnvMart to enhance your electronic designs with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 12V.
It operates at a switching frequency of 60 kHz.
The supply current rating for this unit is 23A.
This model has an operating temperature range from -40°C to 150°C.
It includes under-voltage lockout (UVLO), overvoltage (OV), overtemperature protection (OTP), brown-in/out detection, and cycle-by-cycle current limit.
The PFS7725L comes in an eSIP package type.
This model has a pin count of 16.
The minimum supply voltage for this unit is 5V.
The height of this model is 1.96mm.
It is primarily suited for industrial power supplies, electronic equipment, and power management systems requiring efficient power factor correction.
Yes, it eliminates the need for external current sensing resistors, which improves overall efficiency by reducing power loss.
The PFS7725L is manufactured in India.
