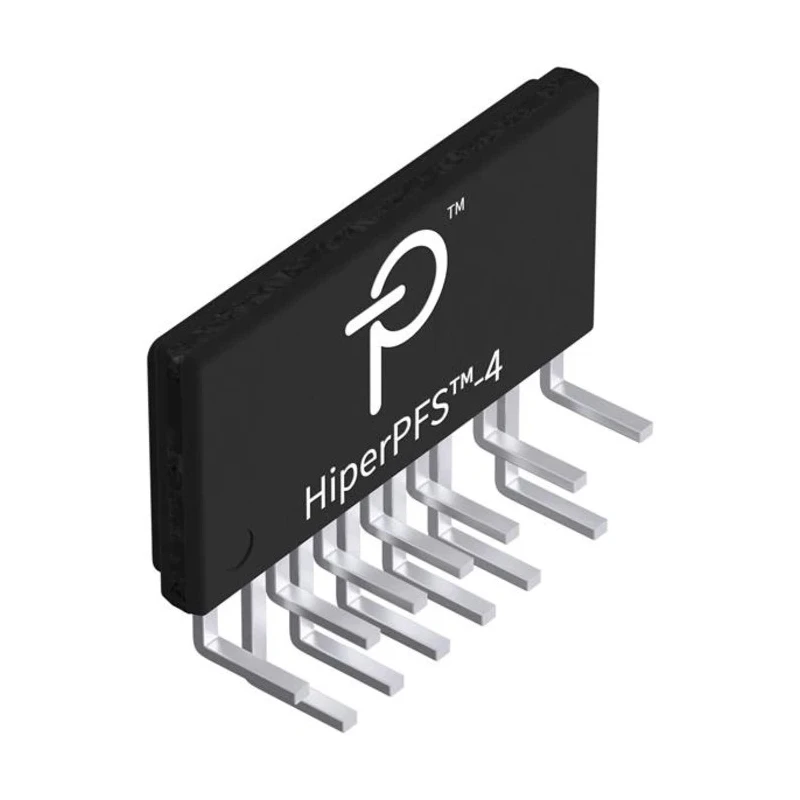

Power Integrations PFC Controller 60 kHz 16-Pin Plastic eSIP 12V PFS7727H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 1.96mm |
| Length | 16mm |
| Model | PFS7727H |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | Plastic eSIP |
| Sub Type | Power Factor Controller |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 60kHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 10V |
| Supply Current | 23A |
| Protection features include | UVLO, UV, OV, OTP, brown-in/out, cycleby-cycle current limit and power limiting for overload protection |
Key Features
- Optimized for high power factor and efficiency across load ranges.
- Integrated 600 V MOSFET and diode option in a low-profile package.
- Eliminates need for external current sense resistors to reduce power loss.
- Programmable Power Good (PG) signal for monitoring.
- Digital line peak detection ensures reliable performance with distorted input.
- Includes a digital power factor enhancer to compensate for EMI filter and bridge distortion.
- Spread-spectrum operation across a 60 kHz window simplifies EMI filtering requirements.
- Comprehensive protection features such as UVLO, UV, OV, OTP, brown-in/out and cycle-by-cycle current limit.
Product Description
Power Integrations PFS7727H is a Power Factor Correction controller designed to operate at a switching frequency of 60 kHz in a compact 16-pin Plastic eSIP surface mount package suitable for industrial and consumer power electronics.
This device integrates a 600 V MOSFET and diode, optimized to achieve high power factor and efficiency over a wide load range without the need for external current sense resistors, reducing system losses and simplifying design.
The PFS7727H offers a programmable Power Good signal and digital line peak detection, enabling reliable operation even with line voltage distortions such as those from backup power sources like UPS or generators.
Its digital power factor enhancer compensates for distortions caused by EMI filters and bridge rectifiers. Spread-spectrum modulation over a frequency range exceeding 60 kHz eases electromagnetic interference filtering.
Protection circuits within include undervoltage lockout (UVLO), undervoltage (UV), overvoltage (OV), over-temperature protection (OTP), brown-in/out detection, cycle-by-cycle current limiting, and overload power limiting, ensuring robust device operation under abnormal conditions. It is rated to withstand 305 VAC steady-state and transient input voltages up to 410 VAC.
Optimized for high efficiency power factor correction in industrial power supplies. Compact Plastic eSIP package for space-saving surface mount applications. Integrated power MOSFET and diode reduce component count and losses.
Advanced control algorithms adjust switching frequency dynamically for improved performance. Full range of protection mechanisms enhances reliability and safety. Suitable for use in power management applications including AC/DC power supplies, industrial automation, and consumer electronics.
Power Integrations PFS7727H opens opportunities in power factor enhancement across HVAC, industrial machinery, and consumer power products by minimizing electrical losses and improving system power quality.
Explore EnvMart's comprehensive catalog of Power Management ICs for compatible products and technical guidance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PFS7727H operates at a switching frequency of 60 kHz.
The maximum supply voltage for the PFS7727H is 12V.
This model has a height of 1.96 mm and a length of 16 mm.
The minimum operating temperature for this unit is -40°C.
It includes protection features such as undervoltage lockout (UVLO), undervoltage (UV), overvoltage (OV), over-temperature protection (OTP), brown-in/out detection, and cycle-by-cycle current limiting.
The supply current for this model is rated at 23A.
The maximum operating temperature is 150°C.
This power factor controller comes in a Plastic eSIP package.
Yes, it is designed for surface mount applications.
The PFS7727H is manufactured in India.
It is categorized as a Power Factor Controller.
The minimum supply voltage is 10V.
