| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.15mm |
| Length | 3.1mm |
| Model | BZX84C9V1LYT116 |
| Mount Type | Surface |
| Series | BZX84C |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 9.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 15Ω |
| Typical Voltage Temperature Coefficient | 6.9mV/°C |

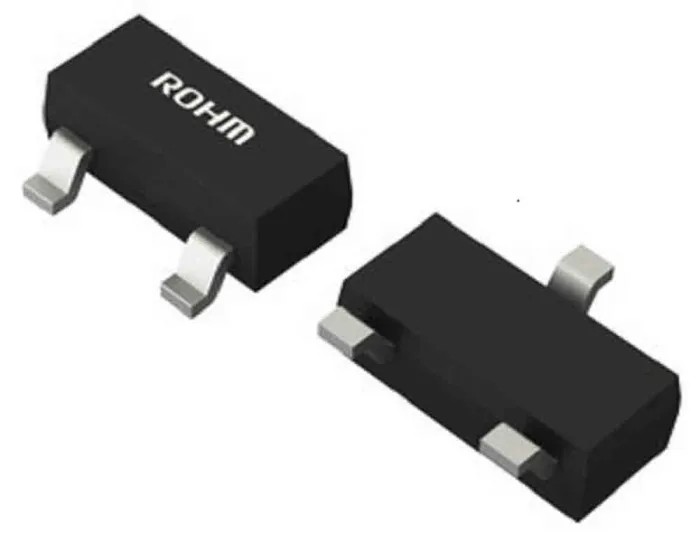

ROHM BZX84C9V1LYT116 is a highly reliable Zener diode engineered for voltage regulation applications. This device features a nominal Zener voltage of 9.1 V and supports a maximum power dissipation of 250 mW, making it suitable for compact electronic assemblies requiring stable voltage control.
The diode has a single element configuration mounted on a surface with a small SOT-23 package form factor containing 3 pins, which enables easy integration into PCB layouts. It withstands high operating temperatures up to 150°C and complies with stringent RoHS environmental regulations and the automotive standard AEC-Q101, ensuring suitability for automotive and industrial uses.
Typical applications include voltage regulation in power supplies, protection circuits, and other semiconductor devices where precise voltage control and stable operation are critical. Its low leakage current and stable impedance contribute to efficient and reliable circuit performance. The typical voltage temperature coefficient of 6.9 mV/°C ensures consistent performance across varying thermal conditions.
This diode is ideal for industries requiring robust and compact electronic components such as automotive systems, manufacturing equipment, laboratory electronics, and general electronic device manufacturing.
The diode is a single element type optimized for surface mounting. Provides stable voltage regulation in electronic circuits. Features a small form factor with 3 pins for easy PCB integration. Maximum operating temperature is rated at 150°C for reliable performance.
Complies with RoHS standards and AEC-Q101 automotive qualification. Ideal for industrial, automotive, and electronic applications requiring voltage regulation. Typical voltage temperature coefficient is 6.9 mV/°C ensuring consistent operation under temperature variations.
Low maximum reverse leakage current of 500 nA minimizes power loss. Maximum Zener impedance of 15 Ω supports stable voltage under load. Explore more in Zener Diodes category on EnvMart for varied voltage regulation solutions by leading manufacturers including ROHM.
