| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.15mm |
| Length | 3.1mm |
| Model | BZX84B20VLYFHT116 |
| Mount Type | Surface |
| Series | BZX84B |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 20V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 55Ω |
| Typical Voltage Temperature Coefficient | 17.3mV/°C |

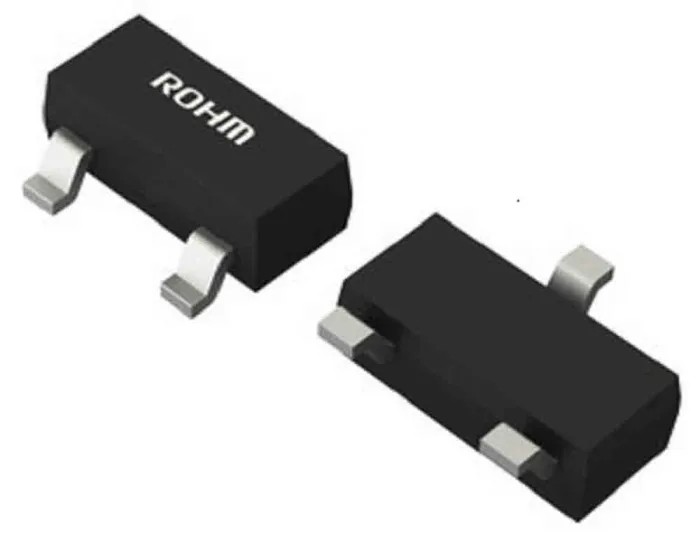

The ROHM BZX84B20VLYFHT116 is a high reliability 20 V Zener diode designed for voltage regulation applications in industrial, automotive, and electronic equipment. This single element diode is housed in a compact SOT-23 surface mount package, enabling efficient PCB layouts and space-saving designs.
With a maximum power dissipation of 250 mW and a test current of 5 mA, it offers consistent voltage regulation performance up to temperatures as high as 150°C. Its nominal Zener voltage of 20 V and maximum Zener impedance of 55 ohms ensure precise voltage stabilization for sensitive electronics.
This diode is compliant with RoHS directives and meets the AEC-Q101 automotive standard, making it suitable for demanding environments requiring high reliability.
The small form factor and surface mount technology facilitate automated manufacturing and integration into modern semiconductor circuits. The maximum reverse leakage current of 100 nA further enhances device efficiency, minimizing unwanted current losses.
Nominal Zener voltage of 20 V enables effective voltage regulation. Single diode configuration for discrete semiconductor applications. SOT-23 surface mount package supports compact PCB designs. Maximum power dissipation of 250 mW allows moderate power handling.
Test current set at 5 mA for voltage stability verification. High maximum operating temperature of 150°C for harsh environments. RoHS compliance and automotive-grade AEC-Q101 certification. Low reverse leakage current at 100 nA for enhanced efficiency.
Designed for use in electronic circuits requiring voltage regulation, such as power supplies, battery management, and signal conditioning, this ROHM Zener diode BZX84B20VLYFHT116 combines reliability and performance. It is extensively used in industrial, automotive, construction, manufacturing, and electronic instrument applications.
Explore more ROHM semiconductor solutions and voltage regulation devices in the EnvMart catalog to optimize your electronic design projects.
Explore more products in our Zener Diodes category.
