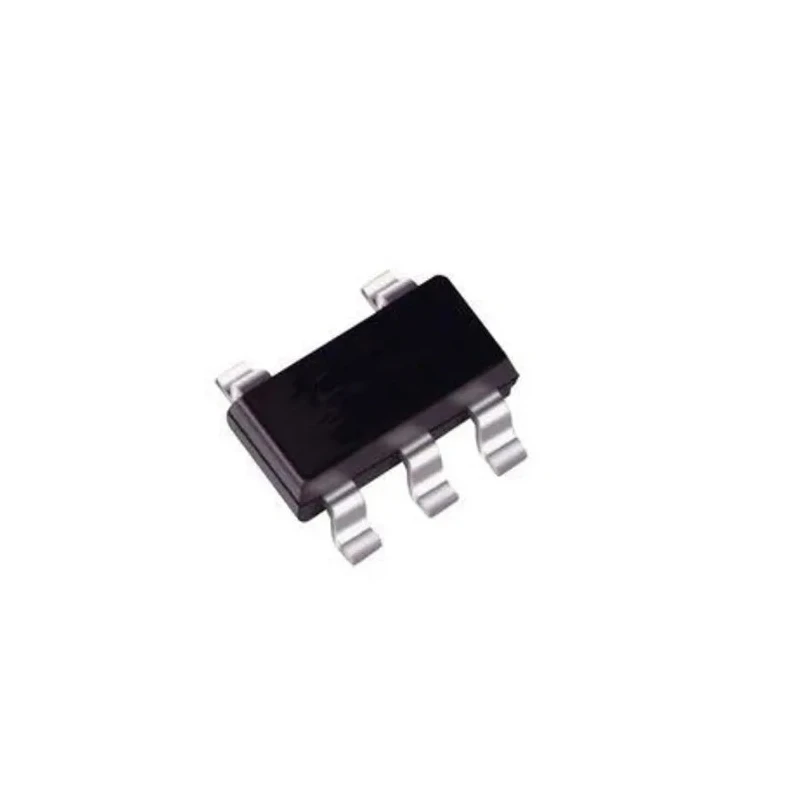

DiodesZetex Single 2-Input OR Schmitt Trigger Input Logic Gate 5-Pin SOT-323 2V-5.5V 74AHC1G86QSE-7

DiodesZetex 74AHC1G86QSE-7 is a single 2-input OR Schmitt trigger input logic gate featuring a 5-pin SOT-323 surface-mount package, designed for industrial, automotive, and electronic circuit applications. It operates on a low supply voltage range from 2.0V to 5.5V with an automotive-grade compliance ensuring reliable operation in harsh temperature extremes from -40°C up to 125°C.

The device integrates a Schmitt trigger input to enable noise immunity and robust signal conditioning. It delivers balanced propagation delays with a maximum propagation delay time of 11.5 nanoseconds, suitable for fast switching logic operations in digital circuits. Its push-pull output type ensures balanced drive capability for efficient and stable output signal drive.

Physically compact, the device measures 2.2 mm in length and 1 mm in height, fitting into space-sensitive PCB designs with ease. It supports a maximum high-level output current of -8 milliamps and a low-level output current of 8 milliamps, providing sufficient drive strength for typical logic applications.

This logic gate device ensures high reliability and is compliant with the AEC-Q100 automotive standard, making it suitable for automotive electronics and other demanding industrial applications. Its single logic element with two Schmitt trigger inputs offers a positive exclusive OR function that helps implement complex logic functions in control systems, signal processing units, and embedded designs.

By integrating the 74AHC1G86QSE-7 logic gate, designers can achieve efficient signal processing with enhanced noise immunity and fast response times. Its surface mount package aids automated manufacturing and compact system assembly.

Operates within a voltage range of 2V to 5.5V suitable for low voltage digital circuits. Automotive compliant with extended temperature range and AEC-Q100 certification. Compact 5-pin SOT-323 package with small form factor to save PCB space.

Push-pull output offers balanced output drive for improved performance. Schmitt trigger inputs deliver noise-immune and stable input signal processing. Low propagation delay time enhances switching speed and circuit timing.

For users seeking highly reliable and compact logic gates for automotive and industrial electronic designs, the DiodesZetex 74AHC1G86QSE-7 provides an excellent choice. Explore more components in the Logic Gate category on EnvMart for a full range of semiconductor logic solutions.
