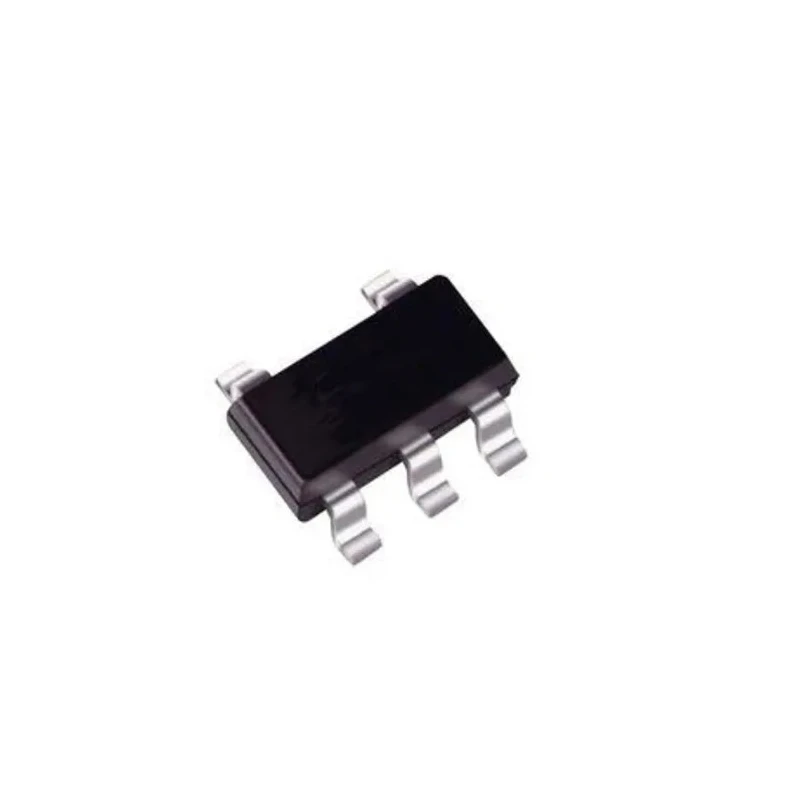

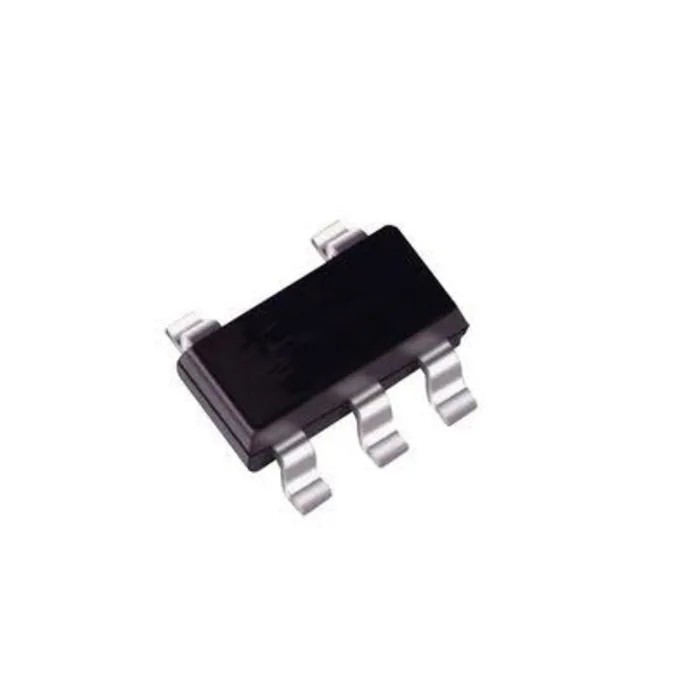

DiodesZetex Buffer Logic IC 1-Input Schmitt Trigger 5-Pin SOT-323 2-5.5V 11ns Propagation Delay AHC Family 74AHC1G126QSE-7

DiodesZetex 74AHC1G126QSE-7 is a high-performance single buffer logic IC featuring a 1-input Schmitt trigger input in a compact 5-Pin SOT-323 surface-mount package. Designed within the AHC logic family, this device operates reliably from a 2V minimum to a 5.5V maximum supply voltage, making it suitable for a broad range of digital electronics applications.

This buffer IC incorporates balanced propagation delays of approximately 11 nanoseconds, ensuring stable and synchronized signal transmission. The inclusion of a Schmitt trigger input enhances noise immunity, making it particularly valuable in automotive and industrial environments with electrically noisy conditions.

It supports a 3-state output controlled by an output enable (OE) pin, allowing the output to enter a high impedance state when disabled. This feature enables easy bus driving and multiplexing functionalities in complex digital systems. The device is qualified to the AEC-Q100 automotive standard, ensuring operating temperature range from -40°C to +125°C, addressing the needs of demanding automotive and industrial applications.

The compact SOT-323 package with 5 pins conserves board space while delivering a maximum output current of ±8 mA, sufficient for driving low to medium load capacitances and bus lines. Its low power consumption and robust design cater to modern system requirements where efficiency and reliability are critical.

Automotive-grade single buffer with Schmitt trigger input for enhanced noise immunity. Wide operating temperature range from -40°C to +125°C certified to AEC-Q100. Balanced 11ns propagation delay for accurate timing and signal integrity.

3-state output capability for bus driving and signal multiplexing. Compact surface mount 5-Pin SOT-323 package optimized for space saving. Operating voltage range from 2V to 5.5V compatible with various logic circuits. High output drive current of ±8mA suitable for diverse load conditions.

Typical applications include automotive electronics, industrial controls, and general buffering needs in digital systems.

DiodesZetex 74AHC1G126QSE-7 combines efficient buffering with automotive standard compliance, making it a reliable choice for engineers designing advanced electronic controls and communication buses.
