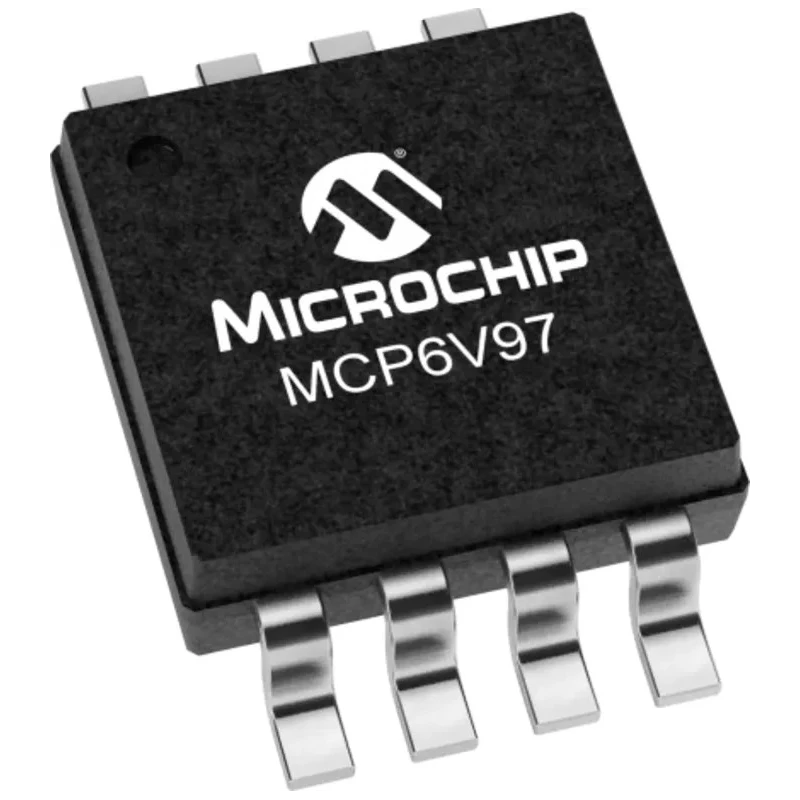

Microchip Operational Amplifier Dual Channel 8-Pin MSOP Package 10 MHz Gain Bandwidth Product 5.5 V MCP6V97-E/MS

Free Delivery in India | Lowest Global Shipping Charges

Microchip Operational Amplifier Dual Channel 8-Pin MSOP Package 10 MHz Gain Bandwidth Product 5.5 V MCP6V97-E/MS

Name: Microchip Operational Amplifier Dual Channel 8-Pin MSOP Package 10 MHz Gain Bandwidth Product 5.5 V MCP6V97-E/MS
Brand: Microchip
SKU: 291399
Price: 2.46 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.1mm
Length	3mm
Model	MCP6V97-E/MS
Width	3mm
Mount Type	Surface
Series	MCP6V97
Output Current	30mA
Maximum Operating Temperature	125°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Minimum Supply Voltage	5.5V
GBP - Gain Bandwidth Product	10MHz
Input Bias Current	±2 pA
Slew Rate	9.5V/μs
Input Offset Current	±100 pA

Key Features

Features zero-drift architecture for minimal offset and drift.
Operates with a low input offset voltage of 25 microvolts.
Provides a high slew rate of 9.5 volts per microsecond.
Offers input bias current as low as ±2 picoamperes.
Has an output current capability of 30 milliamperes.
Ensures excellent common-mode and power supply rejection.
Operating temperature range from -40°C to 125°C.
Compact 3 mm x 3 mm x 1.1 mm MSOP surface mount package.

Product Description

Microchip MCP6V97-E/MS is a high-performance dual operational amplifier designed for precision analog signal processing in industrial, laboratory, and electronic equipment applications. It features a zero-drift architecture that achieves extremely low input offset voltage of 25 microvolts and very low offset voltage drift of 150 nanovolts per degree Celsius, providing stable operation over temperature variations.

This operational amplifier offers a 10 MHz gain bandwidth product with unity gain stability and a high slew rate of 9.5 volts per microsecond, enabling high-speed signal amplification with minimal distortion. It supports a wide operating voltage of 5.5 V and is designed to operate efficiently with a low quiescent current of 1.6 mA per channel.

The device features ultra-low input bias current of ±2 picoamperes and input offset current of ±100 picoamperes, contributing to high accuracy in measurement and sensor interface circuits. It delivers an output current up to 30 mA, suitable for driving loads directly in compact designs.

The MCP6V97-E/MS comes in a compact 8-pin MSOP surface-mount package measuring 3 mm x 3 mm x 1.1 mm, ideal for space-constrained PCB layouts. It is specified for operation over a wide temperature range from -40°C to +125°C, suitable for automotive and industrial applications where temperature extremes are common, although it is not rated for automotive standards.

The product is RoHS compliant, meeting environmental directives for hazardous substances. Its enhanced EMI rejection and low 1/f noise characteristics make it suited for sensitive analog applications requiring high precision and signal integrity.

Zero-drift architecture with offset voltage correction. 10 MHz gain bandwidth product and unity gain stability. Low input bias current and input offset current for precision. Compact MSOP 8-pin package for surface mounting.

Wide operating temperature from -40°C to 125°C. RoHS compliant and environmentally friendly.

This Operational Amplifier is widely used in industrial control systems, medical instrumentation, sensor amplification, and general-purpose analog applications where high accuracy and low noise are critical. Explore more Microchip semiconductor amplifiers and components at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The MCP6V97-E/MS has a gain bandwidth product of 10 MHz, allowing for high-speed signal amplification with minimal distortion.

It can deliver an output current of up to 30 mA, making it suitable for driving loads directly in compact designs.

The operational amplifier comes in a compact 8-pin MSOP package measuring 3 mm x 3 mm x 1.1 mm.

It operates over a wide temperature range from -40°C to +125°C, suitable for various industrial and automotive applications.

The MCP6V97-E/MS features a low input offset voltage of 25 microvolts, contributing to its precision in analog signal processing.

This model is designed for surface mounting, making it suitable for space-constrained PCB layouts.

It has a high slew rate of 9.5 volts per microsecond, enabling fast response times in signal amplification.

The input bias current for this operational amplifier is as low as ±2 picoamperes, which enhances its accuracy in measurement applications.

Yes, the MCP6V97-E/MS is RoHS compliant, meeting environmental directives for hazardous substances.

The input offset current is specified at ±100 picoamperes, contributing to the overall precision of the device.

This model features two channels, allowing for dual signal processing in various applications.

It is widely used in industrial control systems, medical instrumentation, sensor amplification, and general-purpose analog applications where high accuracy is critical.
