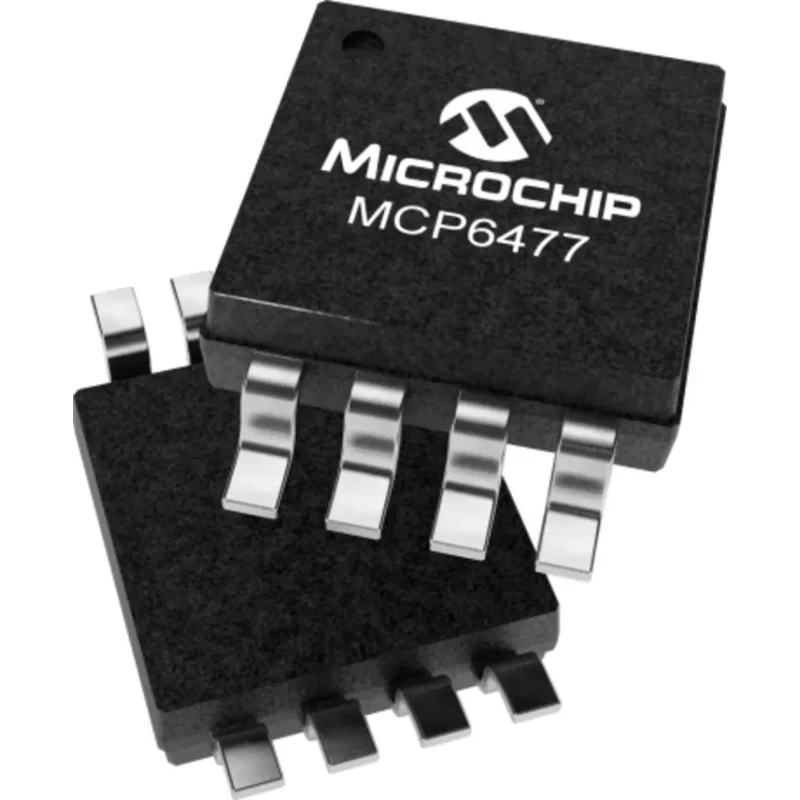

Microchip Operational Amplifier 3 MHz Gain Bandwidth, 8-Pin SOIC Package MCP6477-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | MCP6477-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6477 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Supply Voltage | 1.8V to 5.5V |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 5.5V |
| Supply Current | 50 μA (typical) |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | ±1 pA |
| Vos - Input Offset Voltage | 1.6 mV |
| Slew Rate | 3.2V/μs |
| Gain bandwidth product | 1 MHz (typical) |
| Input offset voltage | 1.6 mV (maximum) |
| EMIRR at 1.8 GHz | 95 dB (typical) |
Key Features
- High gain bandwidth product of 3 MHz for versatile analog applications.
- Low input bias current at ±1 pA ensures precision signal processing.
- Operates with supply voltage up to 5.5 V, suitable for low-voltage systems.
- Features a low input offset voltage of 1.6 mV maximum for accurate amplification.
- Equipped with a fast slew rate of 3.2 V/μs for rapid response.
- Wide operating temperature range from -40°C to 125°C supports harsh environments.
- Complies with RoHS standards for environmental safety.
- Automotive qualified meeting AEC-Q100 standards for reliable automotive use.
Product Description
Microchip MCP6477-E/SN operational amplifier is a high-performance 8-pin SOIC device featuring a gain bandwidth product of 3 MHz and 5.5 V maximum supply voltage, ideal for precision amplification in electronic circuits.
This operational amplifier offers an exceptionally low input bias current of ±1 pA and a maximum input offset voltage of 1.6 mV, enabling highly accurate signal conditioning. Its fast slew rate of 3.2 V/μs allows quick response to input changes, enhancing performance in dynamic applications.
The device is fully specified for extended operating temperatures from -40°C to +125°C, ensuring reliability in automotive and industrial environments. It also meets AEC-Q100 standards for automotive qualification and complies with RoHS environmental directives.
The compact SOIC package (4.9 mm length, 3.9 mm width, 1.75 mm height) is suitable for surface mounting on PCBs, making it ideal for a wide range of consumer, industrial, and automotive electronic designs.
High gain bandwidth product of 3 MHz for versatile analog applications. Low input bias current at ±1 pA ensures precision signal processing. Operates with supply voltage up to 5.5 V, suitable for low-voltage systems. Features a low input offset voltage of 1.6 mV maximum for accurate amplification.
Equipped with a fast slew rate of 3.2 V/μs for rapid response. Wide operating temperature range from -40°C to 125°C supports harsh environments. Complies with RoHS standards for environmental safety. Automotive qualified meeting AEC-Q100 standards for reliable automotive use.
Compact dimensions with 4.9 mm length, 3.9 mm width, and 1.75 mm height in SOIC package.
This Operational Amplifier is suitable for various industrial, automotive, and consumer electronics applications including signal conditioning, filtering, and sensor interface circuits.
Explore the wide range of Microchip semiconductor components for advanced electronics design at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6477-E/SN has a gain bandwidth product of 3 MHz, making it suitable for various analog applications.
This operational amplifier operates with a maximum supply voltage of 5.5 V, which is suitable for low-voltage systems.
The input bias current for the MCP6477-E/SN is ±1 pA, ensuring precision in signal processing.
The maximum input offset voltage is 1.6 mV, which supports accurate amplification.
It has a fast slew rate of 3.2 V/μs, allowing for rapid response to input changes.
The dimensions of this operational amplifier are 4.9 mm in length, 3.9 mm in width, and 1.75 mm in height.
It operates over a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
This model uses a surface mount type, compatible with PCB installations.
The MCP6477-E/SN can provide an output current of up to 30 mA.
Yes, it meets AEC-Q100 standards, making it suitable for automotive applications.
Yes, it complies with RoHS standards for environmental safety.
This operational amplifier is suitable for various applications including signal conditioning, filtering, and sensor interface circuits.
