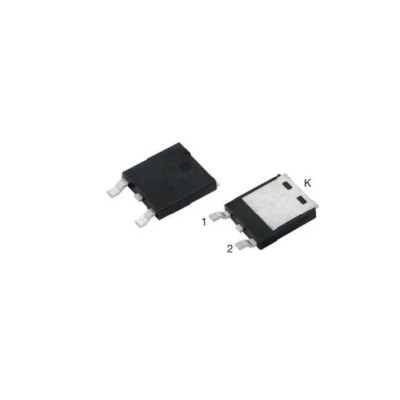

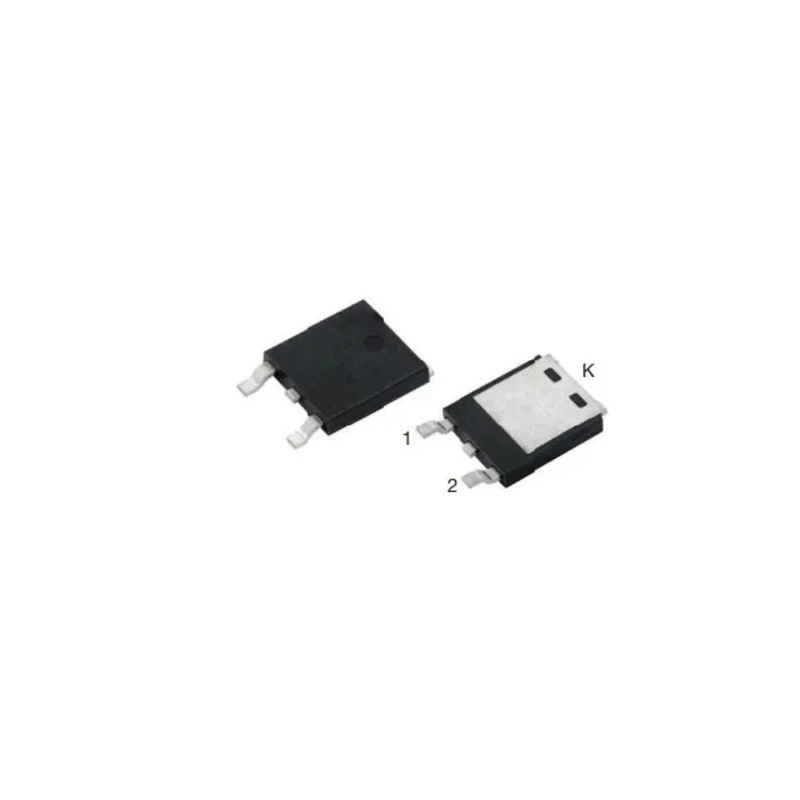

Vishay 100 V 35 A Surface Mount Schottky Rectifier Diode TO-252 Package V35PW10HM3/I

Name: Vishay 100 V 35 A Surface Mount Schottky Rectifier Diode TO-252 Package V35PW10HM3/I
Brand: Vishay
SKU: 290710
Price: 1.36 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.4mm
Length	9.4mm
Model	V35PW10HM3/I
Width	6.32mm
Mount Type	Surface
Series	V35PW10
Maximum Operating Temperature	150°C
Package Type	TO-252
Minimum Operating Temperature	-40°C
Standards/Approvals	JESD 201 Class 2 whisker test, RoHS, AEC-Q101, UL 94 V-0
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	35A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	260A
Maximum Forward Voltage Vf	0.88V

Key Features

Features low forward voltage drop for high efficiency operation.
Constructed in a TO-252 DPAK package allowing low profile mounting.
Ideal for automated assembly with a maximum peak lead-free solder temperature of 260 °C.
Operating temperature range from -40°C to 150°C, suitable for automotive applications.
Meets standards including JESD 201 Class 2 whisker test, RoHS, AEC-Q101, and UL 94 V-0.
Low power losses enhance performance in DC/DC converters and polarity protection circuits.
Trench MOS Schottky technology ensures reliable operation under high frequency conditions.

Product Description

Vishay V35PW10HM3/I is a high current density Schottky rectifier diode designed for surface mounting in electronic circuits. This device features a compact TO-252 (DPAK) package with low profile height of 1.4 mm, enabling efficient automated PCB assembly suited for industrial and automotive electronics.

The diode offers a maximum continuous forward current of 35 A and peak repetitive reverse voltage of 100 V, making it suitable for medium-power rectification tasks. Its low forward voltage of 0.88 V minimizes conduction losses and improves overall circuit efficiency.

Designed using trench MOS Schottky technology, the V35PW10HM3/I provides fast recovery and low power dissipation, critical for high-frequency DC/DC converters, freewheeling diode applications, and polarity protection. The device withstands peak surge currents up to 260 A and operates reliably over a wide temperature range from -40 to 150 °C.

Standards compliance includes JESD 201 Class 2 whisker test, RoHS, automotive AEC-Q101 qualification, and flammability UL 94 V-0 rating, ensuring robust performance and safety in demanding environments. Its automotive standard certification underscores suitability for vehicle electronics.

Low forward voltage drop enhances energy efficiency. DPAK package supports compact assembly and heat dissipation. Automotive AEC-Q101 certified for high reliability. Wide operating temperature range from -40°C to 150°C. High surge current capability of 260 A peak.

Meets environmental and safety standards such as RoHS and UL 94 V-0.

This rectifier diode is ideally used in industrial, automotive, power supply, and communications equipment where fast switching and low losses are critical. Its surface mount form factor accommodates modern compact PCBs with automated placement capabilities.
