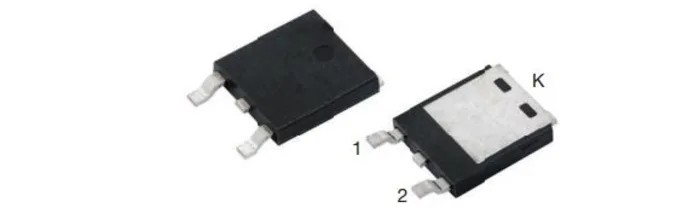

Vishay 100 V 35 A Surface Mount Rectifier & Schottky Diode TO-252 Package V35PW10HM3/I

Free Delivery in India | Lowest Global Shipping Charges

Vishay 100 V 35 A Surface Mount Rectifier & Schottky Diode TO-252 Package V35PW10HM3/I

Name: Vishay 100 V 35 A Surface Mount Rectifier & Schottky Diode TO-252 Package V35PW10HM3/I
Brand: Vishay
SKU: 290768
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.4mm
Length	9.4mm
Model	V35PW10HM3/I
Width	6.32mm
Mount Type	Surface
Series	V35PW10
Maximum Operating Temperature	150°C
Package Type	TO-252
Minimum Operating Temperature	-40°C
Standards/Approvals	JESD 201 Class 2 whisker test, RoHS, AEC-Q101, UL 94 V-0
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	35A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	260A
Maximum Forward Voltage Vf	0.88V

Key Features

The TO-252 package ensures a compact surface-mount form factor.
Low forward voltage drop of 0.88 V for efficient operation.
Maximum continuous forward current is 35 A for high current handling.
Peak reverse repetitive voltage of 100 V supports robust blocking capability.
Temperature range from -40°C to 150°C suitable for automotive and industrial applications.
Peak non-repetitive forward surge current up to 260 A for transient handling.
Advanced Trench MOS Schottky technology for low power losses.
Automotive standard AEC-Q101 qualified and RoHS compliant.

Product Description

Vishay V35PW10HM3/I is a high current density surface-mount rectifier and Schottky diode designed for demanding electronic applications requiring low forward voltage drop and reliable performance. Housed in the TO-252 package, this diode features a compact size with dimensions of 9.4 mm length, 6.32 mm width, and 1.4 mm height, making it ideal for automated placement in dense PCB designs.

It has a maximum continuous forward current rating of 35 A and a peak reverse repetitive voltage rating of 100 V, enabling it to handle significant power in low voltage, high frequency DC/DC converter circuits, freewheeling diode applications, and polarity protection functions. The device also withstands a peak non-repetitive surge current of 260 A, ensuring robustness against transient conditions.

Vishay's Trench MOS Schottky technology imparts a low forward voltage of 0.88 V, contributing to high efficiency and reduced power dissipation. The diode operates reliably across a wide temperature range from -40°C to 150°C, adhering to automotive grade standards, including AEC-Q101 qualification, JEDEC JESD 201 Class 2 whisker test, and RoHS directives.

Compact TO-252 surface mount package suitable for automated assembly. High current capability with a 35 A maximum continuous forward current. Low forward voltage drop at 0.88 V ensures energy efficiency. Reliable operation in automotive and industrial environments.

AEC-Q101 qualified for automotive applications. Resistant to temperature extremes from -40°C up to 150°C. Low power losses due to advanced trench MOS Schottky technology. Peak surge current handling up to 260 A protects against transient overloads.

RoHS compliant and meets UL 94 V-0 flammability rating.

This Vishay rectifier and Schottky diode is highly suitable for industrial, automotive, manufacturing, and power electronics applications, where efficiency, reliability, and compact design are critical. Browse more Vishay semiconductor devices and Schottky diodes at EnvMart for your electronic component needs.
