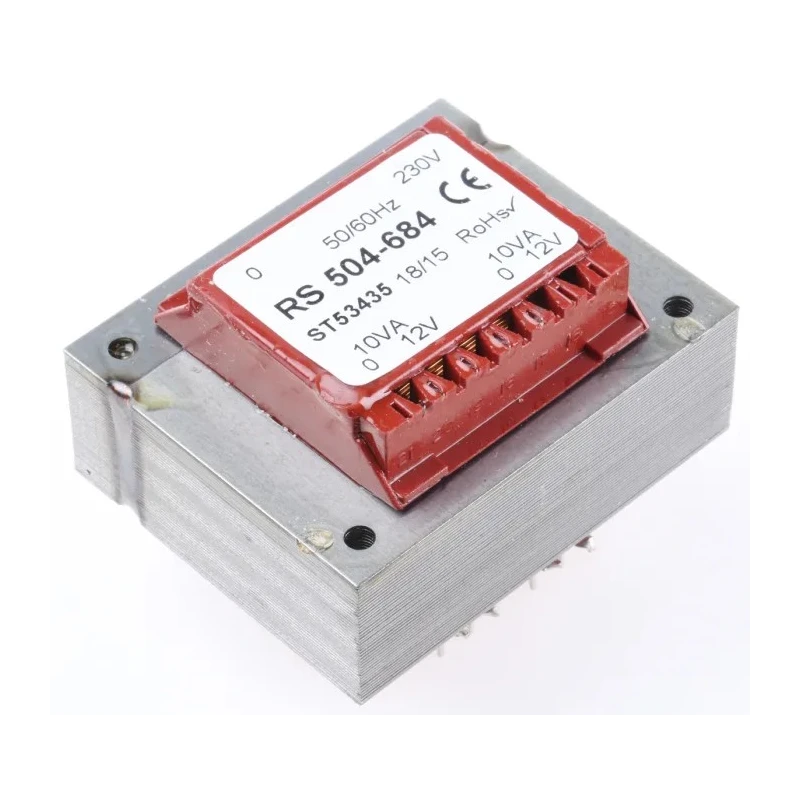

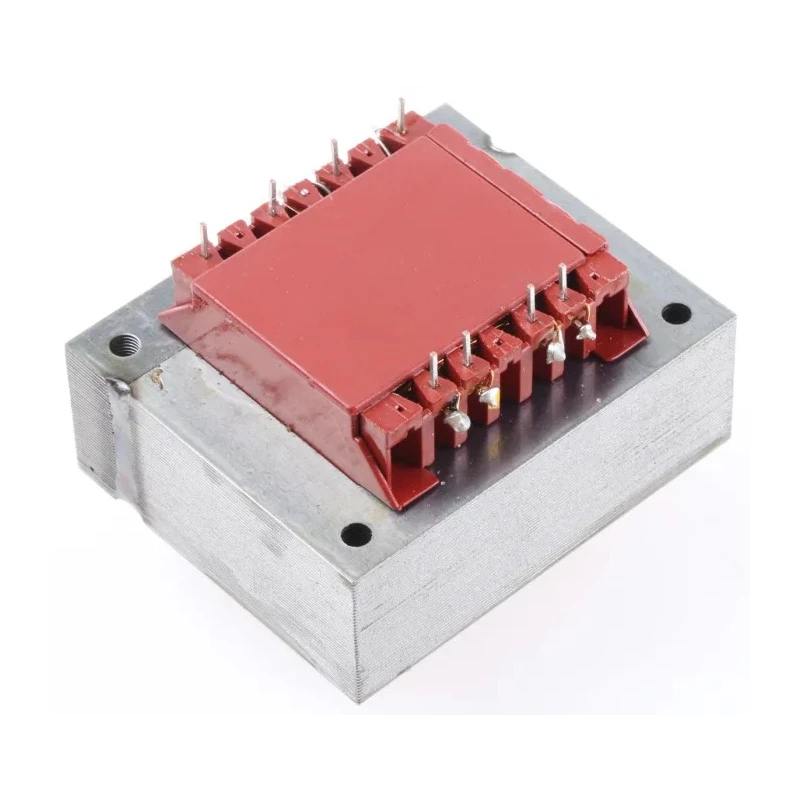

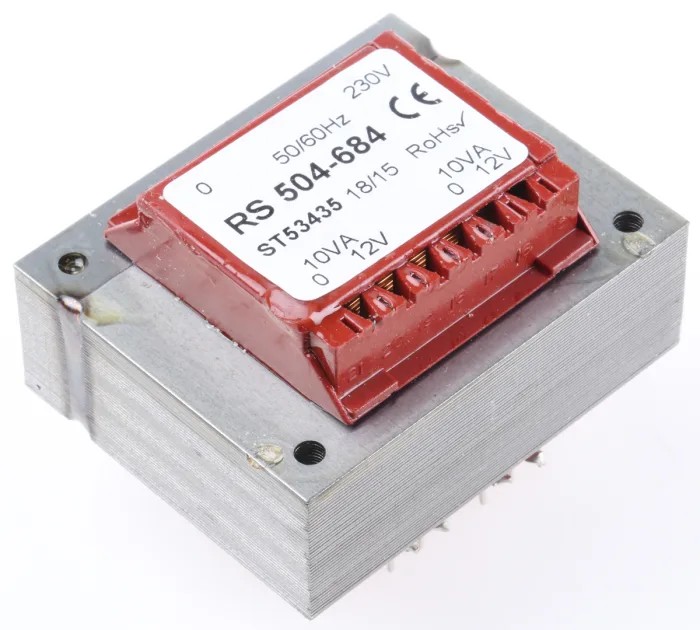

RS PRO 6 to 15 V ac 2 Output Through Hole PCB Transformer, 230 V ac Primary, 20VA, 60Hz, Thermal Fuse, RoHS, CE, IEC 504-684

RS PRO 504-684 is a high-quality 6 to 15 V ac 2 Output Through Hole PCB Transformer designed for industrial and electronic applications. It features a primary voltage of 230 V ac and a power rating of 20VA, providing efficient and reliable power conversion for PCB mounted circuits.

This transformer incorporates a thermal fuse in the primary winding, offering reliable overload and short circuit protection, enhancing safety in electrical systems. Constructed using UL94-V0 flame retardant materials, it ensures compliance with strict fire safety regulations.

The product features fully shrouded windings with extra pins to guarantee secure attachment to the PCB, preventing accidental disconnection or damage during operation. With an efficiency of 82%, it offers optimized power use, reducing energy losses in electronic assemblies.

Designed and tested in accordance with relevant international standards including AS/NZS 61558.1, RoHS, CE, and IEC/BS/EN 61558-2-6, this transformer guarantees compliance with safety and quality benchmarks. It operates reliably up to a maximum temperature of 130°C and covers mains frequencies between 50Hz and 60Hz.

The physical dimensions of the transformer are 60mm in length, 54mm in width, and 30.42mm in depth, with a gross weight of approximately 500g. The through hole mount type facilitates straightforward PCB installation for compact and efficient electronic designs.

Typical industrial applications include power supply modules, control equipment, and electronic devices in electronics manufacturing and testing labs. Its dual output configuration allows series or parallel connections to achieve required voltage and current combinations.

RS PRO 504-684 transformer is manufactured in Poland, ensuring high manufacturing standards and quality control. It is suitable for industrial, laboratory, HVAC, manufacturing, and other commercial electrical systems requiring secure and efficient power transformation.

Equipped with two independent output windings for versatile applications. Features a thermal fuse in the primary for overload and short circuit protection. Constructed with flame retardant materials compliant to UL94-V0 standards.

Fully shrouded windings with extra pins ensure secure and reliable PCB mounting. Efficiency rating of approximately 82% supports low power loss operations. Operates safely at maximum temperatures up to 130°C. Complies with standards AS/NZS 61558.1, RoHS, CE, IEC/BS/EN 61558-2-6, ensuring high safety and quality.

Designed for a frequency range of 50Hz to 60Hz, suitable for global mains supply compatibility. Explore a wide range of transformers and electronic components in the PCB Transformer category at EnvMart for your industrial and commercial needs.
