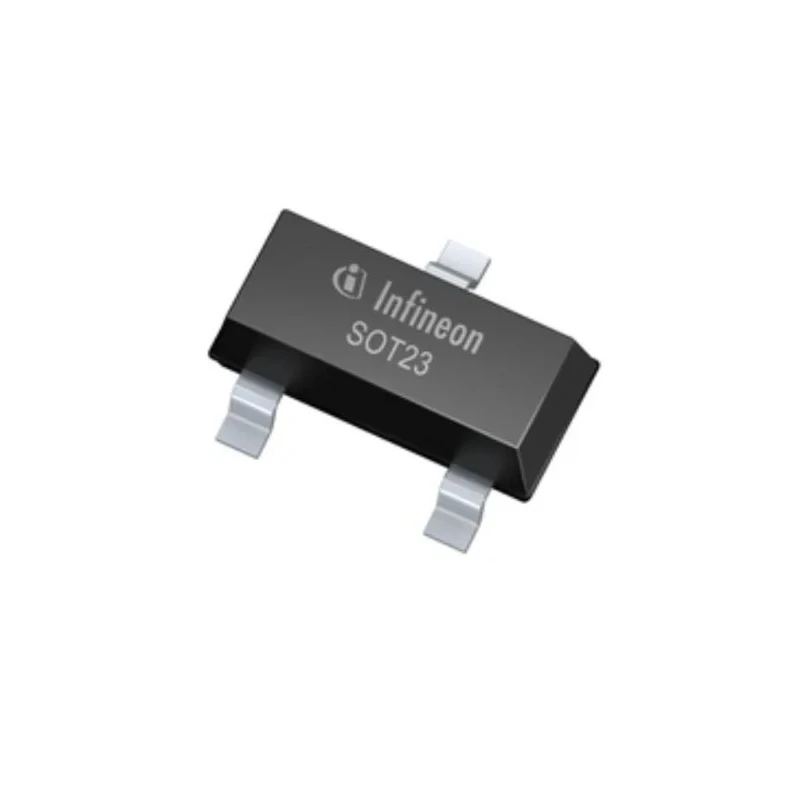

Infineon 40 V 250 mA Silicon Schottky Diode Surface Mount SOT-23 Package BAT6406E6327HTSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 40 V 250 mA Silicon Schottky Diode Surface Mount SOT-23 Package BAT6406E6327HTSA1

Name: Infineon 40 V 250 mA Silicon Schottky Diode Surface Mount SOT-23 Package BAT6406E6327HTSA1
Brand: Infineon
SKU: 288754
Price: 0.08 USD
Availability: InStock



Category Schottky Diode Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1mm
Length	2.9mm
Model	BAT6406E6327HTSA1
Width	1.3mm
Mount Type	Surface
Series	BAT64
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Standards/Approvals	AEC Q101, RoHS
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	250mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Common Anode
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	800mA
Maximum Forward Voltage Vf	750mV
Peak Reverse Recovery Time trr	5ns

Key Features

Efficient surface-mount diode with a compact SOT-23 package for tight board layouts.
Supports continuous forward current of 250 mA with low forward voltage drop.
Maximum forward voltage of 750 mV reduces conduction losses.
Fast switching capability with 5 ns peak reverse recovery time.
Peak reverse voltage of 40 V protects against moderate reverse stress.
Peak reverse current is limited to 200 μA to minimize leakage.
Supports transient surges up to 800 mA with high non-repetitive surge current rating.
Operating temperature range from -55°C to 150°C allows use in harsh environments.

Product Description

Infineon BAT6406E6327HTSA1 is a silicon Schottky diode designed for surface-mount applications requiring fast switching, low forward voltage drop, and efficient conduction. This diode comes in a 3-pin SOT-23 package optimized for automated PCB assembly and allows for tight board layouts in compact electronic devices.

The diode supports a maximum continuous forward current of 250 mA and a peak reverse voltage of 40 V, making it suitable for low-power rectification tasks in power rails and high-frequency DC/DC converters. A low forward voltage of 750 mV minimizes power loss and enhances overall efficiency in switching circuits.

Featuring a peak reverse recovery time of only 5 ns, this diode excels in high-speed applications. The peak reverse current of 200 μA ensures minimal leakage current under reverse bias conditions, which is critical for sensitive electronic components.

The diode is capable of withstanding transient surge currents up to 800 mA, providing reliability against sudden power spikes. It operates effectively within a wide temperature range from -55°C up to 150°C, suited for diverse environmental conditions including automotive control modules.

This product meets the AEC-Q101 automotive qualification standard, underscoring its suitability for use in automotive electronics. Its RoHS-compliant assembly guarantees adherence to strict environmental and safety regulations.

Efficient surface-mount diode in SOT-23 package. Supports 250 mA continuous forward current. Fast 5 ns reverse recovery time for high-speed operation. Low forward voltage drop of 750 mV reduces conduction losses. Peak reverse voltage of 40 V withstands moderate reverse stress.

High surge current capability of 800 mA for transient protection. Wide operating temperature range from -55°C to 150°C. Meets automotive-grade AEC-Q101 standard. Environmentally friendly RoHS-compliant design.

This diode is ideal for industrial electronics, automotive applications, power supply protection, and high-frequency rectification in compact consumer electronics. Explore more semiconductor components and Schottky Diodes in the efficient Infineon product line at EnvMart.
