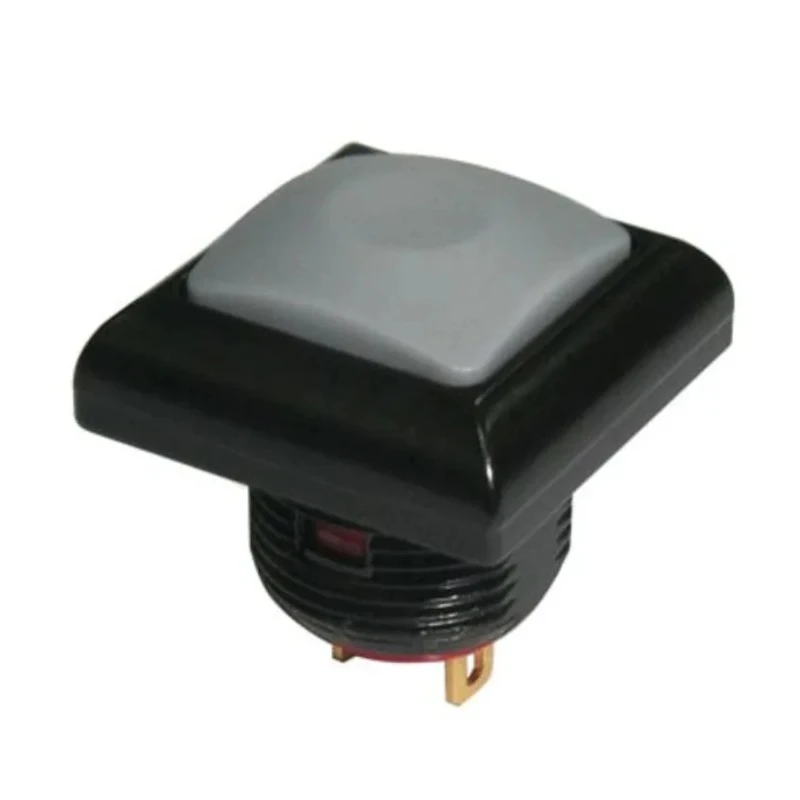

RS PRO Push Button Switch Momentary Panel Mount 13.6 mm Cutout SPST Orange LED IP67 36 V dc 250 V ac 209-9089

RS PRO 209-9089 is a sub-miniature, momentary push button switch ideal for panel mounting in industrial and electronic control applications. This switch features a 13.6 mm panel cutout size and a single-pole single-throw (SPST) contact configuration, making it suitable for simple on-off circuit control.

The actuator is a flat, square orange cap crafted from high-quality Polyamide 6/6, which offers durability and a professional finish. An integrated orange LED provides visual indication of the switch status. The switch is rated for 36 V dc and 250 V ac, supporting a maximum contact current of 125 mA, making it adaptable for a broad range of low voltage applications.

The device boasts a robust mechanical life of one million cycles and requires an operating force in the range of 2 to 5 Newtons. It is engineered for reliable performance under tough conditions with an operating temperature span from -35°C to 85°C.

Designed to meet IP67 standards, the RS PRO push button switch offers excellent sealing against dust and water ingress. The panel mounting hardware includes a retaining nut and O ring to ensure a secure and water-tight fit. Connections are made via solder lug terminals, facilitating stable and maintenance-friendly wiring.

Single-pole, single-throw momentary switch for simple circuit control. Durable Polyamide 6/6 flat orange actuator with integrated LED. 36 V dc and 250 V ac contact voltage ratings with 125 mA max current. Long mechanical life of 1,000,000 cycles for extended reliability.

IP67 rated for dust-tight and water-resistant applications. Wide temperature range suitability from -35°C to 85°C. Panel mount with retaining nut and O ring included for secure installation. Solder lug terminal type for reliable wiring connections.

This push button switch is widely used in test equipment, telecommunications, networking, and handheld appliances, offering an effective control interface where robust and compact switch solutions are required. Its compact size and high ingress protection make it suitable for demanding industrial and commercial environments.
