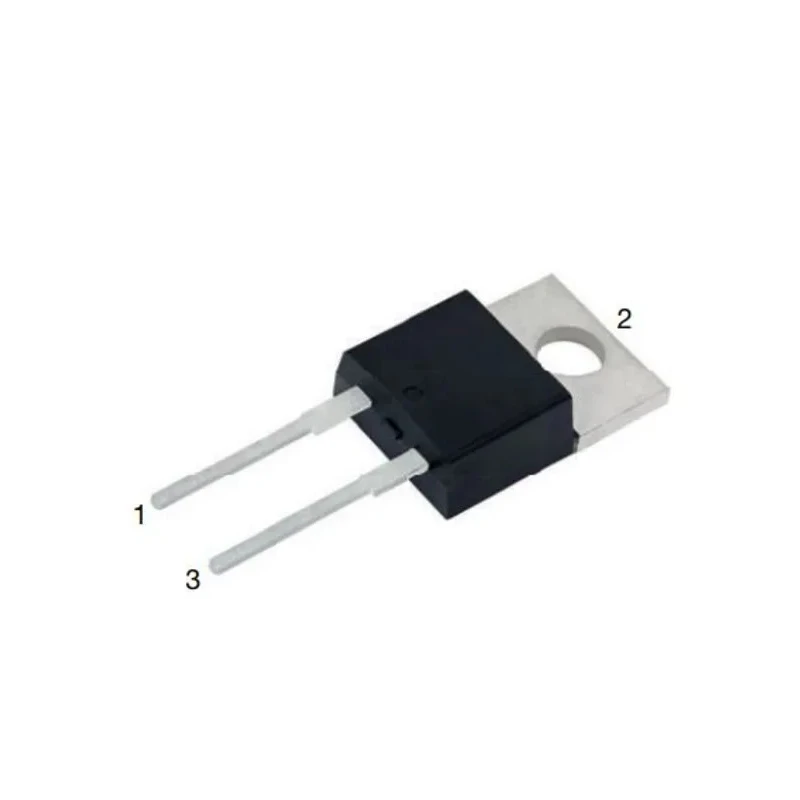

Vishay 600 V 60 A General Purpose Rectifier & Schottky Diode 3-Pin TO-247AD 2L VS-E5TX3006THN3

Vishay VS-E5TX3006THN3 Rectifier & Schottky Diode is a highly efficient semiconductor device designed for general purpose rectification in various power electronic applications. It features a robust 3-pin TO-247AD 2L through hole package optimized for thermal management and reliable mounting.

With a maximum continuous forward current rating of 60 A and a peak reverse repetitive voltage of 600 V, this diode provides dependable performance in demanding environments. Its low maximum forward voltage of 2.1 V reduces conduction losses, making it suitable for power supply rectification and DC/DC converter stages.

The device supports a wide operating temperature range from -55° to 175°C junction temperature, ensuring stable operation in automotive, industrial, and general electronic systems. The diode is capable of handling 310 A peak non-repetitive forward surge current, enhancing its durability during transient conditions.

This Vishay component is compliant with RoHS and automotive standard AEC-Q101, passing the JESD 201 Class 2 whisker test. Its hyperfast switching characteristics and optimized charge recovery contribute to improved efficiency in resonant converters and high-speed switching applications such as electric vehicle battery chargers and medium frequency hard switching converters.

This diode features a 3-pin TO-247AD 2L through hole package optimized for power applications. The device offers low forward voltage of 2.1 V to improve conduction efficiency. It can safely operate in temperatures ranging from -55° to 175°C junction temperature.

High surge current capability of 310 A peak non-repetitive forward surge current enhances robustness. The diode is certified RoHS-compliant and meets automotive standard AEC-Q101. Designed for high speed switching and low switching losses, ideal for resonant and soft switched converters.

Compact dimensions of 29.27 mm length, 10.51 mm height, and 4.65 mm width enable versatile mounting.

This rectifier diode is widely used in industrial, automotive, and power electronics manufacturing sectors. It is ideal for improving efficiency in on-board battery chargers for electric and hybrid electric vehicles, as well as other high-speed power conversion systems.
