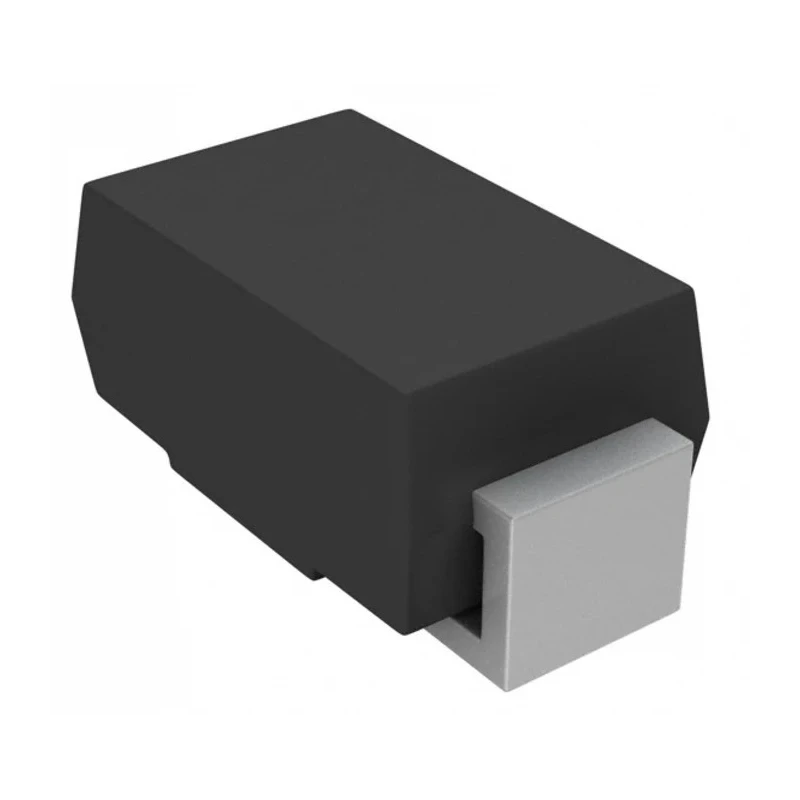

Vishay 1, 600 V Avalanche Zener Diode, Single Configuration, Surface Mount DO-214AC Package BYG10J-E3/TR

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1, 600 V Avalanche Zener Diode, Single Configuration, Surface Mount DO-214AC Package BYG10J-E3/TR

Name: Vishay 1, 600 V Avalanche Zener Diode, Single Configuration, Surface Mount DO-214AC Package BYG10J-E3/TR
Brand: Vishay
SKU: 399865
Price: 20.22 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.29mm
Length	5.28mm
Model	BYG10J-E3/TR
Mount Type	Surface
Series	BYG10J
Maximum Operating Temperature	150°C
Package Type	DO-214AC
Minimum Operating Temperature	-55°C
Standards/Approvals	AEC-Q101, RoHS, UL 94 V-0
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Diode Configuration	Single
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	600V
Zener Type	Avalanche

Key Features

Single diode configuration optimized for avalanche operation.
Surface mount DO-214AC package with 2 pins for easy PCB placement.
Maximum reverse leakage current of 1 microampere enhances performance.
Operates reliably between -55°C to 150°C junction temperature.
Glass passivated pellet chip junction ensures long-term stability.
Halogen-free and RoHS compliant for environmental safety.
Low profile package suitable for automated assembly processes.
Meets automotive standard AEC-Q101 and is UL 94 V-0 rated.

Product Description

Vishay BYG10J-E3/TR Avalanche Zener Diode is a high voltage discrete semiconductor designed for robust avalanche operation. Housed in a compact DO-214AC surface mount package, it supports a nominal zener voltage of 600 V and a forward current rating of 1.5 A, making it suitable for demanding electronics environments.

This single diode configuration features a glass passivated pellet chip junction, ensuring exceptional stability and long service life. Its halogen-free construction aligns with modern environmental compliance requirements such as RoHS.

The device operates reliably over an extended temperature range from -55°C to 150°C, meeting automotive requirements under the AEC-Q101 certification, as well as industrial flammability standards with UL 94 V-0 rating. The low profile package facilitates automated PCB assembly and space-constrained applications.

Its minimal maximum reverse leakage current of 1 microampere reduces power losses and improves circuit efficiency, an essential attribute in power supplies, DC/DC converters, inverters, and telecommunication equipment.

Manufactured in China, this Vishay diode integrates robust quality assurance and is an excellent choice for electronic component designs requiring reliable high voltage avalanche protection.

Single diode avalanche configuration. DO-214AC surface mount package with 2 pins. 600 V nominal zener voltage specification. 1.5 A forward current rating. Maximum reverse leakage current of 1 μA. Operating temperature range of -55°C to 150°C.

Glass passivated pellet chip junction for stability. Meets AEC-Q101 automotive standard and UL 94 V-0. Halogen free and RoHS compliant. Low profile for automated PCB assembly.
