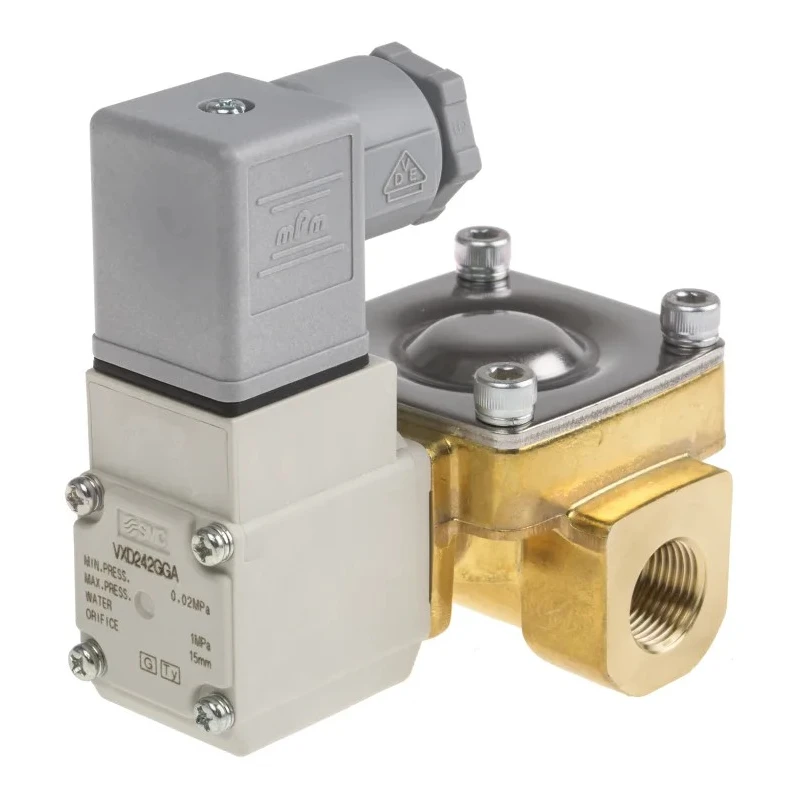

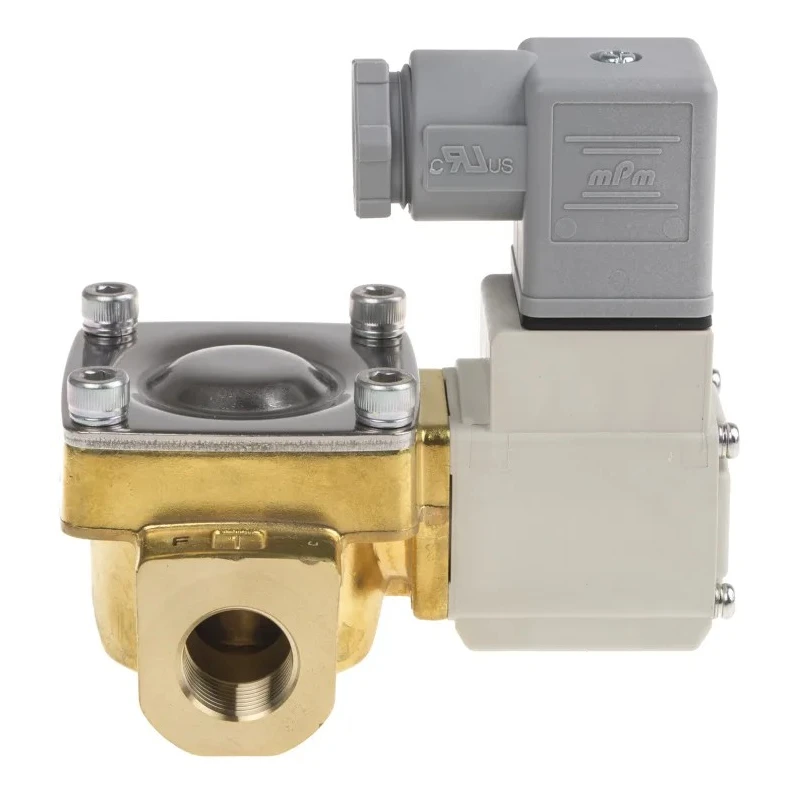

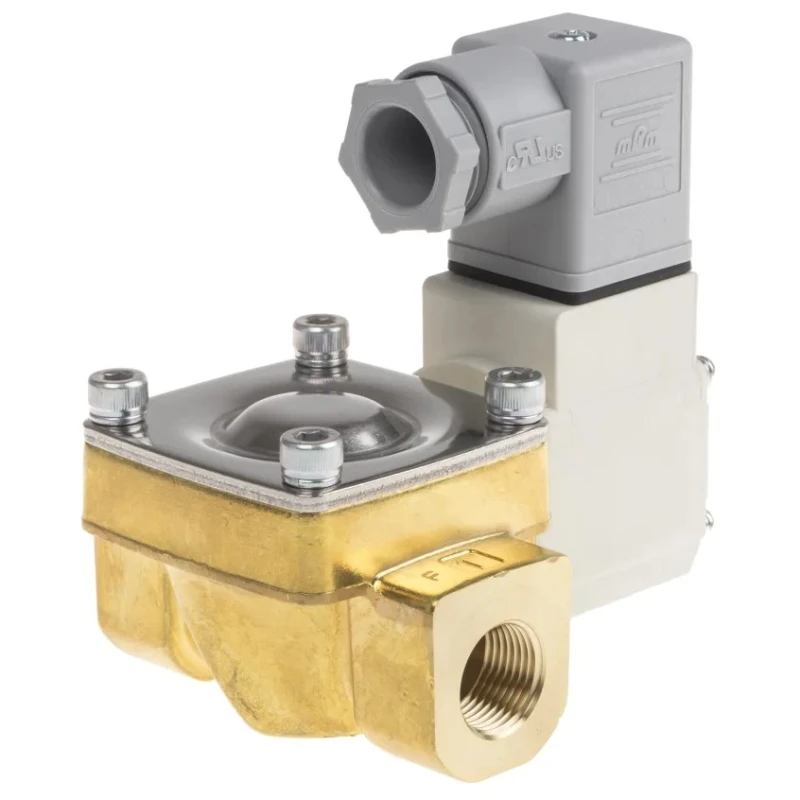

SMC Pneumatic Solenoid Valve, Brass Body, 24V DC, 1.5 MPa, G 3/8 Port, VXD242GGA

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve, Brass Body, 24V DC, 1.5 MPa, G 3/8 Port, VXD242GGA



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Brass
Maximum Operating Pressure	1.5 Mpa
Height	103.5mm
Length	96.5mm
Model	VXD242GGA
Mount Type	Bracket
Series	VXD
Number Of Ports	2
Maximum Operating Temperature	60°C
Thread Size	3/8 in
Port Type	One-Touch Fitting
Number of Positions	2
Port Size	G 3/8
Seal Material	Ethylene Propylene Diene Monomer, Fluorelastomer, Nitrile Rubber (NBR)
Minimum Operating Temperature	-20°C
Actuation Type	Solenoid
Standards/Approvals	RoHS
Valve Function	NO, NC

Key Features

The valve features a 3/8 inch G port size with one-touch fitting for easy installation.
It supports a maximum operating pressure of 1.5 MPa, ideal for various fluid power systems.
Designed with ethylene propylene diene monomer, fluorelastomer, and nitrile rubber seals for durability.
Operates across a temperature range of -20°C to 60°C, supporting NO and NC valve functions.
Compact dimensions of 103.5 mm height and 96.5 mm length reduce installation space.
Bracket mounted with 2 ports and 2 positions offers flexible pneumatic control.
The solenoid actuation ensures precise valve operation with reduced power consumption.
Complies with RoHS standards, ensuring environmental and safety compliance.

Product Description

SMC VXD242GGA Pneumatic Solenoid Valve is a high-quality pilot operated diaphragm 2-port valve designed for industrial pneumatic applications requiring precise control of fluids such as air, water, and oils. Powered at 24V DC, it offers efficient energy consumption and quieter operation compared to earlier models.

The valve has a durable brass body and features ethylene propylene diene monomer, fluorelastomer, and nitrile rubber (NBR) seals that provide excellent chemical resistance and long service life. Its compact size of 103.5 mm in height and 96.5 mm in length, along with bracket mounting, facilitates easy installation in confined spaces.

Operating safely within a temperature range of -20°C to 60°C and a maximum pressure of 1.5 MPa, this solenoid valve supports both normally open (NO) and normally closed (NC) valve functions. The one-touch fitting port type and 3/8 inch thread size enable quick connection and integration into fluid power systems.

This series of valves has been redesigned to reduce buzzing and operational noise. It features improved off response time even with high viscosity fluids and enhanced armature durability. The valve is RoHS compliant, ensuring adherence to environmental standards.

Commonly used in industrial, hydraulic, pneumatic, and manufacturing sectors, the SMC VXD242GGA valve is suitable for pneumatically controlled valves for air, heated water, high temperature oils, and general fluid control. Its robust design and high reliability make it a preferred choice for fluid power and process control applications.

The valve features a 3/8 inch G port size with one-touch fitting for easy installation. Supports maximum pressure of 1.5 MPa for diverse pneumatic systems. Seal materials include EPDM, fluorelastomer, and NBR for chemical resistance.

Operates efficiently at 24V DC with low power consumption. Compact dimensions with bracket mount suitable for confined spaces. Complies with RoHS environmental standards. Supports normally open and normally closed functions with 2 ports and 2 positions.

Designed for air, water, oil, and heated fluid applications. Explore more pneumatic valve solutions at EnvMart to find compatible parts and accessories for your industrial applications.
