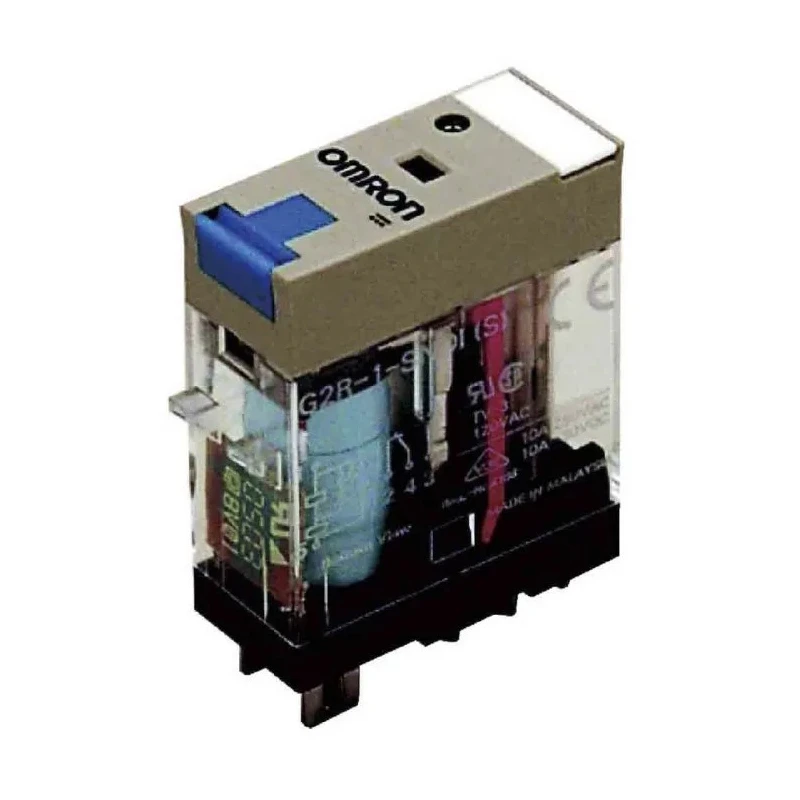

Omron DIN Rail Non-Latching Relay, 24V Coil Voltage, 10A Switching Current, SPDT Contact Configuration G2R-1-SNDI-AP3 DC24(S)

The Omron G2R-1-SNDI-AP3 DC24(S) is a high-quality DIN rail non-latching relay designed for industrial automation and control panel applications. It features a 24V coil and supports a switching current of 10A. This relay is engineered for reliable operations with a single-pole double-throw (SPDT) contact configuration, making it suitable for controlling AC and DC loads up to 380V AC and 125V DC respectively.

With silver alloy contacts, the relay ensures reduced contact wear and enhanced durability for frequent switching tasks. The coil consumes a low power of 530 mW, and its resistance is specified at 1113 Ω, confirming efficient and stable coil current characteristics. The relay's plug-in terminal type simplifies wiring and replacement during maintenance.

Designed for robust performance, this relay operates efficiently within a wide temperature range from -40°C to 70°C, accommodating harsh industrial environments. Its compact form factor with dimensions of 35.5 mm height, 29 mm length, and 13 mm width enables seamless integration into control cabinets and automation panels.

Applications include motor control interlocks in automation panels, control logic in industrial machine cabinets, signal switching in electrical distribution racks, and power control for auxiliary equipment. The DIN rail mount ensures ease of installation with rapid replacement capability.

Operates from a 24V coil voltage consuming only 530 mW of power. Single-pole double-throw (SPDT) contact arrangement for single-circuit changeover switching. Silver alloy contacts ensure durability and reduced wear for frequent switching.

Rated switching current of 10A suitable for moderate load handling. Switching capabilities up to 380V AC and 125V DC support diverse power applications. Compact DIN rail mounting with plug-in terminal type for easy installation and maintenance.

Wide operating temperature range from -40°C to 70°C for diverse environments. Coil resistance precisely measured at 1113 Ω ensuring stable operation. Compact dimensions approximately 35.5mm (H) x 29mm (L) x 13mm (W) fit standard control panels.

This relay is RoHS compliant, supporting environmentally responsible manufacturing standards. It is ideal for industrial, automation, electrical distribution, and HVAC control systems.
