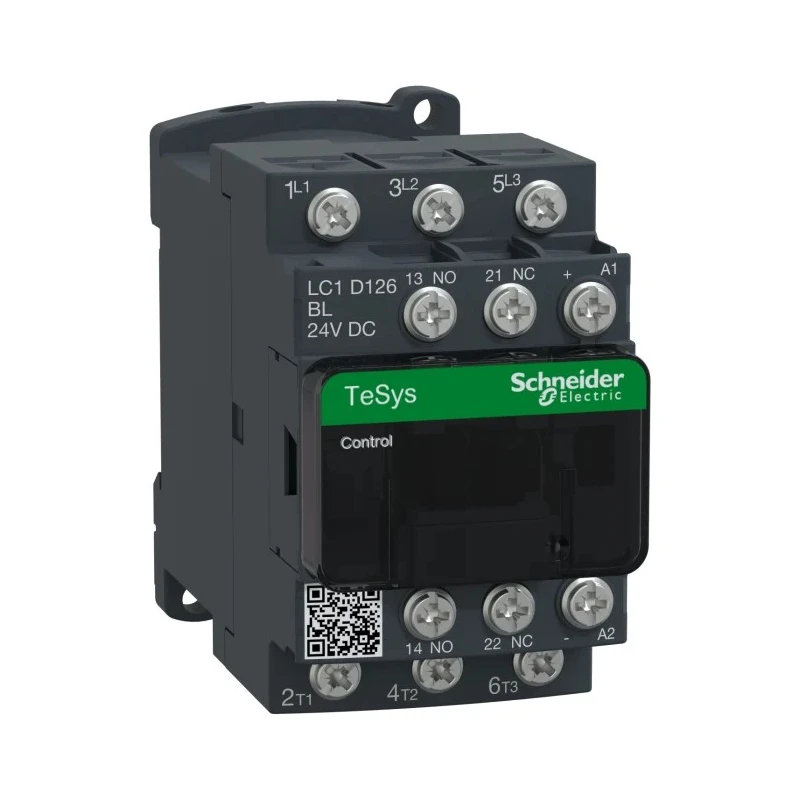

Schneider Electric LC1D Contactor 24V DC Coil 3-Pole 25A 7.5kW Motor Control LC1D126BL
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D126BL |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | EAC, CSA, CCC, UL, RoHS, IEC |
| Contact Voltage | 300, 690V dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
Key Features
- Compact design with dimensions 77mm length, 45mm width, and 95mm depth.
- 3 normally open poles and 2 auxiliary contacts (1 NO and 1 NC) for versatile control.
- Screw terminals provide secure and reliable wire connections.
- Operates at 24V DC coil voltage with 300V DC and 690V AC contact voltage ratings.
- Long mechanical lifespan of 30 million cycles for durability in heavy-duty applications.
- Wide operating temperature range from -5°C to 60°C for harsh environment suitability.
- Diode suppressor protects circuits from voltage spikes during switching.
- Designed for motor control, lighting circuits, pumps, elevators, and conveyors.
Product Description
Schneider Electric LC1D126BL Contactor is a high-performance component designed for industrial automation and motor control applications. This contactor operates with a 24V DC coil and features a 3-pole configuration rated at 25A, capable of switching 7.5 kW resistive and motor loads effectively. It is part of the robust TeSys D series, offering reliable switching for electric motors and resistive loads such as heating and lighting.
The device is engineered with screw terminals for secure wiring and provides two auxiliary contacts (1 Normally Open and 1 Normally Closed) to support additional control functionalities. It supports contact voltages of 300V DC and 690V AC, ensuring compatibility with a broad range of electrical systems and applications.
With dimensions compactly housed in 77mm length, 45mm width, and 95mm depth, it is suitable for installation inside machine enclosures and distribution boards. The robust mechanical construction guarantees an outstanding lifespan of up to 30 million mechanical cycles, underlining its durability in demanding industrial environments.
Temperature tolerance ranges from -5°C to +60°C, allowing safe operation in harsh manufacturing and heavy plant conditions. Its diode suppressor feature protects electrical circuits from voltage spikes during switching, which is critical for controlling inductive motors.
Compact dimensions simplify integration into control panels. Long mechanical lifespan minimizes maintenance needs. Diode suppressor improves circuit durability against voltage spikes. Versatile auxiliary contacts expand control capabilities.
Complies with EAC, CSA, CCC, UL, RoHS, and IEC standards. Designed with environmentally responsible materials free from PVC, mercury, or heavy metals.
This Contactor is ideal for industrial applications including electric motor control, lighting circuits, pumps, elevators, and conveyor systems. Its French manufacturing origin assures quality and reliability consistent with Schneider Electric’s rigorous standards.
Explore the full range of Automation & Control Gear products at EnvMart for comprehensive solutions in industrial and manufacturing automation systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for the Schneider Electric LC1D126BL contactor is 24V DC.
This model has a maximum contact voltage rating of 300V DC and 690V AC.
The contactor is rated for a maximum current of 25A.
The dimensions of this contactor are 77mm in length, 45mm in width, and 95mm in depth.
This model features a 3-pole configuration.
It is designed for motor control and can also handle resistive loads such as heating and lighting.
The operational temperature range is from -5°C to +60°C.
This contactor includes two auxiliary contacts, with one normally open (NO) and one normally closed (NC).
It is designed for DIN rail mounting.
The Schneider Electric LC1D126BL has a mechanical lifespan of up to 30 million cycles.
It complies with EAC, CSA, CCC, UL, RoHS, and IEC standards.
This model uses lug ring terminals for secure wire connections.
