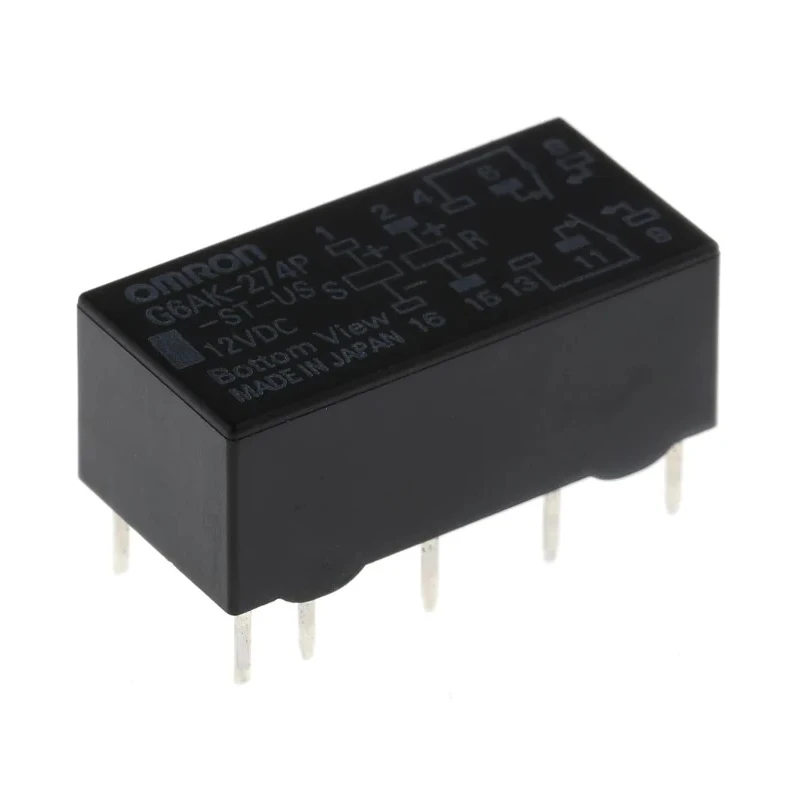

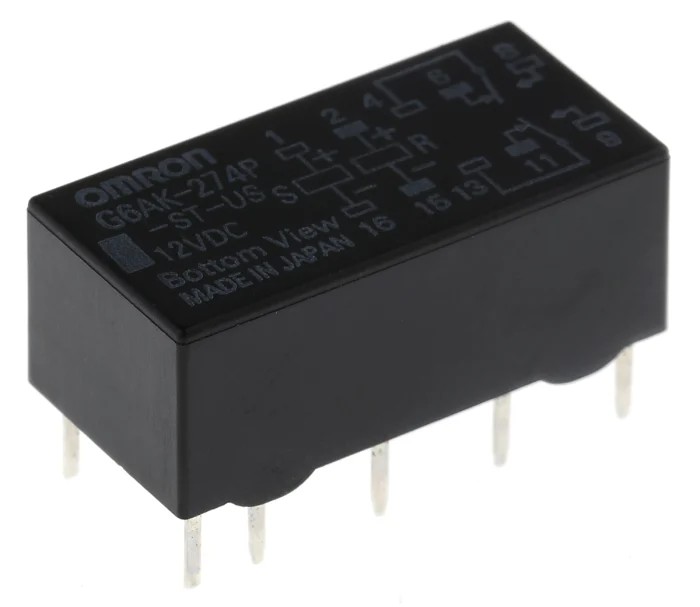

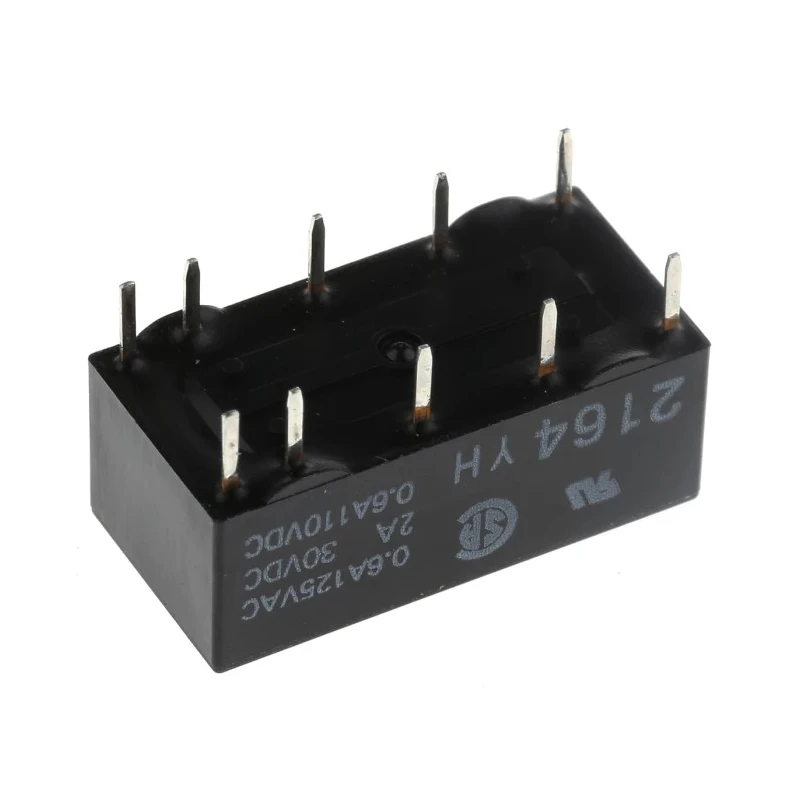

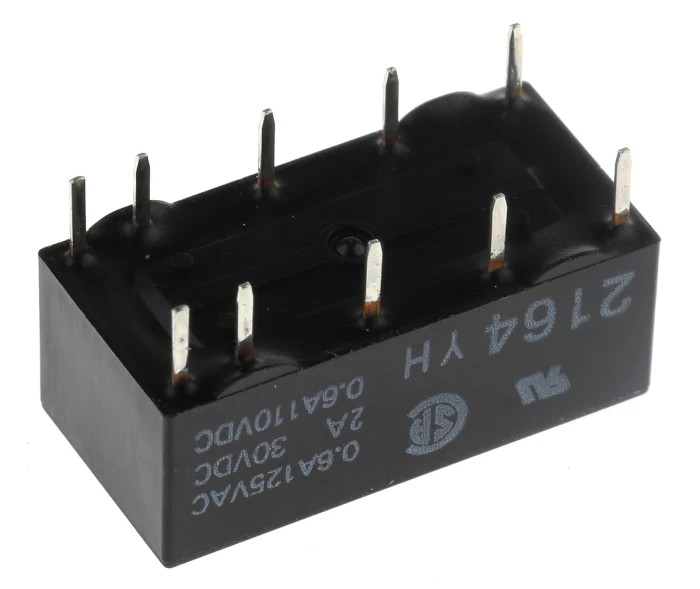

Omron Signal Relay PCB Mount DPDT 12V DC Coil 500mA Switching Current G6AK-274P-ST-US 12DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8.4mm |
| Length | 20.2mm |
| Model | G6AK-274P-ST-US 12DC |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6A |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 500mA |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 800Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 180mW |
| Switching Power | 200mW |
Key Features
- Features a double-pole double-throw (DPDT) contact configuration.
- Operates with a coil voltage of 12V DC ensuring reliable switching.
- Switching current capacity of 500mA for effective signal control.
- Gold plated contacts provide enhanced conductivity and corrosion resistance.
- Suitable for operating temperature range from -40°C to 70°C.
- High switching AC voltage rating of 250V and DC voltage rating of 220V.
- Coil resistance is 800Ω with coil power consumption of 180mW.
- Designed for PCB mounting with solder terminal type for secure connection.
Product Description
Omron G6AK-274P-ST-US 12DC Signal Relay is a high-quality PCB mount Signal Relay with a coil voltage of 12V DC and a double-pole double-throw (DPDT) contact configuration. It offers a switching current of 500mA making it ideal for precise signal switching applications.
This relay features a compact design with dimensions of 20.2mm in length, 10.1mm in width, and 8.4mm in height which supports efficient PCB assembly in telecommunications and control equipment. The relay's gold plated contacts ensure excellent conductivity and resistance to corrosion, enhancing reliability in demanding environments.
Designed to operate reliably between -40°C and 70°C, it supports switching voltages of up to 250V AC and 220V DC. With a coil resistance of 800Ω and coil power of 180mW, it efficiently manages power consumption for circuit control.
Its fully sealed structure reduces magnetic leakage and is suited for industrial and telecommunications equipment requiring durable and dependable switching solutions. The solder terminal type mount provides secure and stable connections on PCBs.
This model is compliant with RoHS standards and is manufactured in Japan, underlining its quality and environmental compliance. It belongs to the G6A series known for robust performance and industry approvals including UL and CSA.
Double-pole double-throw (DPDT) contact configuration. 12V DC coil voltage with 500mA switching current capacity. Compact PCB mount relay with solder terminals. Gold plated contacts for high conductivity and durability. Operating temperature range: -40°C to 70°C.
Switching voltages: 250V AC max, 220V DC max. Coil resistance: 800Ω, Coil power: 180mW. Fully sealed design with low magnetic leakage. Compliant with RoHS environmental standards. Manufactured in Japan with UL and CSA approvals.
This relay is suitable for industrial automation, telecommunications, signal conditioning, and control circuit applications. Explore more electronic components and relays from Omron on EnvMart to support your manufacturing and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
This model has a maximum switching current capacity of 500mA.
The relay measures 20.2mm in length, 10.1mm in width, and 8.4mm in height.
It features a double-pole double-throw (DPDT) contact configuration.
The operating temperature range is from -40°C to 70°C.
This relay uses solder terminals for secure PCB mounting.
It can switch a maximum of 250V AC and 220V DC.
The coil resistance is 800Ω.
The coil power consumption is 180mW.
Yes, it is compliant with RoHS standards and has UL and CSA approvals.
The contacts are made of gold plated material for enhanced conductivity and corrosion resistance.
This relay is suitable for applications in industrial automation, telecommunications, signal conditioning, and control circuits.
