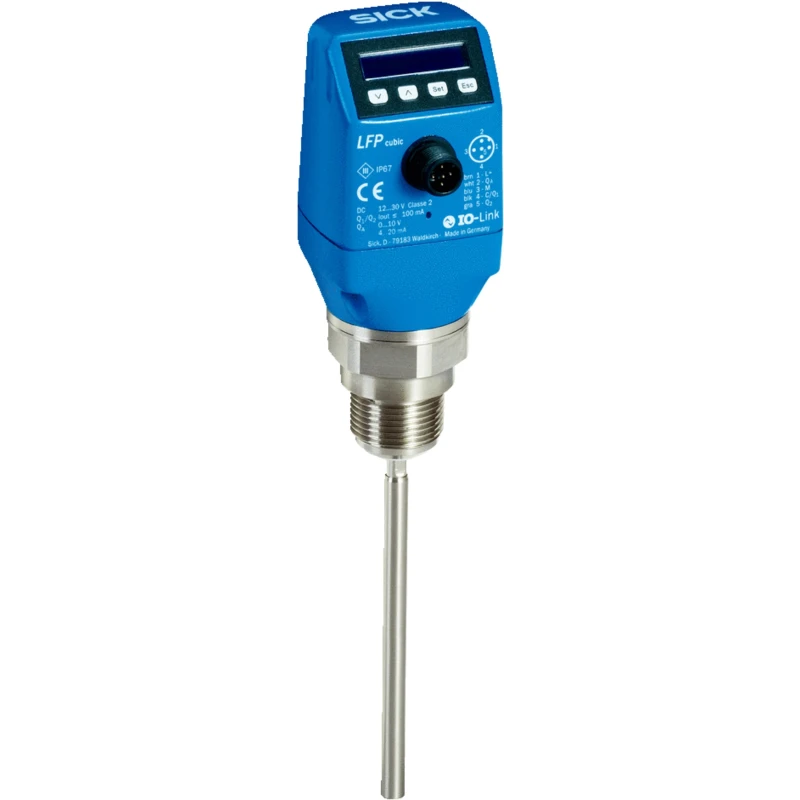

SICK LFP Cubic Series Guided Radar Level Radar Threaded Vertical Mount with Polytetrafluoroethylene Gasket and LFP0500-A5NMC
Specifications
| Country of Origin | Germany |
|---|---|
| Display | 3 in 1: combines display |
| Brand | SICK |
| Model | LFP0500-A5NMC |
| Cable Length | 3.3m |
| Mount Type | Threaded, Vertical |
| Housing Material | Plastic Polybutylene Terephthalate |
| Series | LFP Cubic |
| Maximum Operating Temperature | 100°C |
| Maximum Pressure | 10bar |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 100mA |
| Device Type | Guided Radar |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, UL Listed |
| Gasket Material | Polytetrafluoroethylene |
| 3 in 1 | combines display, analog output (according to NAMUR NE 43), and binary output |
| Cost savings due to multiple output signals | One system for both point level and continuous level measurement |
Key Features
- Designed for continuous level measurement of liquids using TDR technology.
- Modular rod probes can be cut from 200 mm to 2,000 mm; cable probe up to 4,000 mm.
- Operates at process temperatures up to 100 °C and pressures up to 10 bar.
- High IP67 rating with rotatable housing and remote amplifier for flexibility.
- Equipped with IO-Link 1.1 interface for advanced communication and calibration.
- Constructed with polytetrafluoroethylene gasket and polybutylene terephthalate housing.
- CE certified and UL listed for industrial safety and standards compliance.
- Suitable for industrial applications including coolants, lubricants, and hydraulics.
Product Description
The SICK LFP Cubic Series Guided Radar Level Radar model LFP0500-A5NMC is an advanced level sensor designed for precise liquid level monitoring in diverse industrial applications. It employs Time Domain Reflectometry (TDR) technology to emit electromagnetic pulses and measure the time of flight for accurate level detection. The sensor's rugged design includes a threaded, vertical mount configuration with a polytetrafluoroethylene (PTFE) gasket and housing constructed from durable polybutylene terephthalate plastic, ensuring excellent chemical and mechanical resistance.
The modular probe system allows users to interchange rod probes cut to lengths between 200 mm and 2,000 mm or opt for a cable probe up to 4,000 mm, providing high installation flexibility. It operates reliably under process temperatures up to 100 °C and pressures up to 10 bar. The device combines multiple outputs - display, analog output compliant with NAMUR NE 43 standard, and binary output - offering versatile interfacing options suited to any application.
With an IP67 enclosure rating and a rotatable housing, the LFP Cubic sensor is engineered for robust protection against challenging environments while allowing convenient adjustment. The integrated IO-Link 1.1 interface supports advanced process communication and enables calibration-free commissioning, significantly reducing setup time and maintenance costs.
The sensor excels in applications such as monitoring coolants, lubricants, detergents, hydraulic fluids, and other process liquids, even in deposit-forming or foaming conditions. It finds use in machine tooling, cleaning machines, automobile assembly tanks, and hydraulic systems, ensuring high availability with immunity to mutual device interference when deployed in parallel installations.
The product is CE certified and UL listed, manufactured to high-quality German standards, ensuring reliability and compliance in demanding industrial environments. Continuous liquid level measurement using Guided Wave Radar (TDR) technology.
Modular rod or cable probes allowing length customization for tailored installations. High tolerance to process conditions: temperature up to 100 °C, pressure up to 10 bar. Integrated 3-in-1 output system with display, analog, and binary signals.
IP67 rated housing with rotatable enclosure and remote amplifier capability. IO-Link 1.1 interface enabling modern communication and easy calibration. Resistant materials: PTFE gasket and polybutylene terephthalate housing for chemical robustness.
CE and UL certifications confirm safety and industry compliance.
Choose the SICK LFP Cubic Series Guided Radar Level Radar for precise, maintenance-free level measurement optimized for demanding industrial use. Browse more Level Sensors and automation gear on EnvMart for comprehensive process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a measurement range with rod probes customizable from 200 mm to 2,000 mm and a cable probe length of up to 4,000 mm.
It operates at process temperatures up to 100 °C and pressures up to 10 bar.
This unit is equipped with an IO-Link 1.1 interface for advanced communication and calibration.
The housing is made from polybutylene terephthalate plastic, and it features a polytetrafluoroethylene gasket.
It combines a display, analog output compliant with NAMUR NE 43, and a binary output for versatile interfacing options.
It has an IP67 rating, ensuring protection against dust and water ingress.
It features a threaded vertical mount configuration for installation flexibility.
The minimum operating temperature is -20 °C.
Yes, it is CE certified and UL listed, ensuring compliance with safety standards.
It is suitable for monitoring liquids such as coolants, lubricants, and hydraulic fluids in various industrial applications.
The maximum current is 100 mA and the maximum DC voltage is 30V.
The modular probe system allows users to customize probe lengths for tailored installations, enhancing flexibility in various applications.
