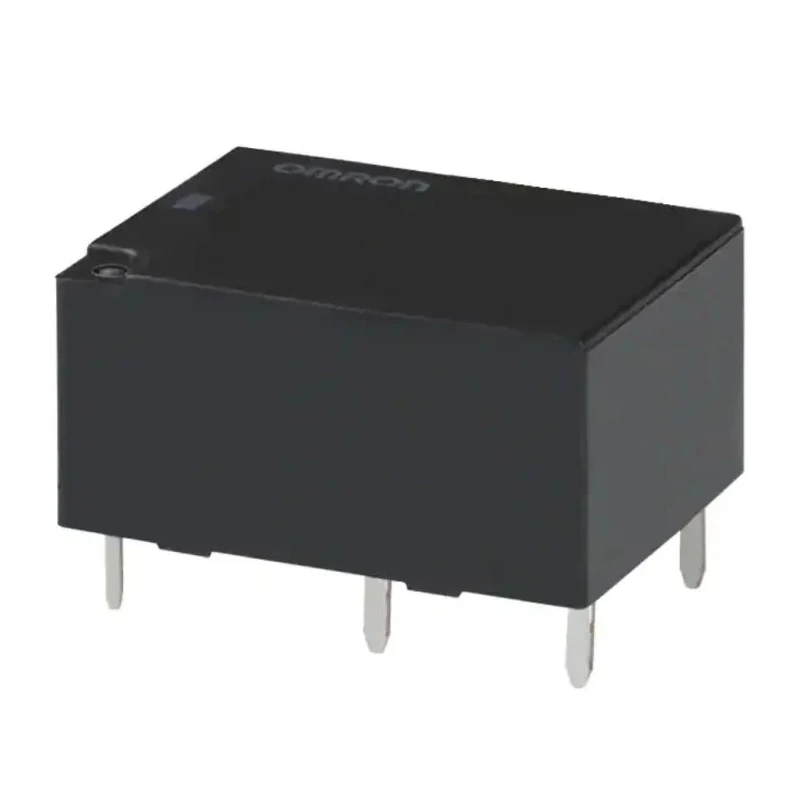

Omron PCB Power Relay 12V DC Coil 8A Switching Current SPST G6C-2114P-US DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 20mm |
| Model | G6C-2114P-US DC12 |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6C |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
Key Features
- The relay is compact with dimensions 20mm length, 15mm width, and 10mm height.
- Equipped with silver alloy contacts ensuring low contact resistance of 30mΩ.
- Operates reliably from -25°C to a maximum of 70°C ambient temperature.
- Coil resistance measures 720Ω with power consumption of 200mW.
- Designed for PCB mounting with PCB pin terminals for easy integration.
- Supports switching DC voltage up to 125V and AC voltage up to 380V.
- The relay is fully sealed complying with RoHS standards for environmental safety.
Product Description
Omron G6C-2114P-US DC12 PCB Power Relay is a miniature, high-capacity component designed for power switching applications in electrical and automation systems. Featuring a 12V DC coil voltage and SPST contact configuration, this relay delivers reliable switching performance with an 8A current rating. It is especially suitable for compact control equipment where space-saving design and low power consumption are critical.
The relay dimensions are 20mm length, 15mm width, and 10mm height, making it ideal for PCB mounting applications. The coil resistance is 720Ω with a coil power consumption of 200mW, enabling efficient operation. With a wide operating temperature range from -25°C to +70°C, it is capable of functioning in various environmental conditions.
The contacts are made from silver alloy and feature a low contact resistance of 30mΩ, ensuring minimal signal loss and high durability. It supports switching voltages up to 125V DC and 380V AC, suitable for diverse industrial and commercial uses. This fully sealed relay complies with RoHS directives, guaranteeing environmental friendliness and reliability in manufacturing and applications.
Applications of the Omron G6C series relay include power switching for control systems, automated machinery, and other industrial electronics requiring compact, efficient relay solutions. The PCB pin terminal design ensures straightforward assembly and maintenance in electronic circuits.
The G6C-2114P-US DC12 model meets rigorous standards, including RoHS compliance, making it a suitable choice for industry professionals seeking durable power relays. The relay is compact with dimensions 20mm length, 15mm width, and 10mm height.
Equipped with silver alloy contacts ensuring low contact resistance of 30mΩ. Operates reliably from -25°C to a maximum of 70°C ambient temperature. Coil resistance measures 720Ω with power consumption of 200mW. Designed for PCB mounting with PCB pin terminals for easy integration.
Supports switching DC voltage up to 125V and AC voltage up to 380V. The relay is fully sealed complying with RoHS standards for environmental safety. Explore more Power Relays and related products at EnvMart for high-performance industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 8A.
This model measures 20mm in length, 15mm in width, and 10mm in height.
The coil voltage for this relay is 12V DC.
It features an SPST (Single Pole Single Throw) contact configuration.
The relay supports switching DC voltage up to 125V and AC voltage up to 380V.
The coil resistance measures 720Ω.
The power consumption of this relay is 200mW.
It operates reliably in temperatures ranging from -25°C to 70°C.
The contacts are made from silver alloy, ensuring low contact resistance.
Yes, it complies with RoHS standards for environmental safety.
This model is designed for PCB mounting with PCB pin terminals for easy integration.
It is suitable for power switching in control systems, automated machinery, and other industrial electronics.
