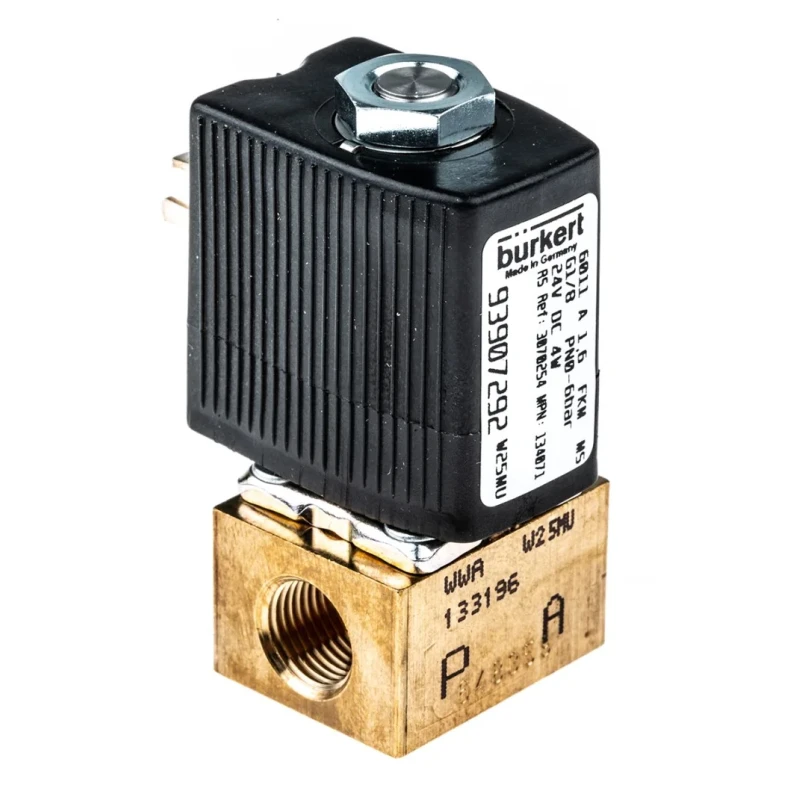

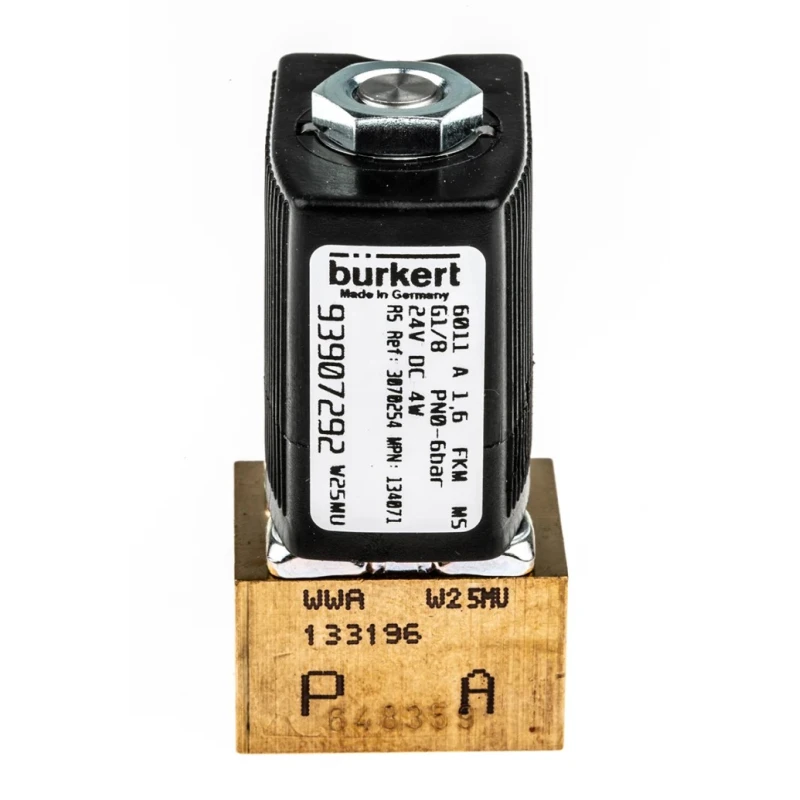

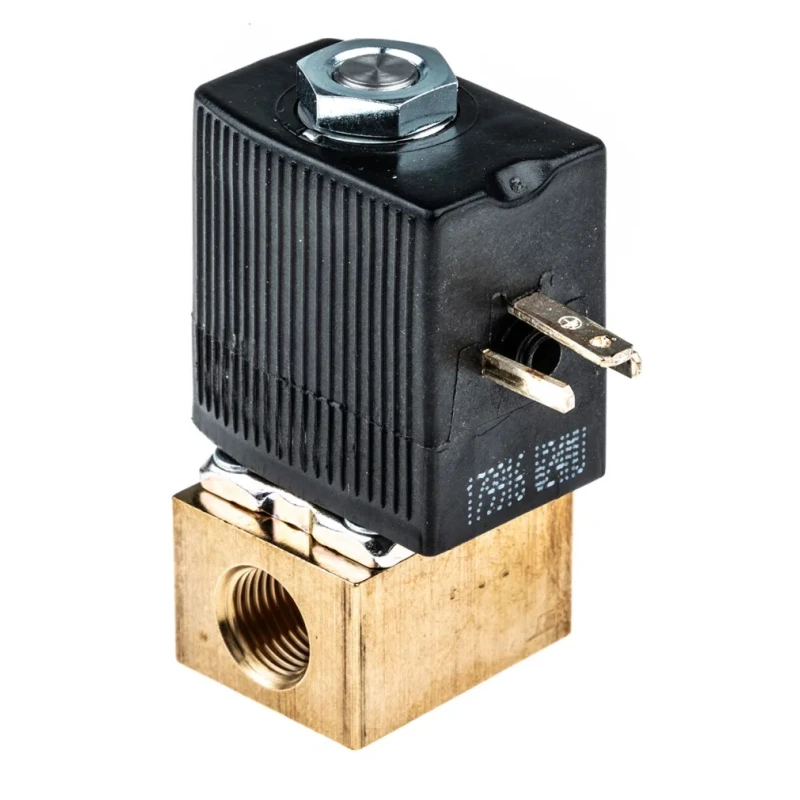

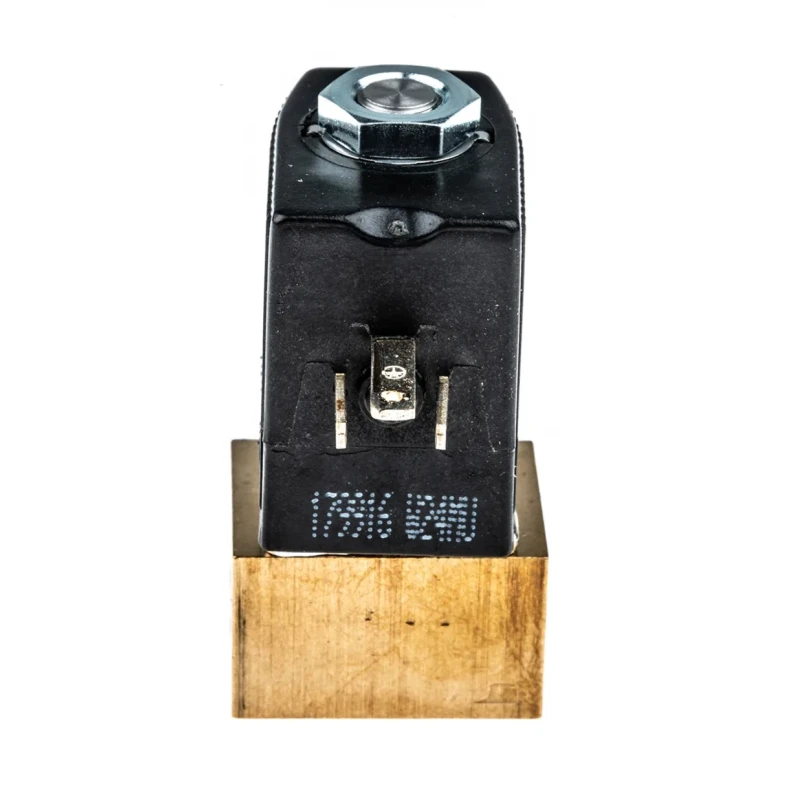

RS PRO Solenoid Valve 2 Port NC Brass Body 24V DC 3.18 mm Orifice Diameter 1.6mm Series 6011 134071

Burkert 134071 solenoid valve is a high-quality, 2-port, normally closed valve designed with a brass body and 3.18 mm inlet and outlet ports. It operates at a supply voltage of 24V DC and features an orifice diameter of 1.6 mm, making it suitable for precise flow control.

The valve employs a direct-acting mechanism with compact dimensions (DN2.4) and is sealed with durable FPM material to ensure excellent pressure resistance and leak tightness. The stopper and plunger guide tube are welded for enhanced mechanical robustness.

Designed for industrial fluid power applications, it is ideal for use with water, neutral fluids, air, natural gases, oil, and fats without additives. The valve supports a maximum operating pressure of 6 bar and functions efficiently in temperatures ranging from -10°C to 55°C.

The polyamide coil is replaceable without removing the valve and can be locked at multiple orientations as required. The maximum opening and closing times of 10 ms and 15 ms, respectively, enable quick response in fluid control systems.

Installation options include simple flange or manifold mounting and quick coupling via push-in fittings for hose connections, enhancing flexibility in various industrial settings. The valve features a direct-acting, compact design with an orifice diameter of 1.6 mm.

It uses high-quality FPM seals for enhanced pressure resistance and leak tightness. The valve is suitable for water, neutral fluids, air, natural gases, oil, and fats without additives. The operating temperature range is from -10°C to 55°C with a maximum pressure of 6 bar.

Its coil is polyamide and can be easily replaced or adjusted in situ. Maximum opening and closing times of 10 ms and 15 ms, respectively, enable fast operation. Multiple installation options including flange, manifold, and push-in hose fittings.

This solenoid valve is manufactured in Germany and is ideal for industrial, laboratory, HVAC, manufacturing, and water treatment applications. Explore more industrial Solenoid Valves and related products available at EnvMart.
