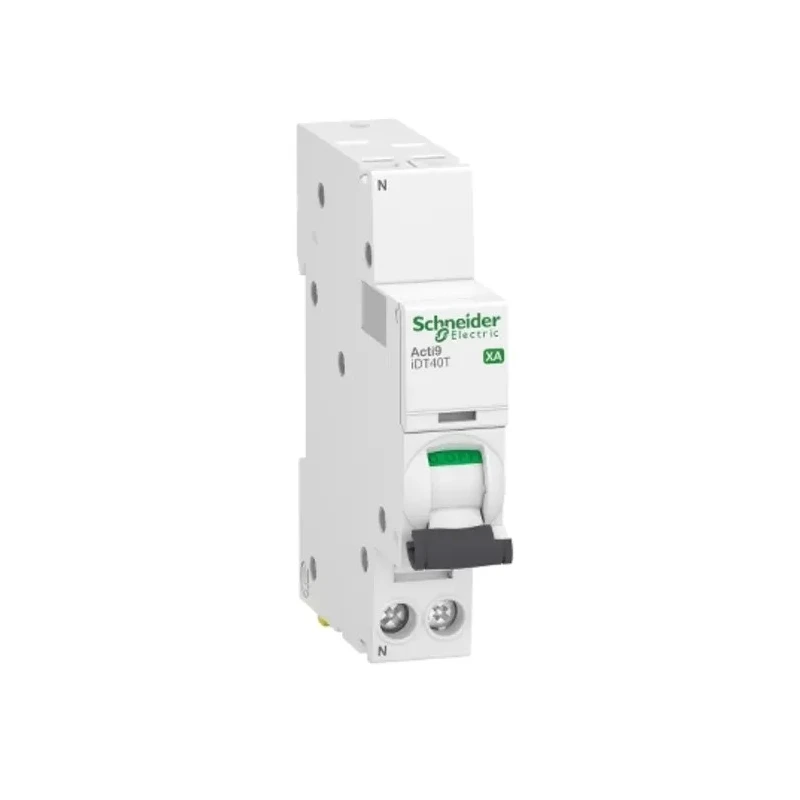

Schneider Electric Acti9 Acti9 iDT40T XA Miniature Circuit Breaker, 1-Pole, 40A, Type C, 230V AC, 4500 A Breaking A9PA2640

Schneider Electric A9PA2640 Miniature Circuit Breaker (MCB) is a high-quality electrical protection device designed for industrial, commercial, and residential electrical assemblies. Featuring 1 pole and 40A current rating, it offers precise circuit protection with Type C tripping characteristics suitable for general-purpose overload and short circuit protection.

This MCB operates at a rated AC voltage of 230V and offers a breaking capacity of 4500 A, protecting installations from high fault currents. It is engineered with a thermal magnetic tripping mechanism that combines thermal trip for overloads and magnetic trip for short circuits, ensuring dependable performance and safety.

The compact design includes a 74mm depth, 18mm width, and 85mm height for easy installation on standard DIN rails. The toggle switch actuator provides clear ON/OFF positions and trip indication, enabling quick fault identification and reset.

Certified according to EN/IEC 60898-1 and EN/IEC 60947-2 standards, this breaker ensures compliance with international safety and performance requirements. Its electrical durability is approximately 20,000 operation cycles, extending device lifespan during frequent switching.

Suitable for installation in electrical panels for various applications including industrial automation systems, HVAC equipment, manufacturing units, and commercial electrical distribution, this MCB provides reliable protection and operational safety.

The unit is padlockable to prevent accidental switching during maintenance, enhancing operator safety. Relative humidity tolerance reaches 95% at 55 °C, with an operating ambient temperature range of -25 to +70 °C, allowing robust operation under varied environmental conditions.

Thermal magnetic tripping mechanism for effective overload and short circuit protection. Compact form factor with DIN rail mounting facilitates easy integration in panels. Compliant with IEC and EN electrical safety standards for circuit breakers.

Toggle switch with trip indication for intuitive operation and troubleshooting. Padlock facility to lock the breaker in the OFF position. High breaking capacity of 4500 Amperes for enhanced safety. Durable design rated for 20,000 mechanical operating cycles.

Wide ambient temperature operating range supports diverse applications.
