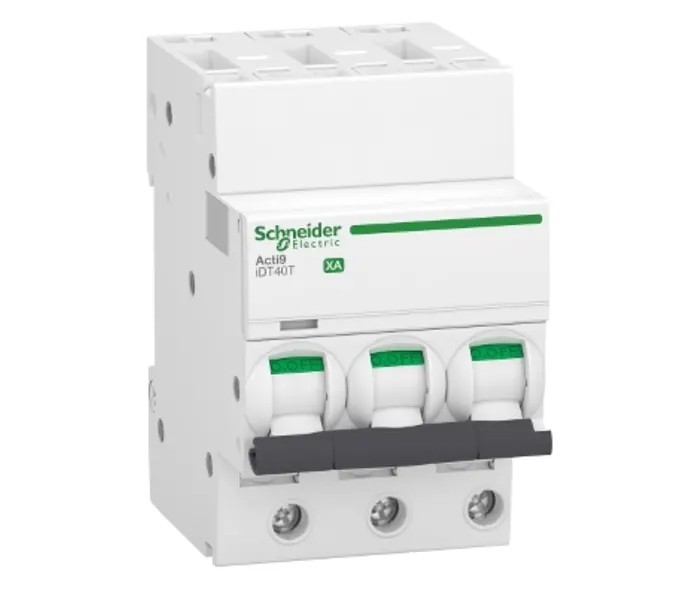

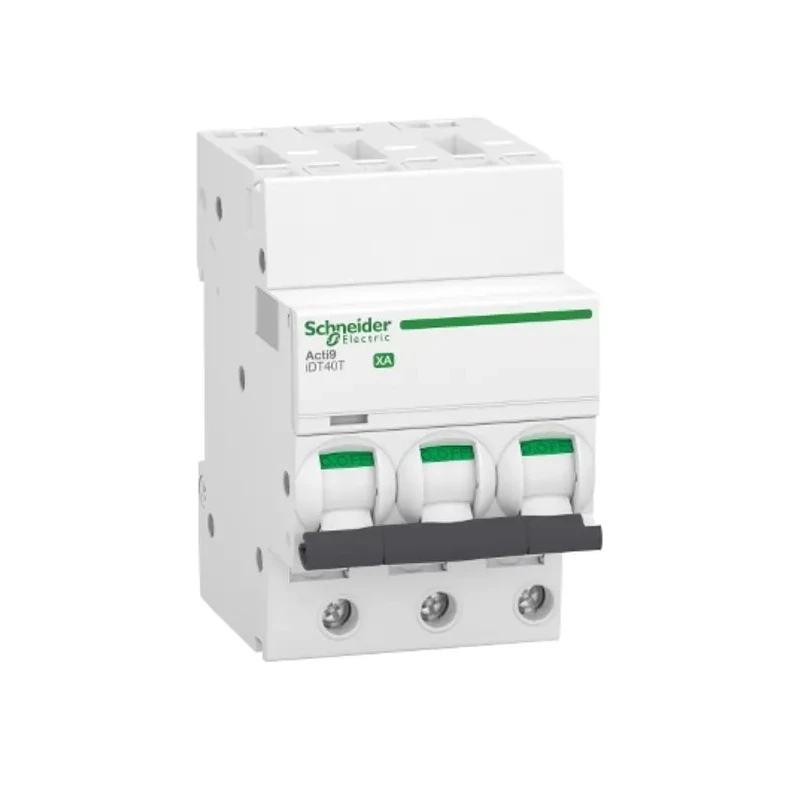

Schneider Electric Acti9 iDT40T XA 3-Pole 40A Type C Miniature Circuit Breaker 400V AC 4500A Breaking Capacity A9PA2340
Specifications
| Country of Origin | Hungary |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9PA2340 |
| Depth | 74mm |
| IP Rating | IP40, IP20 |
| Width | 54mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | Acti9 iDT40T XA |
| Breaking Capacity | 4500A |
| Number of Poles | 3 |
| Standards/Approvals | EN/IEC 60947-2, EN/IEC 60898-1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Operates at 400V AC rated voltage for versatile installation needs.
- Features thermal magnetic trip mechanism for enhanced circuit protection.
- Has a breaking capacity of 4500 A ensuring strong short-circuit interruption.
- Designed for DIN rail mounting with IP40 and IP20 ingress protection ratings.
- Compact form factor with dimensions of 85mm height, 54mm width, and 74mm depth.
- Toggle switch actuator provides easy reset and clear ON/OFF indication.
- Complies with EN/IEC 60947-2 and EN/IEC 60898-1 standards for quality assurance.
- Electrical durability rated for 20,000 operations for long service life.
Product Description
Schneider Electric A9PA2340 Acti9 iDT40T XA Miniature Circuit Breaker is a high-performance 3-pole protection device rated at 40A with Type C tripping characteristics, operating at 400V AC. This miniature circuit breaker is engineered to provide excellent protection against overloads and short circuits in industrial, commercial, and residential electrical installations.
The breaker uses a thermal magnetic trip mechanism enabling rapid response to fault conditions to protect circuits and connected equipment efficiently. Its breaking capacity of 4500 A ensures robust interruption capability, safeguarding sensitive appliances and wiring.
Designed for DIN rail mounting, it features a compact design with dimensions 85mm in height, 54mm width, and 74mm depth, fitting standard electrical distribution boards. The toggle switch actuator offers clear ON/OFF status with easy reset functionality, making maintenance and operation user-friendly.
This device complies with international standards EN/IEC 60947-2 and EN/IEC 60898-1, ensuring reliable and safe operation under demanding conditions. It offers electrical durability rated at 20,000 cycles and can withstand impulse voltages up to 4 kV, suitable for commercial and industrial electrical environments.
The IP40 and IP20 ingress protection ratings guard internal components from dust and accidental contact. It withstands ambient temperatures from -25 to 70 degrees Celsius, enhancing reliability across diverse climates. Additionally, it features padlockable functionality to prevent unauthorized operation, improving electrical safety management.
Schneider Electric's Acti9 iDT40T XA series aligns with premium quality standards, combining advanced protection, durability, and ease of use for circuit protection applications in electrical distribution systems.
Category: Miniature Circuit Breaker for Electrical Applications, suitable for industrial, commercial, and residential use. Explore related Schneider Electric electrical protection products and enhance your electrical safety solutions at EnvMart.
Operates at 400V AC rated voltage for versatile installation needs. Features thermal magnetic trip mechanism for enhanced circuit protection. Has a breaking capacity of 4500 A ensuring strong short-circuit interruption. Designed for DIN rail mounting with IP40 and IP20 ingress protection ratings.
Compact form factor with dimensions of 85mm height, 54mm width, and 74mm depth. Toggle switch actuator provides easy reset and clear ON/OFF indication. Complies with EN/IEC 60947-2 and EN/IEC 60898-1 standards for quality assurance.
Electrical durability rated for 20,000 operations for long service life. Resistant to impulse withstand voltage of 4 kV, suitable for industrial environments. Ambient operating temperature range from -25 to 70 °C facilitates varied installation conditions.
Padlockable design for extra user safety and tamper prevention.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this circuit breaker is 4500 A, ensuring strong short-circuit interruption.
It operates at a rated voltage of 400V AC, making it suitable for various installation needs.
This model has dimensions of 85mm in height, 54mm in width, and 74mm in depth.
It features a thermal magnetic trip mechanism for enhanced circuit protection against overloads and short circuits.
It is designed for DIN rail mounting, allowing for easy installation in standard electrical distribution boards.
The breaker has IP40 and IP20 ingress protection ratings, guarding internal components from dust and accidental contact.
It can operate in ambient temperatures ranging from -25 to 70 degrees Celsius, suitable for diverse climates.
This circuit breaker complies with EN/IEC 60947-2 and EN/IEC 60898-1 standards for quality assurance.
It is a 3-pole circuit breaker, providing multi-phase protection.
It is rated for electrical durability of 20,000 operations, ensuring a long service life.
It features a toggle switch actuator, which provides clear ON/OFF indication and easy reset functionality.
It can withstand impulse voltages up to 4 kV, making it suitable for industrial environments.
