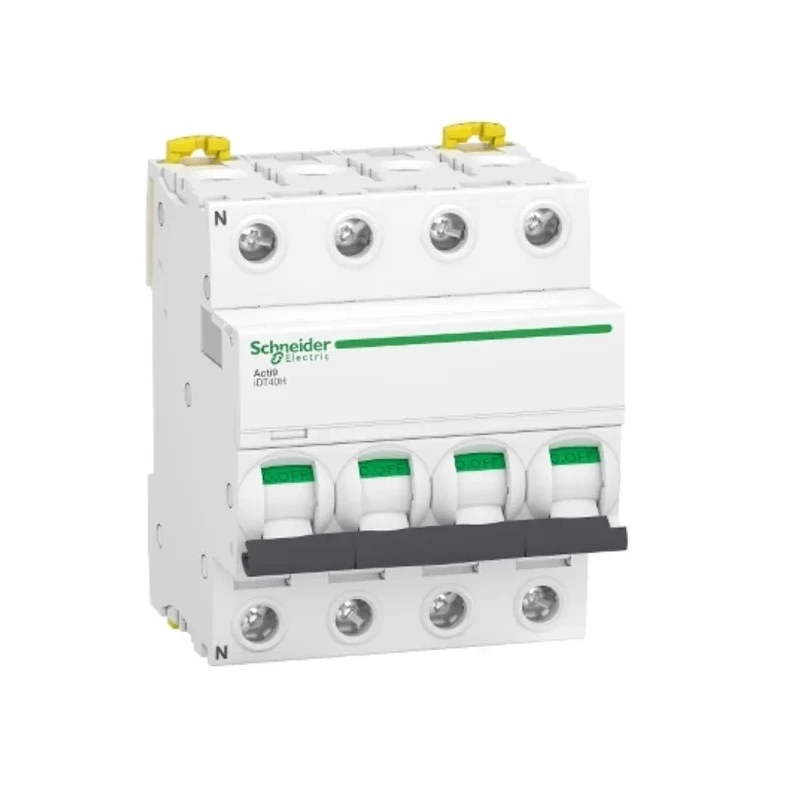

Schneider Electric Acti9 Acti9 iDT40H Miniature Circuit Breaker, 3+N-Pole, 40A, Type C, 400V AC, 10000A Breaking A9P26440

Schneider Electric A9P26440 Miniature Circuit Breaker from the Acti9 iDT40H series delivers advanced thermal-magnetic circuit protection for industrial and commercial electrical systems. Designed for 3+N-pole configurations, this breaker supports a nominal current of 40A and provides robust short-circuit breaking capacity of 10,000 amperes at 400V AC, ensuring high reliability and safety.

Featuring a clip-on mounting system and a toggle switch actuator with clear ON/OFF and trip indication, it enables quick operation and easy status identification. With IP20 ingress protection rating, it is suitable for indoor electrical panels. This device conforms to international standards EN/IEC 60947-2 and EN/IEC 60898-1, guaranteeing compliance and quality assurance.

The tripping mechanism utilizes thermal-magnetic technology, efficiently responding to overloads and short-circuits, protecting downstream equipment. Its compact design with dimensions of 85mm (height), 74mm (depth), and 72mm (width) allows for efficient space utilization within distribution boards. Operating ambient temperatures range from -25°C to 70°C, providing versatility across various environments.

Additional features include the ability to padlock the breaker, preventing unauthorized toggling, and an electrical durability rating of 20,000 cycles for extended operational life. Originating from France, this high-performance Miniature Circuit Breaker is ideal for electrical, industrial, HVAC, and commercial applications requiring reliable circuit interruption and protection.

Equipped with thermal-magnetic trip unit technology for precise tripping. Clip-on mount type enables easy installation and maintenance. Toggle switch reset actuator with ON/OFF and trip indicators. Complies with EN/IEC 60947-2 and EN/IEC 60898-1 standards.

Rated current of 40 amperes with Type C tripping characteristic. IP20 protection rating suitable for indoor environments. Compact dimensions: 85mm height, 74mm depth, 72mm width. Padlockable feature enhances safety by preventing unauthorized operation.

Operating ambient temperature range from -25°C to 70°C for versatile applications. Electrical durability of 20,000 cycles ensures long service life. Explore the comprehensive range of Schneider Electric circuit breakers and accessories at EnvMart for your industrial and commercial electrical protection needs.
