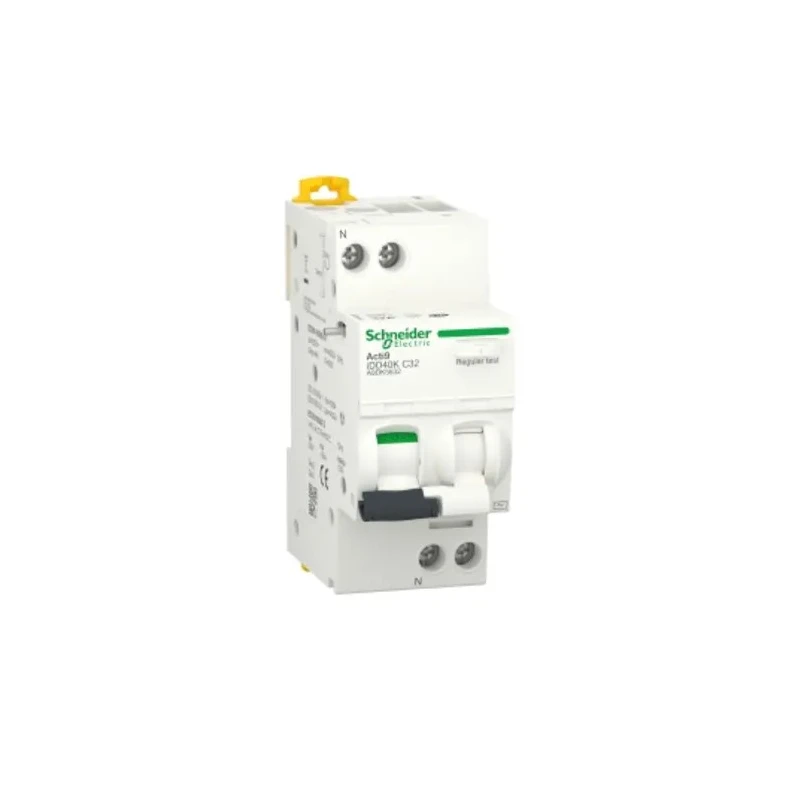

Schneider Electric Residual Current Circuit Breaker with Overload Protection 32A, 1-Pole, 300 mA Trip A9DK5632
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DK5632 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | Acti9 iDD40K |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 60947-2, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- Features thermal-magnetic trip mechanism ensuring effective circuit protection.
- Rated for 230V AC operation with Type C tripping characteristics.
- Compact DIN rail mount design with tunnel terminal type for easy installation.
- Breaking capacity of 4.5 kA suitable for residential and distribution applications.
- Compliant with EN/IEC 60947-2 and RoHS standards for safety and environmental compliance.
- Includes toggle switch reset actuator with ON/OFF and trip indicator functionality.
- Suitable for ambient temperatures from -5 to 60 °C and relative humidity up to 95% at 55 °C.
- Padlockable feature for additional security and prevention of unauthorized operation.
Product Description
Schneider Electric A9DK5632 Residual Current Circuit Breaker with Overload Protection is designed for precise overcurrent and earth leakage protection in electrical distribution and residential systems. It integrates a thermal-magnetic tripping mechanism providing instantaneous response to overloads and short circuits while ensuring delayed earth leakage protection with a 300 mA trip sensitivity.
This 1-pole breaker is rated at 32A and operates at a nominal voltage of 230V AC. The unit features a Type C tripping characteristic suitable for general-purpose protection. Its robust 4.5 kA breaking capacity ensures dependable interruption under fault conditions.
The breaker is mountable on DIN rails with a compact form factor measuring 85 mm in height, 36 mm in width, and 73 mm in depth, allowing easy integration into distribution boards. The tunnel type terminal enhances wiring flexibility and reliability.
Equipped with a toggle switch reset actuator, it offers clear ON/OFF status and trip indication for user convenience. The device meets EN/IEC 60947-2 standards and RoHS directives, assuring compliance with international safety and environmental norms.
Additional features include a padlockable switch for securing the breaker in OFF position and an operating ambient temperature range from -5 °C to 60 °C with up to 95% relative humidity at 55 °C. These characteristics make it well-suited for industrial, residential, manufacturing, and commercial electrical applications requiring reliable circuit protection.
Features thermal-magnetic trip mechanism ensuring effective circuit protection. Rated for 230V AC operation with Type C tripping characteristics. Compact DIN rail mount design with tunnel terminal type for easy installation.
Breaking capacity of 4.5 kA suitable for residential and distribution applications. Compliant with EN/IEC 60947-2 and RoHS standards for safety and environmental compliance. Includes toggle switch reset actuator with ON/OFF and trip indicator functionality.
Height of 85 mm, width of 36 mm, and depth of 73 mm for space-efficient mounting. Suitable for ambient temperatures from -5 to 60 °C and relative humidity up to 95% at 55 °C. Padlockable feature for additional security and prevention of unauthorized operation.
Manufactured in Spain ensuring quality and reliability.
Explore the Schneider Electric category on EnvMart for a comprehensive range of high-quality circuit breakers and electrical protection devices tailored to diverse industrial and residential needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 32A, making it suitable for various electrical applications.
It features a breaking capacity of 4.5 kA, ensuring effective interruption under fault conditions.
The dimensions are 85 mm in height, 36 mm in width, and 73 mm in depth, allowing for compact installation.
It utilizes a thermal-magnetic tripping mechanism, providing both instantaneous response to overloads and delayed earth leakage protection.
Yes, it complies with EN/IEC 60947-2 and RoHS standards, ensuring safety and environmental compliance.
The rated AC voltage for this circuit breaker is 230V, making it suitable for standard residential and distribution applications.
It is designed for DIN rail mounting, which facilitates easy installation in distribution boards.
This model has a trip sensitivity of 300 mA, providing effective earth leakage protection.
It features Type C tripping characteristics, which are suitable for general-purpose protection.
It can operate in ambient temperatures ranging from -5 °C to 60 °C, with a relative humidity of up to 95% at 55 °C.
Yes, it includes a padlockable switch that secures the breaker in the OFF position, preventing unauthorized operation.
It features a tunnel type terminal, which enhances wiring flexibility and reliability during installation.
