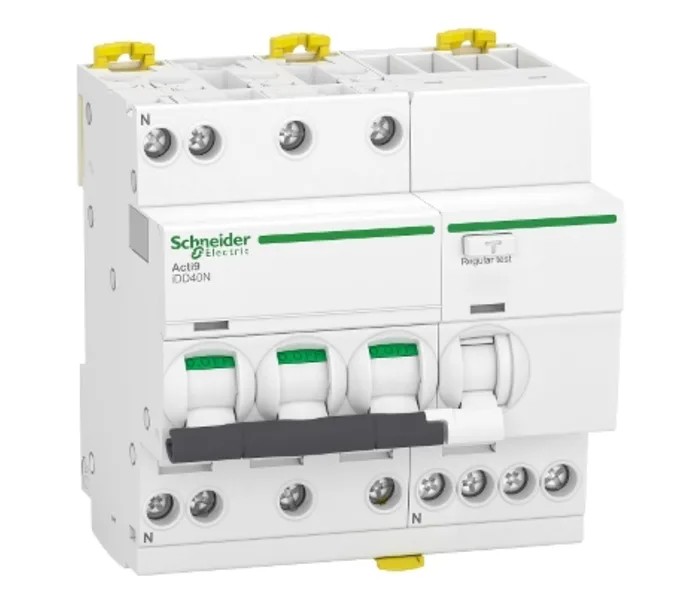

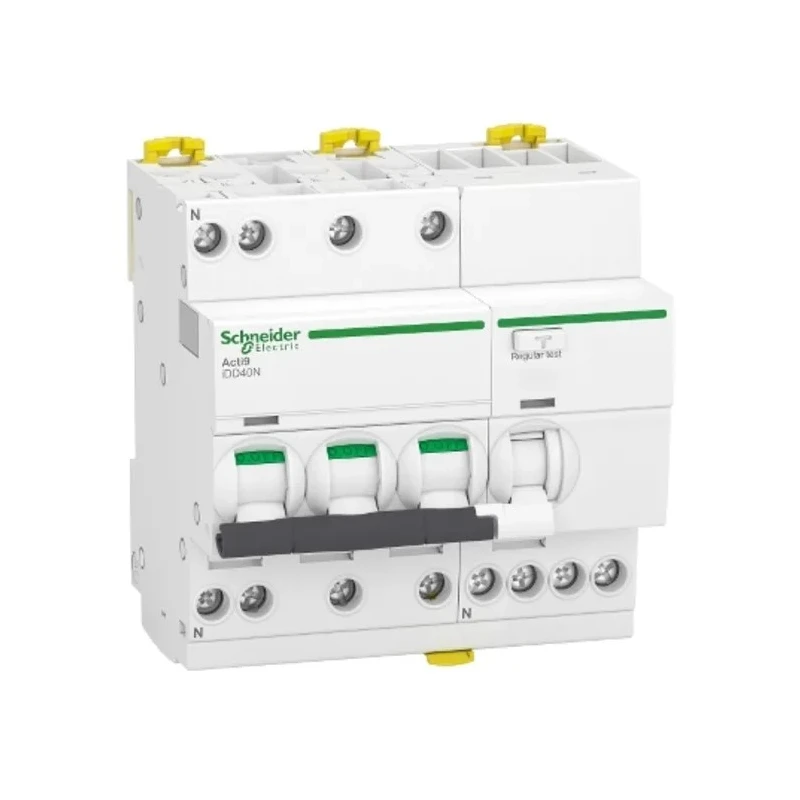

Schneider Electric Residual Current Circuit Breaker with Overload Protection 32A Current Rating 3-Pole 30mA Trip A9DB3732
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DB3732 |
| Depth | 73mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | Acti9 iDD40N |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | A-SI |
Key Features
- Provides thermal magnetic tripping mechanism to protect against short circuits and overloads.
- Mounts easily on DIN rail with tunnel type terminals for secure wiring.
- Rated for 400V AC voltage with breaking capacity of 10kA.
- Complies with EN/IEC 60947-2 standards and RoHS directives.
- Features a toggle switch reset actuator with on/off and trip indicators for operational clarity.
- Designed and manufactured in Spain ensuring high-quality European standards.
- Ideal for residential and distribution applications requiring both residual current and overload protection.
Product Description
Schneider Electric A9DB3732 Residual Current Circuit Breaker with Overload Protection is engineered for reliable electrical safety in residential and industrial distribution systems. Featuring a 32A current rating and a 3-pole configuration, this circuit breaker combines residual current protection with an effective thermal magnetic tripping mechanism to safeguard circuits against overloads and short circuits.
The device operates at a rated AC voltage of 400V and offers a breaking capacity of 10kA. Its trip sensitivity is 30mA, providing precise earth leakage detection compliant with standards EN/IEC 60947-2 and RoHS. The actuator type is a toggle switch equipped with ON/OFF and trip indication for user-friendly operation.
Designed for DIN rail mounting with tunnel-type terminals, the unit ensures secure connectivity and ease of installation. Its compact design measures 93mm in height, 90mm in width, and 73mm in depth, fitting conveniently within electrical enclosures.
Built for durability, the breaker supports an ambient air temperature range from -5°C to 60°C and offers electrical endurance of 20,000 operating cycles. Additional features include impulse withstand voltage up to 4 kV and a padlockable toggle for enhanced safety.
Originating from Spain, this Schneider Electric RCBO delivers premium quality and compliance with stringent European standards, making it dependable for diverse applications requiring combined residual current and overload protection.
Provides thermal magnetic tripping mechanism to protect against short circuits and overloads. Mounts easily on DIN rail with tunnel type terminals for secure wiring. Rated for 400V AC voltage with breaking capacity of 10kA.
Complies with EN/IEC 60947-2 standards and RoHS directives. Features a toggle switch reset actuator with on/off and trip indicators for operational clarity. Compact dimensions: 93mm height, 90mm width, and 73mm depth for space-efficient installation.
Designed and manufactured in Spain ensuring high-quality European standards. Ideal for residential and distribution applications requiring both residual current and overload protection. Find more high-performance circuit breakers in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The circuit breaker has a current rating of 32A.
It has a breaking capacity of 10kA.
This model is rated for 400V AC voltage.
It features a thermal magnetic tripping mechanism that protects against overloads and short circuits.
The dimensions are 93mm in height, 90mm in width, and 73mm in depth.
It mounts easily on DIN rail with tunnel-type terminals for secure wiring.
The trip sensitivity is 30mA, providing precise earth leakage detection.
It complies with EN/IEC 60947-2 standards and RoHS directives.
The unit supports an ambient air temperature range from -5°C to 60°C.
It features a toggle switch reset actuator with ON/OFF and trip indicators.
This model has a 3-pole configuration.
It belongs to the Acti9 iDD40N series.
