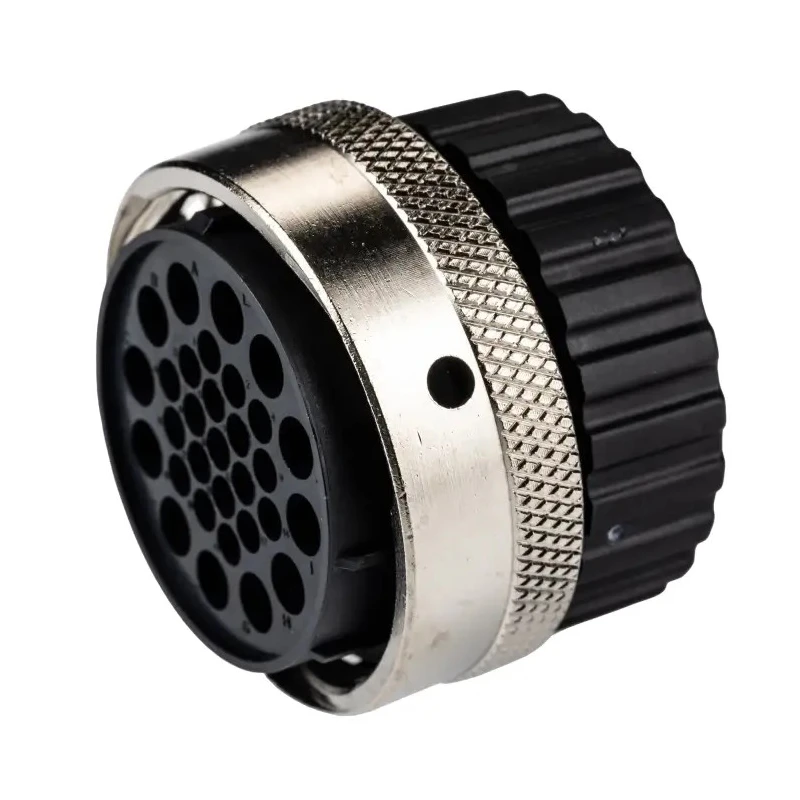

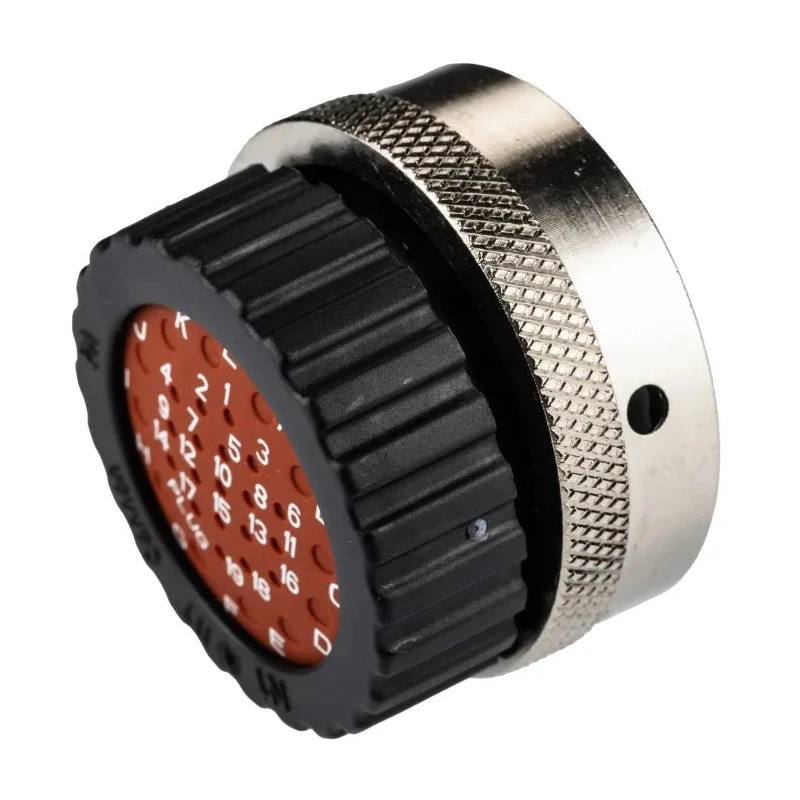

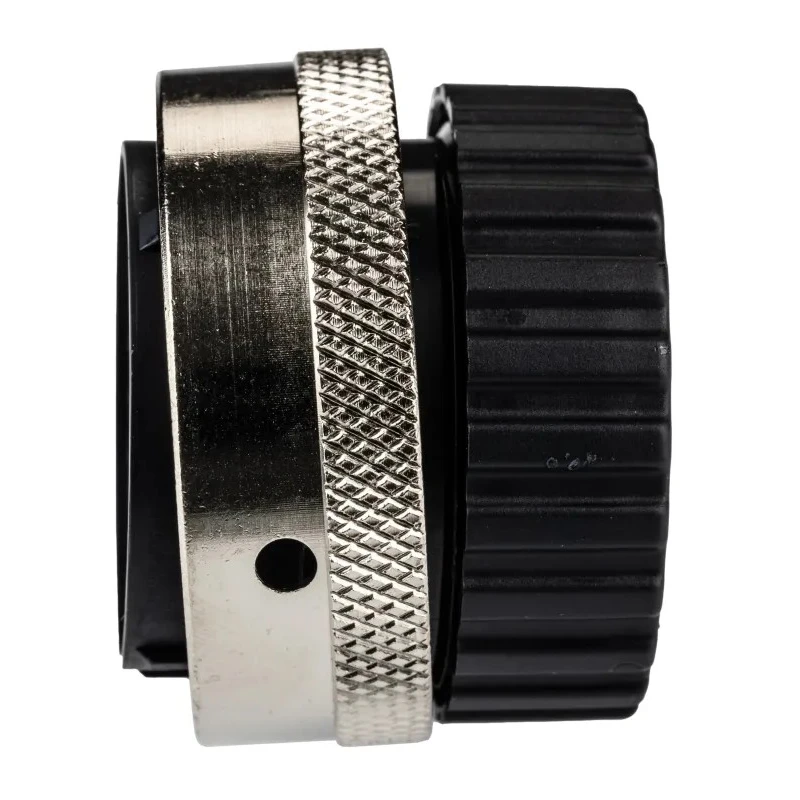

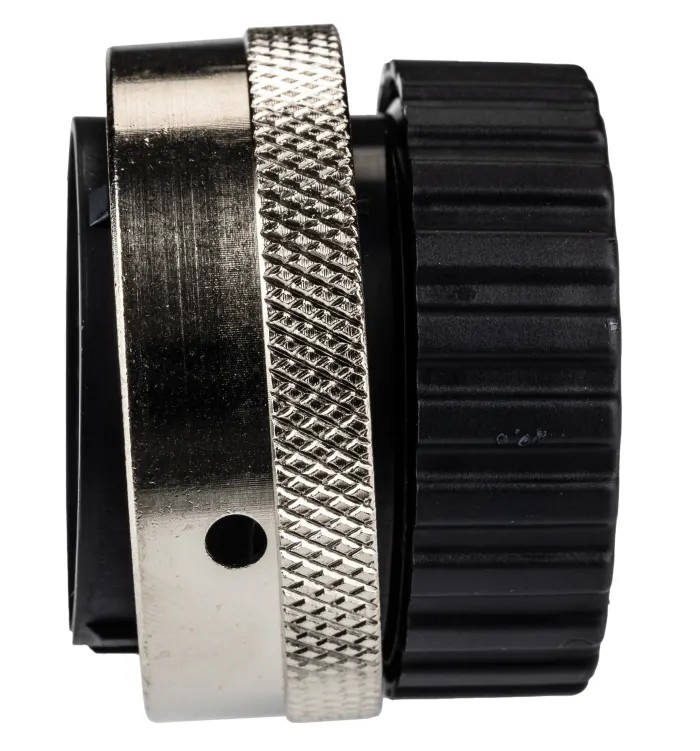

ITT Cannon Circular Connector 31 Contacts Cable Plug Female IP67 Polymer Housing Bayonet Mount TN6S24-1219S1L / 192900-0056

ITT Cannon TN6S24-1219S1L / 192900-0056 is a circular connector plug designed for cable mount use, delivering reliable electrical connections with 31 female contacts. The connector is part of the Trident Neptune series, which combines robust mechanical features and environmental protection, making it suitable for demanding industrial, automotive, marine, and process control environments.

This connector features a polymer housing material that balances durability with weight savings. It adopts a strong bayonet coupling mechanism, ensuring quick and secure mating with compatible socket connectors. Rated IP67, it provides excellent ingress protection against dust and water, essential for harsh or outdoor applications.

The connector supports a current capacity of 30 amperes and a voltage rating of 250 volts, making it suitable for both power and signal transmission. The 31 contacts are nickel-plated copper, providing both conductivity and corrosion resistance. Crimp termination allows easy assembly and reliable cable connection.

Operating temperature ranges from -55°C to 105°C, allowing for use in a wide variety of environmental conditions. The connector size is standard with a 24 mm shell size and straight orientation, supporting versatile usage scenarios.

To maintain the IP67 rating, the rear rubber seal is pierced only upon contact insertion and secured with a screw ring, maintaining environmental protection during operation. This connector is ideal for integration into systems requiring rugged, reliable circular connectors with precise mating and environmental resilience.

Designed for harsh environments with IP67 rating for dust and water protection. Features 31 female contacts with a current rating of 30A and voltage rating of 250V. Bayonet mating type ensures secure and easy connection.

Polymer housing provides durability and lightweight design. Operates reliably in temperatures from -55°C to 105°C. Connector size is standard with straight orientation for versatile use. Termination is by crimp, suitable for cable mounting.

Contact plating is nickel over copper for corrosion resistance. Ideal for automotive, marine, industrial, and outdoor electronics applications.

This ITT Cannon circular connector is part of a comprehensive range of Industrial Circular Connectors and accessories available at EnvMart, catering to electronics, electrical, and manufacturing industries.
