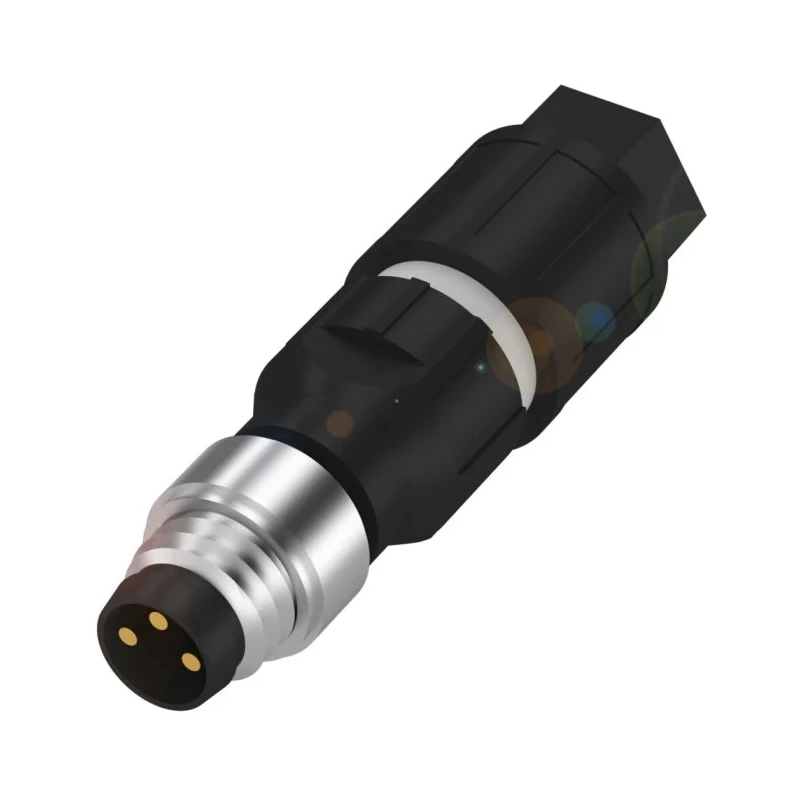

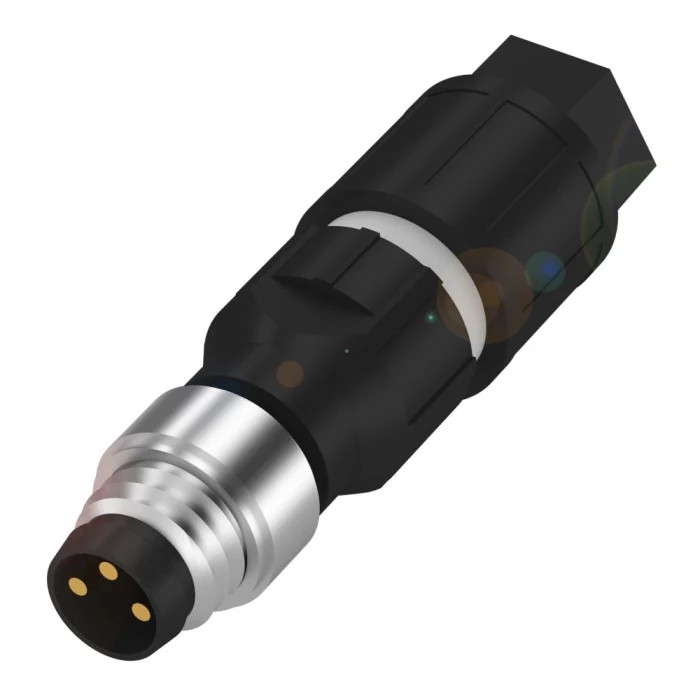

BALLUFF Industrial Circular Connector 3 Contacts Cable M8 Plug Male IP67 BCC0HLW

The BALLUFF BCC0HLW Industrial Circular Connector is engineered for robust and secure transmission of signals, data, and power in demanding industrial environments. With an M8x1 male plug configuration featuring 3 contacts and A-coding, this connector supports currents up to 4.0 A at 40°C and is compatible with cable diameters between 2.5 to 5.2 mm.

Designed for cable mounting with screw termination, it supports IDC wire connections with cross-sections from 0.25 to 0.5 mm². Its housing combines die cast zinc with polyamide, providing mechanical strength and chemical resistance. The connector meets IP67 protection rating, making it dust tight and waterproof to withstand harsh conditions.

Operating over a broad temperature range from -25°C to 80°C, the BCC0HLW ensures reliable performance in various industrial applications including automation systems, manufacturing equipment, and electronic power distribution. The threaded mating type secures firm connections preventing accidental disconnections.

Manufactured in Germany, it complies with CE, EAC, and WEEE standards, guaranteeing quality and environmental safety. The bronze contacts offer excellent conductivity and mechanical robustness.

Three-pin A-coded M8 connector with 4A current rating. Screw termination type supporting IDC wiring. Durable housing with die cast zinc and polyamide materials. IP67 rating for water and dust ingress protection. Wide operating temperature range from -25°C to 80°C.

Threaded mating ensures secure and reliable connections. Suitable for industrial electronics, automation, and power transmission. Compliance with CE, EAC, and WEEE standards. Contact material bronze for enhanced conductivity.
