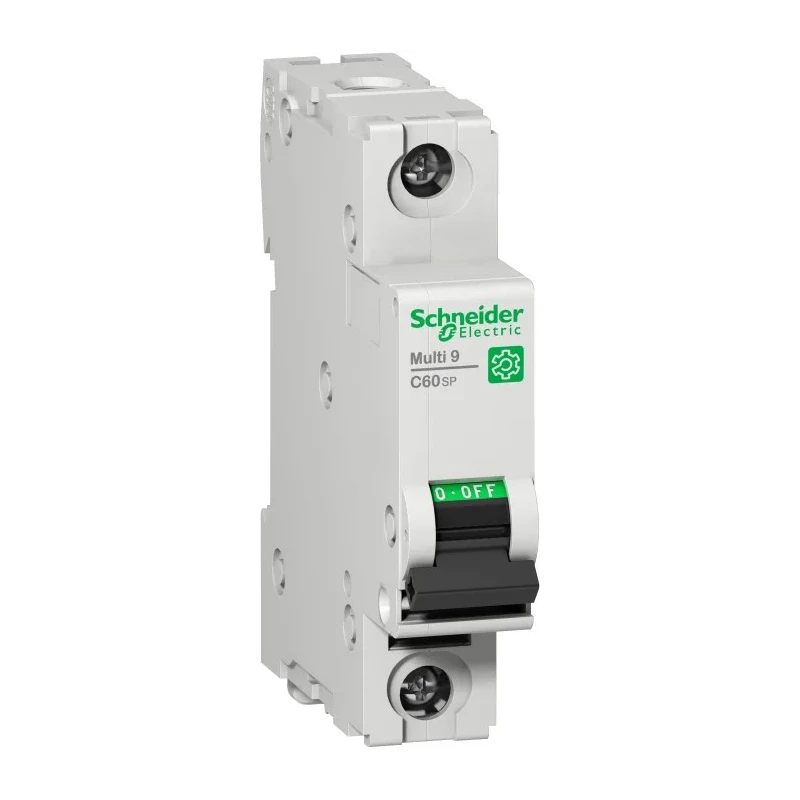

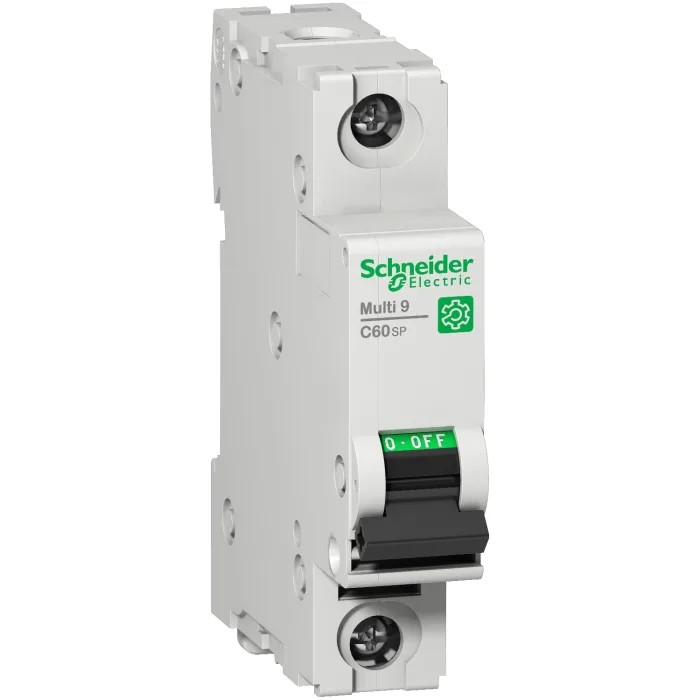

Schneider Electric Multi9 Miniature Circuit Breaker, 1-Pole, 6A, Type D, 415V AC, 60 V dc, 20 kA Breaking

Schneider Electric M9F23106 Miniature Circuit Breaker is designed for efficient circuit protection in electrical and automation systems, compatible with both residential and industrial environments. Featuring a 6 ampere current rating and Type D tripping characteristics, it is ideal for handling circuits with inductive loads and ensuring safety under overload and short-circuit conditions.

This breaker supports a rated AC voltage of 415V and DC voltage of 60V, enabling versatile usage across different power supplies. With a breaking capacity of 20kA, it reliably interrupts fault currents, reducing damage risks to connected equipment and infrastructure.

The device incorporates a thermal magnetic tripping mechanism which combines thermal and magnetic protection methods to detect overloads and short circuits precisely. Its clip-on mount design and tunnel terminal type facilitate secure and user-friendly installation and wiring. The toggle switch actuator allows easy reset and operation by users.

The compact form factor with dimensions of 81mm height, 18mm width, and 72mm depth, and an IP20 protection rating makes it suitable for panel mounting in confined spaces while providing adequate protection against ingress of solid objects.

Manufactured to international standards including UL 1077, GB 14048.2, EN/IEC 60947-2, and CSA C22.2 No 235, this circuit breaker ensures compliance and safety assurance in diverse markets. The product is made in France, reflecting high-quality European manufacturing standards.

Rated current of 6 amperes ensures safe circuit operation. Type D tripping protects inductive and motor loads from nuisance tripping. Rated for both AC 415V and DC 60V voltages for versatile application. High breaking capacity of 20 kA enhances system safety during faults.

Clip-on mount and tunnel terminal design simplify installation and wiring. Toggle switch actuator provides intuitive manual control for system operation. Thermal magnetic mechanism ensures reliable and accurate trip performance.

Compliant with UL 1077, IEC 60947-2, and other global standards.

This Miniature Circuit Breaker is essential in industrial, commercial, and residential electrical installations to protect circuits against overloads and short circuits, enhancing operational safety and equipment longevity.
