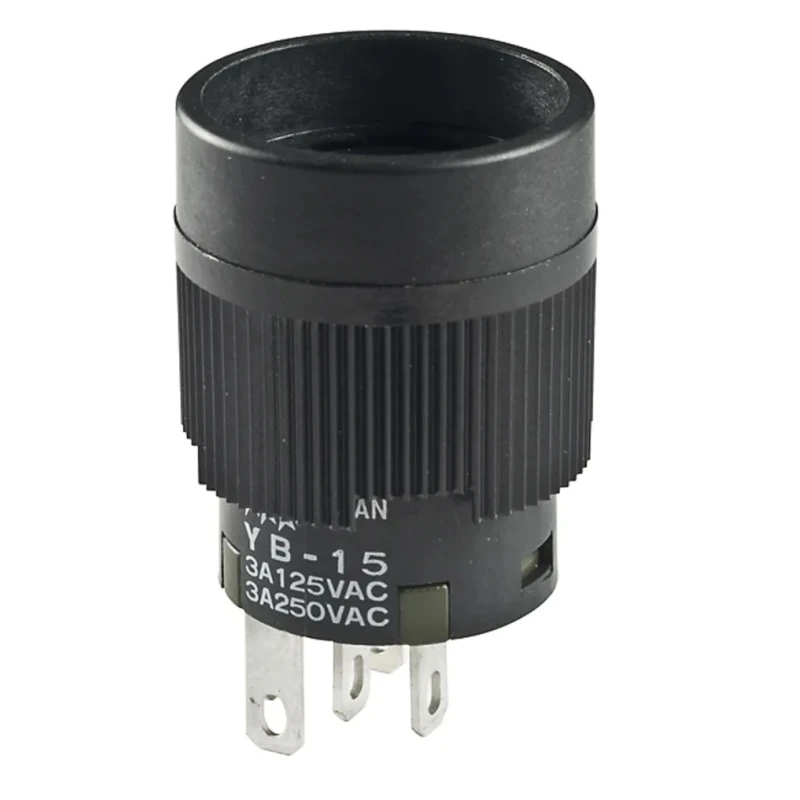

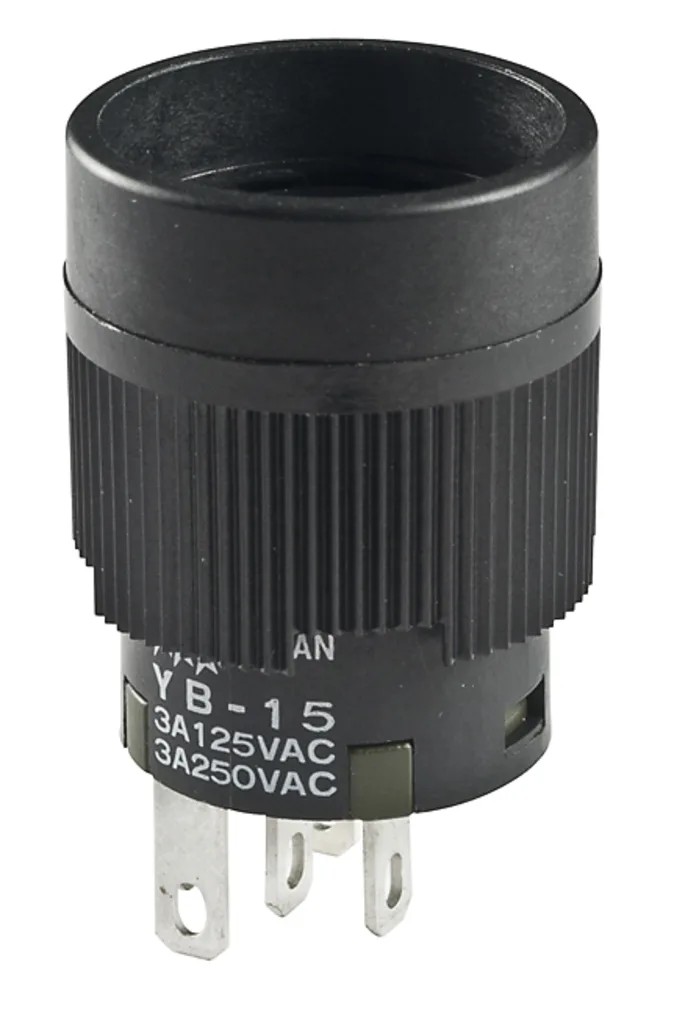

NKK Switches YB Series Illuminated Push Button Switch, On-On, Panel Mount, 15 mm Cutout, SPDT, IP65, 125 V AC YB15CKW01
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | NKK Switches |
| Model | YB15CKW01 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | YB |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 15 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | CSA, IEC 60529, UL 94 V-0, UL Recognised |
| Switch Operation | On-On |
| Actuator Colour | Silver |
| Contact DC Voltage | 125V |
| Actuator Style | Round |
| Switch Contact Current | 3A |
| Contact AC Voltage | 125V ac |
Key Features
- The switch features On-On operation with a round silver actuator.
- Illuminated design provides clear operational status.
- Panel mount with 15 mm cutout for easy integration.
- SPDT contact configuration supporting multiple circuit design options.
- IP65 rating assures robust dust and water resistance.
- Supports 125V DC and 125V AC voltages at 3A current rating.
- Operating temperature range from -25°C to 50°C for versatile environments.
- Solder lug terminals provide reliable electrical connections.
Product Description
NKK Switches YB15CKW01 is an illuminated push button switch from the YB Series, designed for panel mounting with a 15 mm cutout diameter. It offers On-On switch operation with a single-pole, double-throw (SPDT) contact configuration, making it suitable for electrical control and automation applications requiring reliable switching.
The switch features a round actuator in silver color, equipped with illumination to ensure clear visual feedback during operation. It supports contact voltages of 125V DC and 125V AC with a maximum contact current rating of 3A, making it appropriate for a wide range of low to moderate power electrical circuits.
This Push Button Switch is IP65 rated, providing excellent protection against dust ingress and water jets, suitable for industrial, laboratory, and commercial environments where environmental resistance is necessary. The solder lug terminal type ensures secure and stable electrical connections during installation.
Designed to operate reliably in ambient temperatures ranging from -25°C to 50°C, the switch meets rigorous standards including CSA, IEC 60529, UL 94 V-0, and is UL Recognised, offering users confidence in safety and quality compliance.
Common applications include automation panels, control stations, instrumentation, and other equipment requiring illuminated push button controls with dependable performance. Its durable construction and compliance standards make it an excellent component for industrial and commercial use.
The switch features On-On operation with a round silver actuator. Illuminated design provides clear operational status. Panel mount with 15 mm cutout for easy integration. SPDT contact configuration supporting multiple circuit design options.
IP65 rating assures robust dust and water resistance. Supports 125V DC and 125V AC voltages at 3A current rating. Operating temperature range from -25°C to 50°C for versatile environments. Solder lug terminals provide reliable electrical connections.
Meets CSA, IEC 60529, UL 94 V-0, and UL Recognised approvals for safety. For further product selections and specifications, explore the Electronics & Electricals section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole, double-throw (SPDT) contact configuration, allowing for multiple circuit design options.
The maximum operating temperature for the YB15CKW01 is 50°C, making it suitable for various environments.
The switch has an IP65 rating, providing robust protection against dust and water ingress.
This illuminated push button switch requires a panel cutout size of 15 mm for proper installation.
It supports contact voltages of 125V DC and 125V AC, with a maximum contact current rating of 3A.
The YB15CKW01 is equipped with solder lug terminals, ensuring reliable electrical connections during installation.
The operational temperature range for this model is from -25°C to 50°C, allowing it to function in diverse conditions.
This switch meets several standards including CSA, IEC 60529, UL 94 V-0, and is UL Recognised, ensuring compliance with safety regulations.
This model features On-On operation, allowing for versatile switching applications.
The switch has a round actuator style and is colored silver, providing a clear visual indication during operation.
Common applications for this switch include automation panels, control stations, and instrumentation requiring illuminated controls.
This switch is part of the YB Series from NKK Switches, designed specifically for panel mounting.
