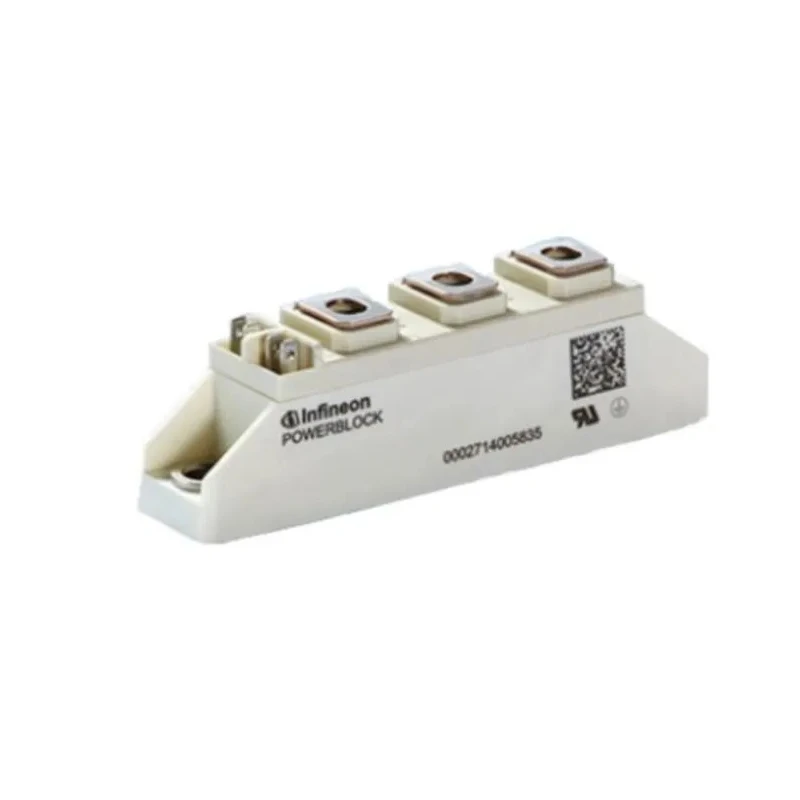

Infineon Thyristor Module 1600 V 2.25 kA 119 A 100 mA 1.75 V 1-Pin TT120N16SOFB01HPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TT120N16SOFB01HPSA1 |
| Series | TT120N16SOF |
| Maximum Operating Temperature | 130°C |
| Pin Count | 1 |
| Rated Average On-State Current Irms | 119A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 2.25kA |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 250mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 1.75V |
| Repetitive Peak Off-State Current | 20mA |
Key Features
- Rated average on-state current of 119 A for robust operation.
- Repetitive peak reverse voltage of 1600 V ensures high voltage endurance.
- Surge current rating up to 2.25 kA for transient load tolerance.
- Single pin configuration facilitates easy integration.
- Maximum gate trigger current rating of 100 mA for reliable triggering.
- Max operating temperature of 130°C supports industrial usage.
- Electrically insulated copper base plate enhances thermal performance.
- Low weight and cost-effective construction using solder bond technology.
Product Description
Infineon TT120N16SOFB01HPSA1 Thyristor Module is engineered for industrial-grade power control with a repetitive peak reverse voltage of 1600 V and surge current rating of 2.25 kA. This module supports a rated average on-state current of 119 A and features a maximum gate trigger current of 100 mA, optimized for reliable switching and control in demanding applications.
Constructed with solder bond technology and incorporating an electrically insulated copper base plate, it ensures excellent thermal management and mechanical stability, making it suitable for high-power semiconductor needs. The single-pin design simplifies connections while reducing system complexity.
Designed to operate up to 130°C, this module fits industrial applications including motor drives, industrial heating, welding equipment, commercial vehicles, as well as construction and agricultural machinery. Its low weight and cost-effective design provide practical advantages in system integration.
The TT120N16SOFB01HPSA1 is not certified under automotive standards but remains a robust choice for industrial power control applications. Rated average on-state current of 119 A for robust operation. Repetitive peak reverse voltage of 1600 V ensures high voltage endurance.
Surge current rating up to 2.25 kA for transient load tolerance. Single pin configuration facilitates easy integration. Maximum gate trigger current rating of 100 mA for reliable triggering. Max operating temperature of 130°C supports industrial usage.
Electrically insulated copper base plate enhances thermal performance. Low weight and cost-effective construction using solder bond technology. Ideal for motor control, industrial heating, welding, and automotive applications.
No automotive standards applicable for this model. Explore our extensive Semiconductor and Thyristor Module range at EnvMart for high-quality industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of the Infineon TT120N16SOFB01HPSA1 is 119 A, which supports robust operation in various applications.
This thyristor module has a maximum operating temperature of 130°C, making it suitable for industrial applications.
It has a surge current rating of 2.25 kA, allowing it to handle transient loads effectively.
The repetitive peak reverse voltage for the TT120N16SOFB01HPSA1 is 1600 V, ensuring high voltage endurance.
This model features a single pin configuration, which facilitates easy integration into systems.
The maximum gate trigger current rating for this thyristor module is 100 mA, ensuring reliable triggering.
The peak on-state voltage for this thyristor module is 1.75 V.
The maximum holding current for the TT120N16SOFB01HPSA1 is 250 mA.
This model is suitable for applications such as motor drives, industrial heating, welding equipment, and commercial vehicles.
The Infineon TT120N16SOFB01HPSA1 is manufactured in India.
It is constructed using solder bond technology and features an electrically insulated copper base plate for enhanced thermal performance.
The repetitive peak off-state current for the TT120N16SOFB01HPSA1 is 20 mA.
