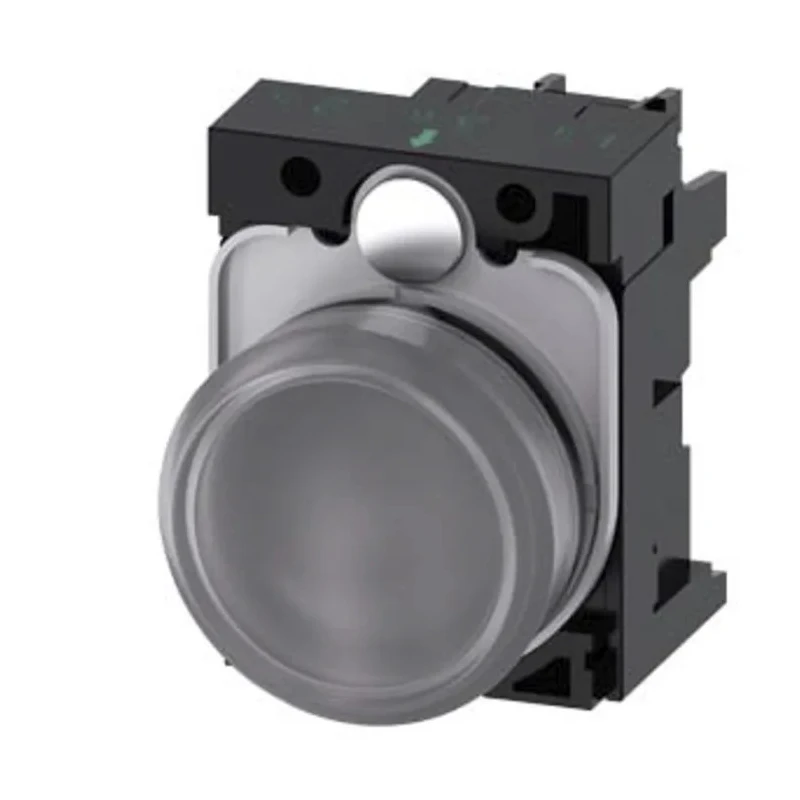

Siemens Illuminated Push Button Switch, Momentary, Front Mount, 22 mm Cutout, SPDT, Red LED, 500 V dc 3SU1106-0AB20-1FA0

Name: Siemens Illuminated Push Button Switch, Momentary, Front Mount, 22 mm Cutout, SPDT, Red LED, 500 V dc 3SU1106-0AB20-1FA0
Brand: Siemens
SKU: 281175
Price: 58.39 USD
Availability: InStock



Category Push Button Switches Brand Siemens Condition New

Specifications

Country of Origin	Germany
Brand	Siemens
Height	40mm
Length	71.7mm
Model	3SU1106-0AB20-1FA0
Width	30mm
Mount Type	Front
Series	SIRIUS ACT 3SU11
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Momentary
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
Standards/Approvals	IEC 60068-2-27DIN EN 61373IEC 60068-2-6IEC 60721NEMA 1233R44X1213
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	500V dc
Actuator Style	Round
Switch Contact Current	10A
Contact AC Voltage	500V ac
Better World Claim	Extended Product Life, Low Carbon Manufacture
Legend	Blank

Key Features

The switch features a 22 mm panel cutout for installation.
It supports momentary operation with a round actuator style.
Red LED illumination ensures clear visual status indication.
Designed for front mounting with screw terminal connections.
Rated for both 500 V dc and 500 V ac contact voltage.
Operates reliably between -25°C to 70°C ambient temperatures.
Switch contact current capacity is rated at 10 A.
Compact dimensions of 71.7 mm length, 40 mm height and 30 mm width.

Product Description

Siemens 3SU1106-0AB20-1FA0 is an illuminated push button switch from the SIRIUS ACT 3SU11 series, designed for momentary front mounting in industrial and automation applications. It features a robust red plastic round actuator, suitable for control panels requiring a 22 mm cutout size. The switch configuration includes single-pole double-throw (SPDT) contacts with one normally open (NO) and one normally closed (NC) contact, operated momentarily.

This push button switch includes an integrated red LED module powered at 230 V AC, providing clear visual feedback for operational status. It is constructed with screw terminal connections to ensure secure wiring. The electrical ratings support contact voltages of 500 V DC and AC, with a contact current rating of 10 A, making it suitable for heavy-duty control circuits.

Designed to operate in a temperature range of -25°C to 70°C, the switch ensures reliable performance under varied environmental conditions. The mechanical dimensions are compact, measuring 71.7 mm in length, 40 mm in height, and 30 mm in width, facilitating space-efficient panel design. Compliance with standards including IEC 60068-2-27, DIN EN 61373, IEC 60068-2-6, IEC 60721, and NEMA 1233R44X1213 ensures durability, shock resistance, and quality assurance.

The product is manufactured in Germany under Siemens' stringent quality and environmental standards, contributing to extended product life and low carbon footprint in production. It is an ideal component for industrial control systems, automation machinery, manufacturing lines, and electrical equipment requiring reliable momentary switching with illuminated indication.

The switch features a 22 mm panel cutout for installation. Momentary operation with SPDT contact configuration. Red LED illumination for clear status indication. Screw terminal wiring for secure connections. Rated for 500 V DC and AC contact voltage.

Operating temperature range of -25°C to 70°C. Compact size with 71.7 mm length, 40 mm height, and 30 mm width. Compliance with IEC and DIN EN standards for quality and durability. Manufactured in Germany with low carbon and extended product life claims.

Explore more Siemens Push Button Switches and components at EnvMart, your trusted source for industrial electrical controls.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a single-pole double-throw (SPDT) contact configuration, which includes one normally open (NO) and one normally closed (NC) contact.

The maximum operating temperature for this switch is 70°C, making it suitable for a range of industrial environments.

It requires a 22 mm panel cutout for proper installation in control panels.

The switch has a contact current capacity rated at 10 A, allowing it to handle substantial electrical loads.

It is rated for both 500 V DC and 500 V AC contact voltage, making it versatile for different electrical applications.

This unit features a red LED illumination, providing clear visual feedback for operational status.

The dimensions of this switch are 71.7 mm in length, 40 mm in height, and 30 mm in width, allowing for compact installation.

The minimum operating temperature for this model is -25°C, ensuring reliable performance in colder environments.

It features screw terminal connections, ensuring secure wiring for reliable operation.

This model complies with several standards including IEC 60068-2-27, DIN EN 61373, and NEMA 1233R44X1213, ensuring quality and durability.

The actuator style is round, designed for easy operation in various control applications.

This switch is manufactured in Germany, adhering to stringent quality and environmental standards.
