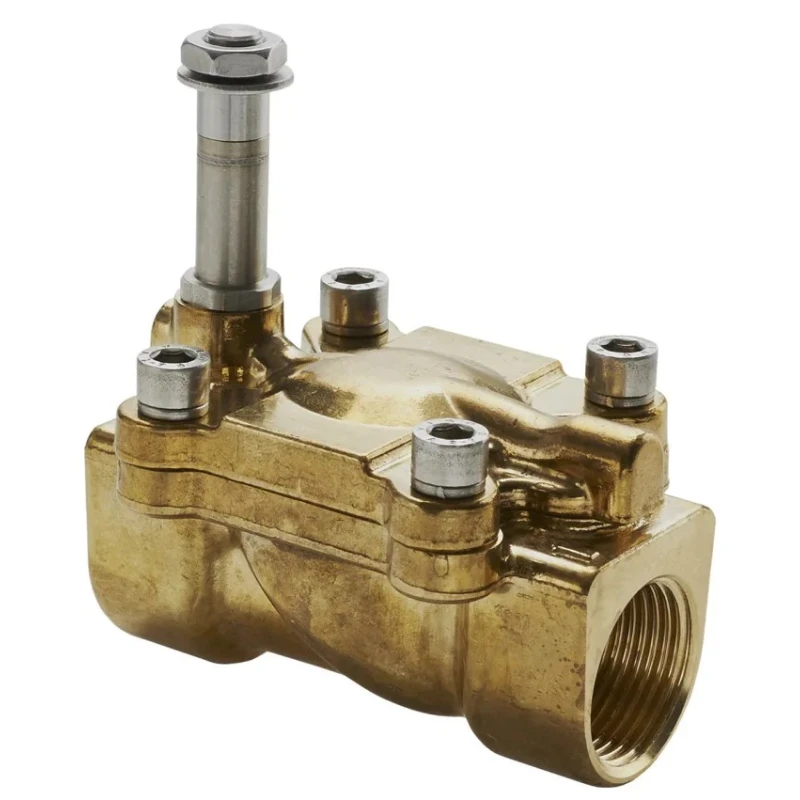

RS PRO Solenoid Valve, 2 Port, NC, Threaded 3/4 in Brass Body, 13.8 bar Pressure, 140°C Max Temp 176-2063

RS PRO 176-2063 Solenoid Valve is a high-quality industrial valve designed for fluid power and mechanical applications requiring robust control of fluid flow. Featuring a brass body and precision 18 mm orifice, this 2-port valve is normally closed (NC) and uses threaded 3/4 inch inlet and outlet ports for easy integration into pipeline systems.

With a maximum operating pressure rating of 13.8 bar and a maximum temperature limit of 140°C, it is suited for industrial environments with demanding temperature and pressure conditions. The valve’s seals are available in NBR and FKM materials, providing flexibility to suit different fluid types and operating environments.

The core and springs are crafted from stainless steel, ensuring durability and resistance to corrosion under typical industrial exposures. The valve features servo assist technology to improve actuation responsiveness and reliability, making it suitable for automated fluid control systems.

Compliance with ISO 228 standards for outlet threads ensures compatibility with common industrial pipeline fittings. With a flow factor Kv of 5.56 m³/h, this valve supports effective flow control in pneumatic and hydraulic circuits.

Manufactured in Italy, this RS PRO solenoid valve is recommended for industrial, manufacturing, HVAC, water treatment, and other fluid control applications requiring performance and reliability.

The valve body is made of durable brass ensuring long-term reliability. It features a 18 mm orifice diameter supporting a flow factor Kv of 5.56 m³/h. Operates efficiently up to a maximum pressure of 13.8 bar and temperature of 140°C.

Threaded connections conform to ISO 228 outlet thread standards. The valve includes servo assist for reliable actuation. Seals options include NBR and FKM variants suitable for diverse applications. Internal components such as core and springs are stainless steel for corrosion resistance.

Designed for industrial fluid control in systems requiring normally closed valve functionality. Explore and source high-quality RS PRO Solenoid Valves and related industrial valve fittings at EnvMart for your system automation and fluid power needs.
