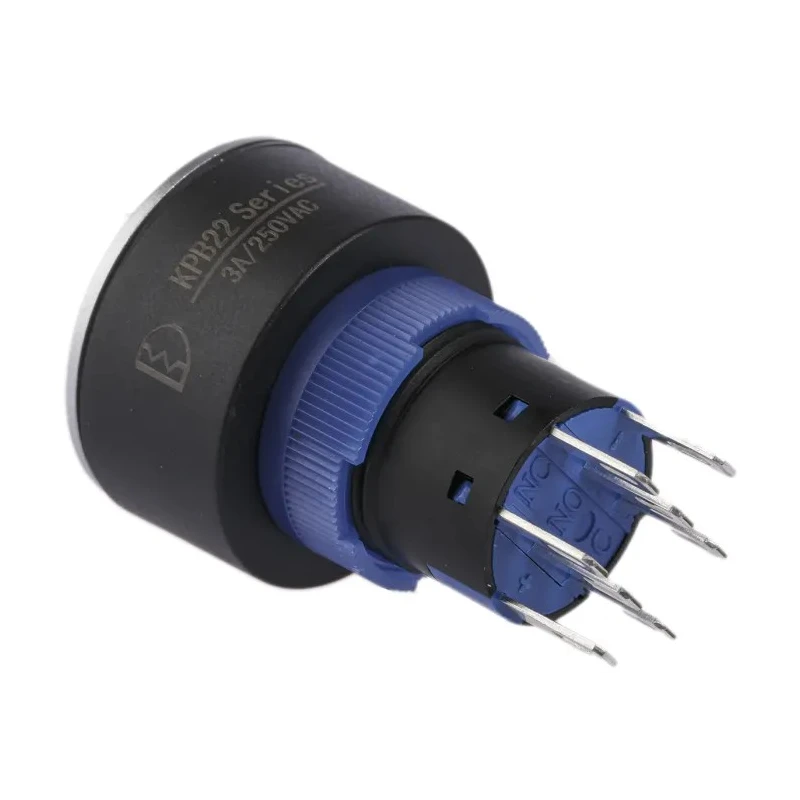

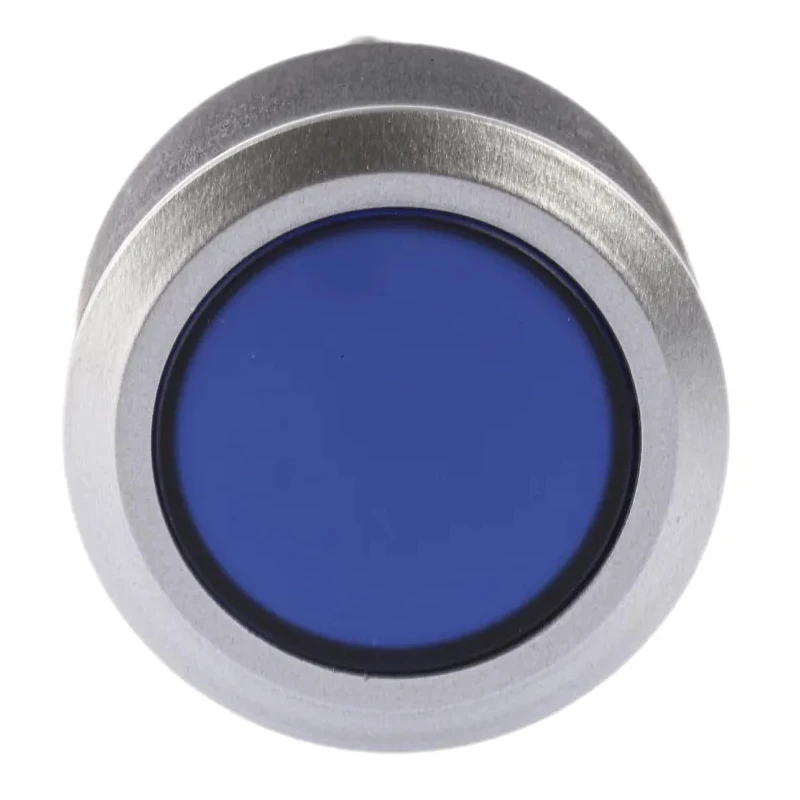

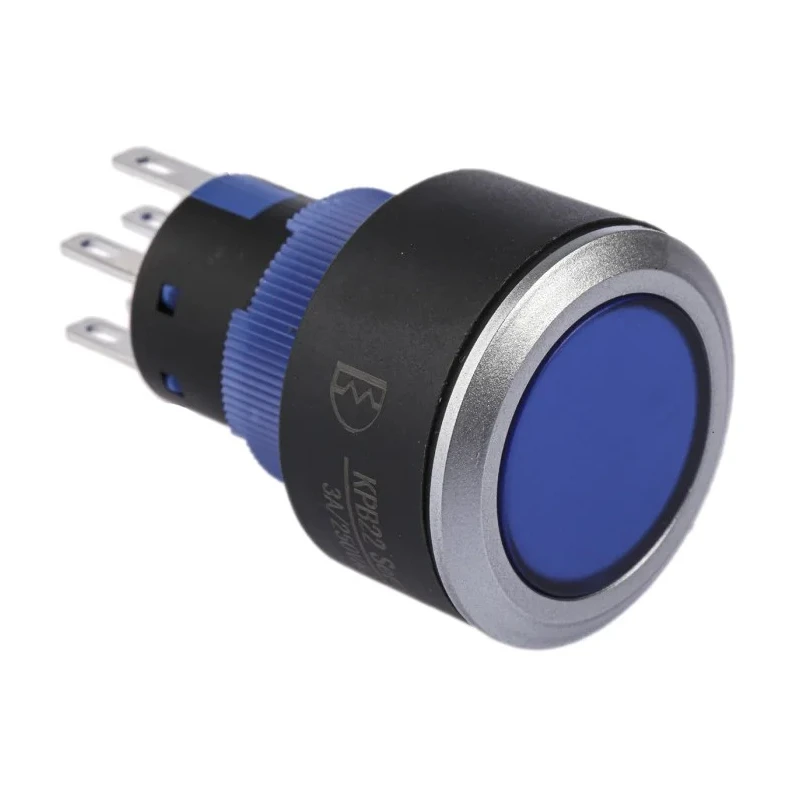

RS PRO Illuminated Push Button Switch Momentary Panel Mount 22.2 mm Cutout DPDT Blue LED IP65 250 V AC 175-8272
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-8272 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 3, 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Constructed with a lightweight plastic cover and silver metal cap with LED illumination.
- Rated IP65 for excellent dust and water ingress protection.
- Operates at 250 V AC contact voltage with a current rating of 3.5 A.
- Features a flat actuator style and solder terminal connections.
- Supports operation across temperatures from -35°C to 70°C.
- Complies with UL 94 V-0 and V-2 flame retardancy standards.
- Blue LED illumination for clear visual indication.
- Panel mount design requiring a 22.2 mm cutout.
Product Description
RS PRO 175-8272 Illuminated Push Button Switch is a high-quality momentary panel mount switch designed for robust industrial and commercial use. The switch features a 22.2 mm panel cutout size and DPDT contact configuration ensuring dual pole double throw operation with blue LED illumination for visual feedback.
The unit is constructed with a lightweight plastic cover featuring a carved pattern and a silver metal cap equipped with an integrated blue LED light for clear visibility. Rated to IP65 standards, this switch offers excellent protection against dust and water ingress, making it suitable for harsh environmental conditions.
Operating voltage is rated at 250 V AC for both AC and DC contacts, with a switch contact current of 3.5 A. The actuator style is flat for easy pressing, and the terminal type is solder, ensuring secure electrical connections. The temperature range for operation spans from -35°C to 70°C, supporting a wide spectrum of industrial temperatures.
This switch meets Ul 94 V-0 and V-2 flame retardancy standards, ensuring a high level of safety compliance. It is ideal for use in communication equipment, wireless applications, electronic measuring instruments, office equipment, and various industrial equipment categories.
Lightweight plastic cover with carved pattern. IP65 rated for dust and water resistance. Blue LED illuminated for status indication. DPDT contact configuration for dual functionality. Panel mount with 22.2 mm cutout size.
Switch contact current rated at 3.5 A. Wide temperature operation range from -35°C to 70°C. UL 94 V-0 and V-2 certified for flame retardancy.
RS PRO products offer reliable performance and durability for various industrial and commercial applications. Explore our Electronics & Electricals category for more switches and components tailored to your operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Dual Pole Double Throw) contact configuration, allowing for versatile switching functions.
It operates at a rated voltage of 250 V AC and has a contact current rating of 3.5 A.
The switch requires a panel cutout size of 22.2 mm for proper mounting.
It can operate in a temperature range from -35°C to 70°C, making it suitable for various environments.
This unit utilizes solder terminal connections, ensuring secure electrical connections.
The switch is rated IP65, providing excellent protection against dust and water ingress.
It complies with UL 94 V-0 and V-2 flame retardancy standards, ensuring safety in operation.
The switch features blue LED illumination for clear visual indication of its status.
It has a flat actuator style, designed for easy pressing during operation.
The switch is constructed with a lightweight plastic cover and a silver metal cap.
This model is suitable for use in communication equipment, electronic measuring instruments, and various industrial equipment.
The switch is manufactured in Taiwan.
