| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1mm |
| Length | 2.9mm |
| Model | BAT5406E6327HTSA1 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | AEC-Q1011 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Anode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 5ns |

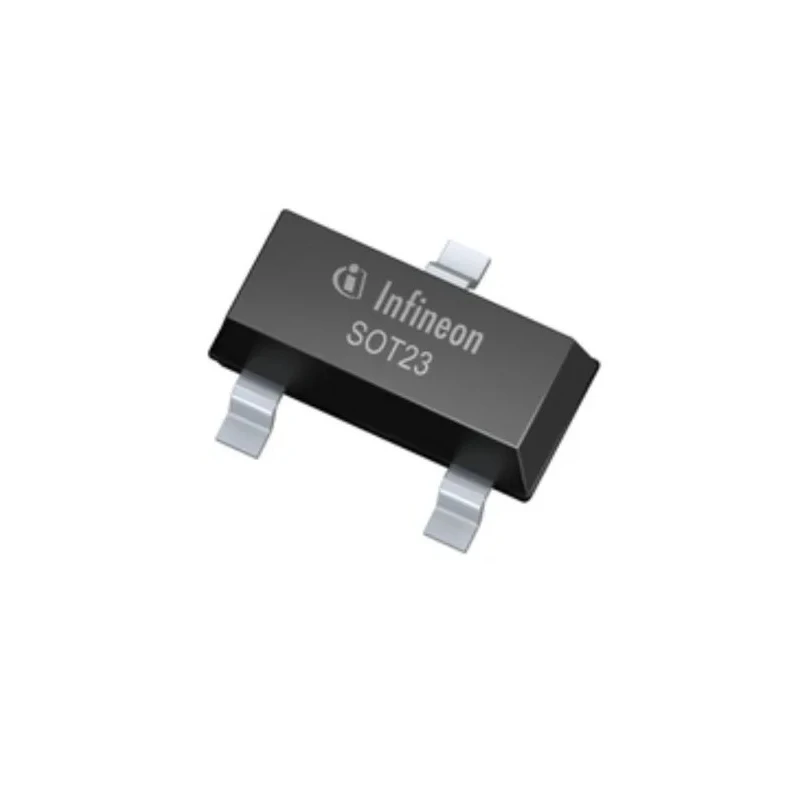

Infineon BAT5406E6327HTSA1 is a surface mount Schottky diode housed in a 3-pin SOT-23 package, engineered for efficient low-loss switching with fast recovery. It supports a maximum continuous forward current of 200 mA and a peak reverse voltage rating of 30 V.
The diode’s construction ensures a low forward voltage of 800 mV, making it suitable for applications where minimal power loss is critical. Its fast recovery time of 5 ns allows it to be effectively used in high-speed switching circuits, reducing switching losses and improving overall circuit efficiency.
Designed to operate reliably within a broad temperature range of -65°C to 150°C, this diode is rated to meet AEC-Q101 and AEC-Q1011 automotive standards, ensuring suitability for demanding automotive and industrial environments.
Key features include a common anode diode configuration with guard ring protection that enhances device robustness against voltage spikes. Its pin count of three and compact dimensions (length 2.9 mm, width 1.3 mm, height 1 mm) facilitate its integration onto modern printed circuit boards.
The diode is lead-free and RoHS compliant, promoting environmentally friendly electronics manufacturing. Typical applications involve power protection circuits such as meter protection, bias isolation, and voltage clamping in power supplies and signal paths in electronic devices.
Compact surface mount SOT-23 package with 3 pins. Low forward voltage of 800 mV to minimize power dissipation. Fast 5 nanosecond reverse recovery time for efficient switching. Operating temperature range from -65°C to +150°C for harsh conditions.
Peak reverse voltage rating of 30 volts for robust blocking capabilities. AEC-Q101 automotive qualified to meet industry reliability standards. Guard ring protection to enhance durability and prevent failure. Ideal for use in meter protection and bias isolation circuits.
Discover high-quality Schottky Diodes from Infineon and explore more discrete semiconductor components for your industrial, automotive, electronics manufacturing, and power conditioning applications on EnvMart.
