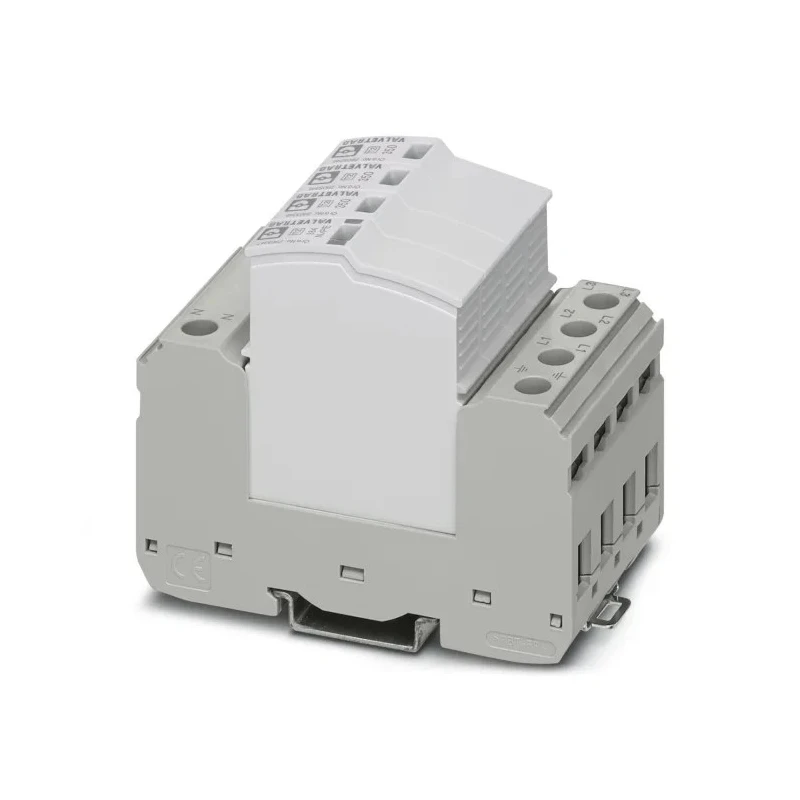

Phoenix Contact 3 Phase Surge Protector 40 kA, 1.5 kV, DIN Rail Mount 2905345

Phoenix Contact 2905345 is a type 2 surge protector designed for three-phase electrical systems. It provides reliable protection against voltage surges up to 1.5 kV and can handle maximum surge currents of 40 kA, making it suitable for industrial, commercial, and electrical automation applications. The device mounts easily on standard DIN rails, optimizing space and installation effort.

This surge protector features an impulse discharge current rating of 20 kA and mechanical coding to avoid plug mismatches, facilitating safe and efficient installation and maintenance. The compact design with dimensions of 89.9 mm length, 49.2 mm width, and 74.5 mm depth allows an organized and space-saving setup in control panels and distribution boards.

Engineered to operate between -40°C and 80°C, this device is built to withstand harsh environments while ensuring optimal performance. Compliance with IEC 61643-11:2011 and EN 61643-11:2012 standards guarantees quality and reliability. Rated IP20, it offers protection against ingress of solid objects, making it ideal for indoor installations in electrical enclosures.

Commonly used in industrial automation, power distribution, telecommunications, and manufacturing environments, this surge protector effectively shields sensitive electronic equipment from transient overvoltages. The user benefits from easy servicing and replacement without tool requirements due to its mechanical coding and DIN rail compatibility.

Designed to protect electrical installations from surge damage with a Type 2 surge arrester configuration. Suitable for three-phase electrical systems ensuring comprehensive power line protection. Impulse discharge current rated at 20 kA for managing transient surge events effectively.

Compact dimensions with length 89.9 mm, width 49.2 mm, and depth 74.5 mm for space-saving DIN rail mounting. Operates reliably within a wide temperature range from -40°C to 80°C. Complies with IEC 61643-11:2011 and EN 61643-11:2012 standards for surge protective devices.

Features mechanical coding to prevent plug mismatching and ensures easy replacement during maintenance. Rated IP20 for protection against solid objects and suitable for indoor electrical enclosures. Explore more Surge Protection Devices and components on EnvMart to safeguard your electrical systems with trusted industrial solutions.
