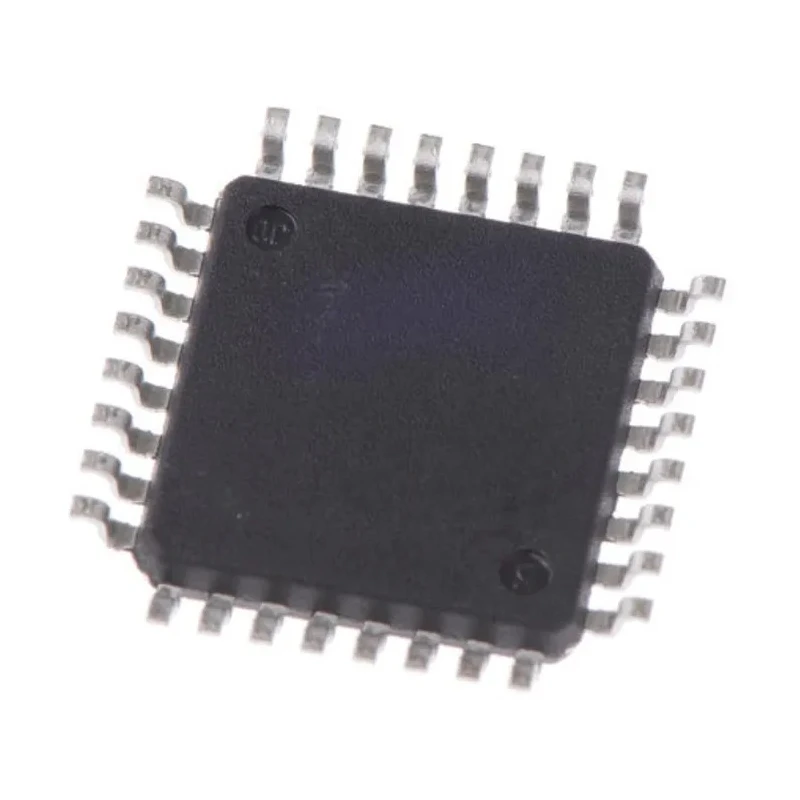

STMicroelectronics STM32L031K6T7 32 bit ARM Cortex M0+ STM32L0 Microcontroller 32 MHz 32kB FLASH 32-Pin LQFP

STMicroelectronics STM32L031K6T7 is an advanced 32-bit microcontroller featuring the ARM Cortex M0+ core, tailored for embedded systems requiring ultra-low power and high performance. Operating at a clock speed of 32 MHz, this STM32L0 series device offers 32kB FLASH memory and 8kB RAM, providing ample resources for a wide range of applications.

The device is housed in a compact 32-pin LQFP package, with precise dimensions of 7.2 mm in length and width, and a slim 1.45 mm height. It supports surface mounting technology and integrates 38 programmable input/output pins, 3 timers, 10 x 12-bit ADC channels, and 2 analogue comparators for enhanced signal interfacing and control.

Engineered for robustness, the microcontroller operates efficiently across an extended temperature range from -40°C to 105°C with a maximum power dissipation of 333 mW. Its supply voltage spans from 1.65V to 3.6V, enabling versatile deployment in varied power environments.

The STM32L031K6T7 utilizes a RISC instruction set architecture enhancing execution speed and efficiency. This microcontroller series also incorporates autonomous peripherals that minimize CPU wake-ups, boosting power efficiency. Ideal for industrial, laboratory, manufacturing, and embedded system applications, it supports dynamic voltage scaling, LCD interface, DAC, comparator, and hardware encryption for security and enhanced functionality.

Features an ARM Cortex M0+ 32-bit RISC core optimized for embedded applications. 32kB program memory size with FLASH type for reliable code storage. Operates at a maximum clock frequency of 32 MHz for efficient performance.

Includes 8kB RAM and 10 12-bit ADCs for analog signal processing. Supports 38 programmable I/Os and contains 3 timers for versatile timing functions. Delivers ultra-low power consumption with a minimum supply voltage of 1.65V and max voltage of 3.6V.

Compact dimensions: 7.2 mm length x 7.2 mm width x 1.45 mm height, surface mountable in LQFP package. Suitable for industrial and embedded applications with operating temperature range from -40°C to 105°C. Provides 2 analogue comparators and has a max power dissipation of 333 mW.

Employs RISC instruction set architecture for streamlined instruction execution.

This microcontroller is recommended for industrial, manufacturing, embedded systems, and laboratory equipment requiring efficient processing, low power consumption, and robust signal interfacing. Explore more Microcontrollers at EnvMart for your project needs.
