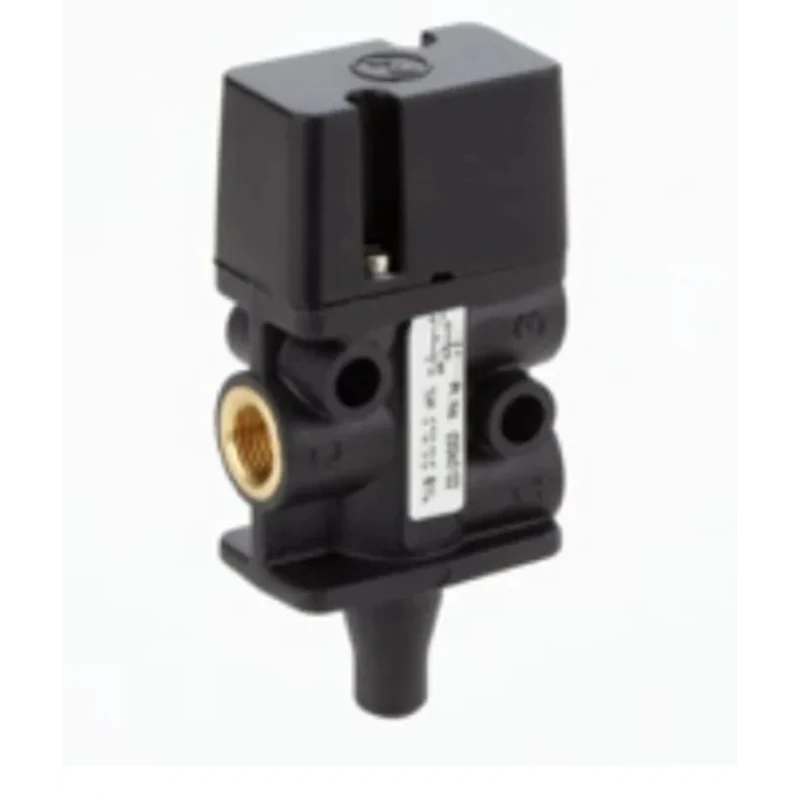

Norgren Pneumatic Solenoid Valve Pilot/Spring M14 x 1.5, BSPP, M30 x 1 Thread, 3 Ports, 5/2 3/2 5/3 Valve Function 03041302

Free Delivery in India | Lowest Global Shipping Charges

Norgren Pneumatic Solenoid Valve Pilot/Spring M14 x 1.5, BSPP, M30 x 1 Thread, 3 Ports, 5/2 3/2 5/3 Valve Function 03041302

Name: Norgren Pneumatic Solenoid Valve Pilot/Spring M14 x 1.5, BSPP, M30 x 1 Thread, 3 Ports, 5/2 3/2 5/3 Valve Function 03041302
Brand: NORGREN
SKU: 278100
Price: 25287.31 INR
Availability: InStock



Category Pneumatic Solenoid Valve Brand NORGREN Condition New

Specifications

Country of Origin	Czech Republic
Brand	Norgren
Body Material	Die Cast Zinc
Maximum Operating Pressure	10 bar
Model	03041302
Mount Type	Panel, Through Hole
Series	03
Number Of Ports	3
Maximum Operating Temperature	70°C
Thread Size	1/8 in
Port Type	PIF, Threaded
Number of Positions	3
Port Size	G 1/8
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Actuation Type	Pilot/Spring
Maximum Flow Rate	335L/min
Connection Thread Standard	M14 x 1.5, BSPP, M30 x 1
Minimum Pilot Pressure	2bar

Key Features

Features a 3-port design for versatile pneumatic flow control.

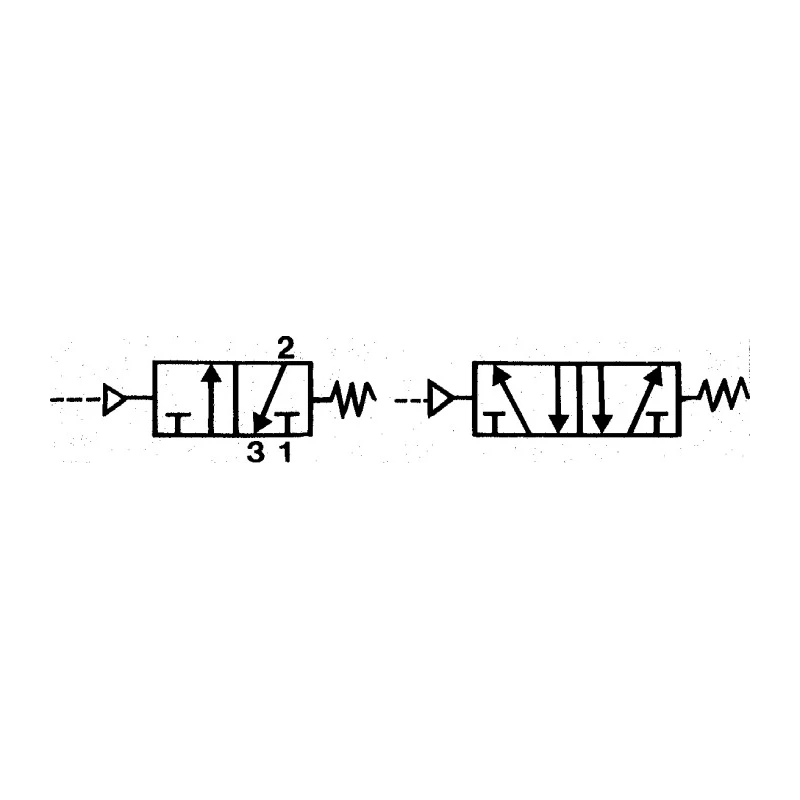

Supports valve functions including 5/2, 3/2, and 5/3 for multiple operational modes.
Maximum flow rate of 335 liters per minute ensures efficient air handling.
Capable of operating at pressures up to 10 bar for demanding applications.
Constructed with a durable die cast zinc body and nitrile rubber seals for longevity.
Operates reliably in temperature ranges between 0°C and 70°C.
Designed for panel or through-hole mounting for installation flexibility.
Equipped with a spring mechanism for quick reset after actuation.

Product Description

Norgren 03041302 pneumatic solenoid valve pilot/spring type is engineered with precision for effective pressure control in industrial pneumatic systems. Featuring M14 x 1.5 BSPP and M30 x 1 threaded connections, this valve offers seamless integration with standardised piping and fittings.

This valve features a triple-port configuration and supports 5/2, 3/2, and 5/3 valve functions, providing flexible flow management options. It supports a high flow capacity of up to 335 liters per minute and operates under a maximum pressure of 10 bar, making it suitable for robust industrial environments.

The die cast zinc body combined with nitrile rubber seals ensures durability and resistance to wear, while the operating temperature range of 0°C to 70°C enables reliable performance in varied conditions. The panel and through-hole mount design allows versatile installation options. The internal spring provides an automatic reset function immediately after actuation, enhancing control responsiveness.

Applications include manufacturing systems, automotive machinery, construction projects, and various automation equipment where pneumatic precision and reliability are critical. 3-port pilot/spring actuation type for precise pressure control.

High flow rate capacity of 335 L/min suitable for heavy-duty systems. Robust die cast zinc body with nitrile rubber seals for long service life. Wide operating temperature range from 0°C to +70°C for industrial viability.

Mounting flexibility with panel and through-hole options. Maximum operating pressure of 10 bar for high-performance applications. Supports 5/2, 3/2, and 5/3 valve functions for multi-position control. Manufactured in Czech Republic ensuring quality standards.

Explore more Pneumatic Solenoid Valves and industrial valves on EnvMart for reliable pneumatic and fluid power solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum flow rate of this model is 335 liters per minute, ensuring efficient air handling in pneumatic systems.

This valve can operate at a maximum pressure of 10 bar, making it suitable for demanding applications.

It supports multiple valve functions including 5/2, 3/2, and 5/3, providing flexible flow management options.

The operating temperature range for this pneumatic solenoid valve is between 0°C and 70°C, allowing for reliable performance in various conditions.

This valve is designed for both panel and through-hole mounting, providing installation flexibility.

The valve features a die cast zinc body and nitrile rubber seals, ensuring durability and resistance to wear.

It has M14 x 1.5 BSPP and M30 x 1 threaded connections, allowing for seamless integration with standard piping.

This valve utilizes a pilot/spring actuation type, which provides an automatic reset function immediately after actuation.

The minimum pilot pressure required for this valve to operate is 2 bar.

This valve features a 3-port design, allowing for versatile pneumatic flow control.

This model is manufactured in the Czech Republic, ensuring adherence to quality standards.

This pneumatic solenoid valve is suitable for applications in manufacturing systems, automotive machinery, construction projects, and various automation equipment.
