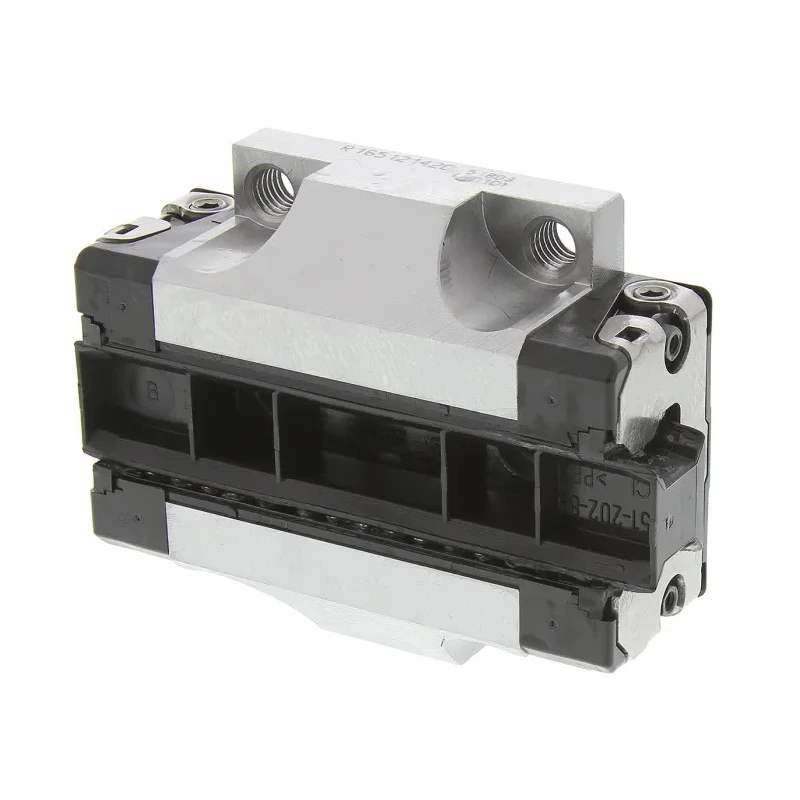

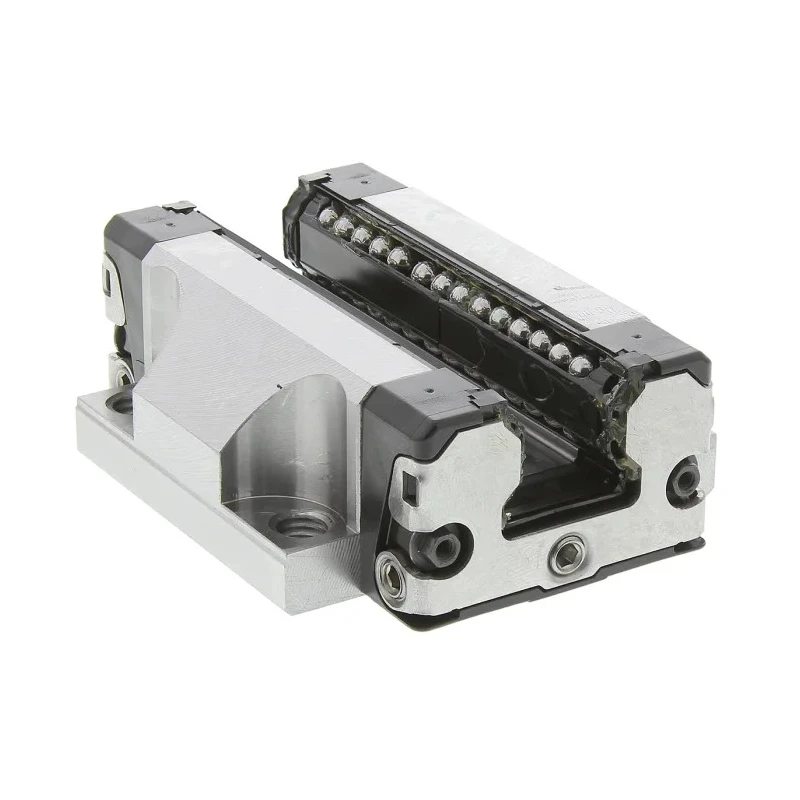

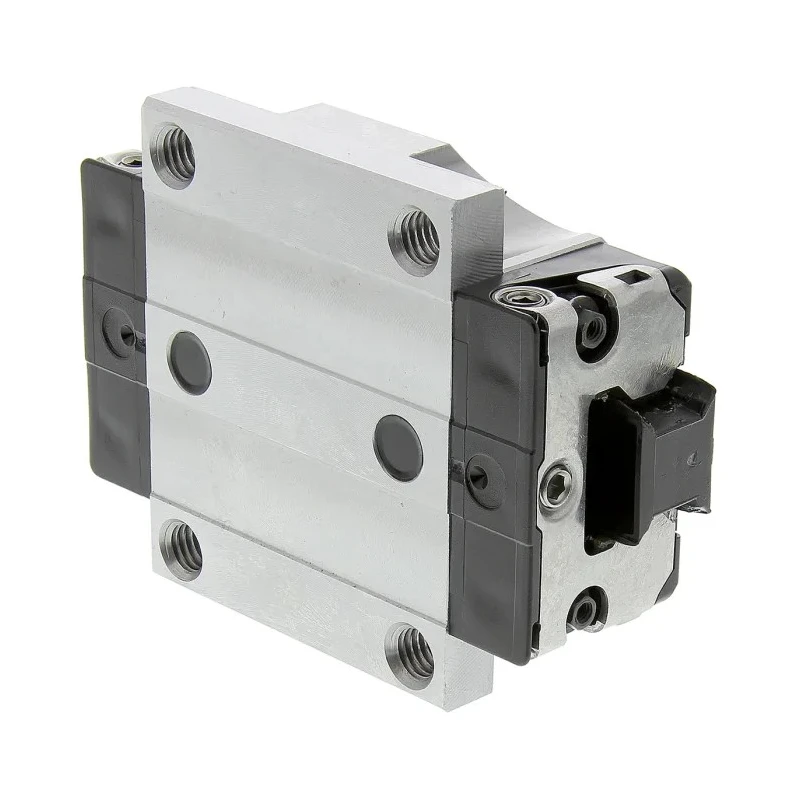

Bosch Rexroth Guide Block BSHP Series with 28600 N Dynamic Load R165121420

Bosch Rexroth R165121420 Guide Block from the BSHP Series offers a dynamic load rating of 28600 N and static load rating of 35900 N, crafted in standard steel with carriage dimensions of 86.2 mm length and 70 mm width. This guide block is engineered for high load capacity and rigidity in all directions, making it ideal for demanding industrial linear motion applications.

The product features a 2% preload to ensure superior rigidity under operational load conditions. It is equipped with an internal lubrication system accompanied by metal-threaded lube ports on all sides for convenient maintenance, along with integral all-around sealing to protect against environmental contaminants and extend service life.

Built to comply with DIN ISO14728-1 standards, this guide block assures interchangeability between blocks and rails regardless of accuracy and preload grades, facilitating ease of integration into existing systems. Its steel construction promotes durability and strength.

This series is designed for high dynamic performance, supporting speeds up to 5 meters per second and acceleration reaching 500 meters per second squared, suitable for use in industrial machinery, automation systems, and precision equipment requiring reliable linear guidance.

The R165121420 Guide Block is part of Bosch Rexroth's ball rail systems known for precision manufacturing, enabling component elements to be replaced individually without compatibility issues. These features collectively enhance operational efficiency and reduce downtime in mechanical and fluid power applications.

Manufactured with standard steel for durability and reliability. Carriage length of 86.2 mm and width of 70 mm accommodate precision mounting. Conforms to DIN ISO14728-1 standards ensuring quality and interchangeability.

Features 2% preload for high rigidity in all load directions. Internal lubrication system with metal-threaded lube ports on all sides for maintenance ease. Integral all-round sealing enhances operational protection against contaminants.

Suitable for high dynamic applications with max speed of 5 m/s and acceleration up to 500 m/s². Supports limitless interchangeability among blocks and rails regardless of preload grades. Explore the comprehensive range of Bosch Rexroth Linear Guide Blocks and bearings for precision linear motion equipment and industrial automation needs at EnvMart.
