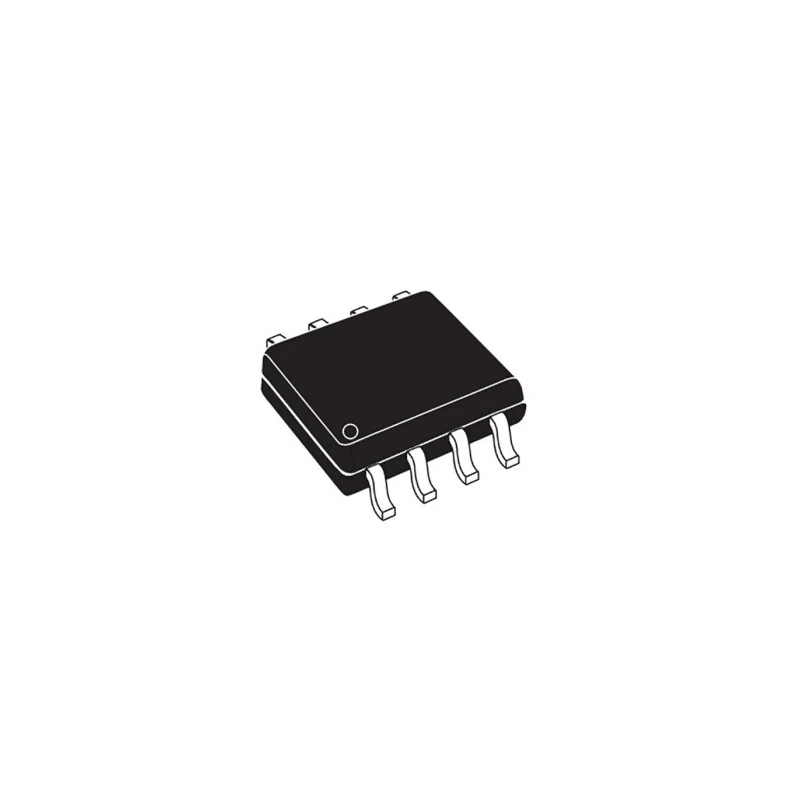

STMicroelectronics Bidirectional Current Sensing Amplifier Single Channel 8-Pin SO 2.7-5.5 V TSC2012IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSC2012IDT |
| Mount Type | Surface |
| Output type | Bidirectional |
| Series | TSC2012 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 5mA |
| GBP - Gain Bandwidth Product | 490kHz |
| CMRR - Common Mode Rejection Ratio | 115dB |
Key Features
- Operates from 2.7 V to 5.5 V supply voltage range.
- High common mode rejection ratio (CMRR) of 115 dB ensures accurate current sensing.
- Single channel current sensing amplifier in an 8-pin SO package.
- Gain bandwidth product of 490 kHz enables fast and precise signal amplification.
- Supports operating temperatures from -40°C to 125°C, suitable for rugged applications.
- Low quiescent current of 5 mA for energy-efficient operation.
- Bidirectional output type facilitates measurement of current flow in both directions.
- Compact device dimensions with 5 mm length and 1.75 mm height.
Product Description
STMicroelectronics TSC2012IDT is a high-precision, bidirectional current sensing amplifier designed for surface mount applications. Operating over a supply voltage range of 2.7 V to 5.5 V, it accurately senses current via a shunt resistor across common mode voltages from -20 V to +70 V. This device features a high common mode rejection ratio of 115 dB, minimizing error in measurements even under noisy conditions.
Its gain bandwidth product of 490 kHz enables rapid and precise amplification of sensed currents. Packaged in a compact 8-pin SO form factor with dimensions of 5 mm length and 1.75 mm height, it is well-suited for space-conscious electronic designs.
The output is bidirectional, allowing measurement of current flow in either direction, facilitating current monitoring, overcurrent protection, and feedback loops in various industrial, automotive, and electronic applications. Operating reliably from -40°C to 125°C, it is suitable for demanding environments.
The device boasts a low quiescent current of 5 mA, contributing to energy-efficient system designs. Its surface mount mount type ensures convenient PCB assembly. Operates with supply voltages between 2.7 V and 5.5 V. 8-pin SO package type with surface mount design.
High common mode rejection ratio of 115 dB improves measurement accuracy. 490 kHz gain bandwidth product supports responsive sensing. Functional across an extended temperature range from -40°C to 125°C. Bidirectional output type enables current sensing in both directions.
Compact dimensions facilitate integration into dense circuitry. Low supply current of 5 mA minimizes power consumption. Ideal for precision current measurement, industrial monitoring, HVAC, automotive control, and electronic device feedback systems.
This STMicroelectronics product offers reliable and precise current sensing capabilities compatible with various industrial and laboratory uses. It ensures enhanced system performance in monitoring and controlling current flow effectively.
Explore the latest range of electronic components at EnvMart for quality semiconductor amplifiers and sensors.
Explore more products in our Current Sensing Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2.7 V to 5.5 V.
The gain bandwidth product of the TSC2012IDT is 490 kHz, allowing for rapid and precise amplification of sensed currents.
It features a high common mode rejection ratio of 115 dB, which helps minimize measurement errors in noisy conditions.
The device operates reliably across an extended temperature range from -40°C to 125°C, making it suitable for demanding environments.
This unit is a single channel current sensing amplifier.
It comes in an 8-pin SO package, with dimensions of 5 mm in length and 1.75 mm in height.
The output type of this model is bidirectional, allowing for current measurement in both directions.
The amplifier has a low quiescent current of 5 mA, contributing to energy-efficient operation.
This model supports surface mount installation, facilitating convenient PCB assembly.
It is suitable for precision current measurement, industrial monitoring, HVAC, automotive control, and electronic device feedback systems.
The country of origin for this product is India.
The high common mode rejection ratio (CMRR) improves measurement accuracy by reducing the effect of noise on current sensing.
