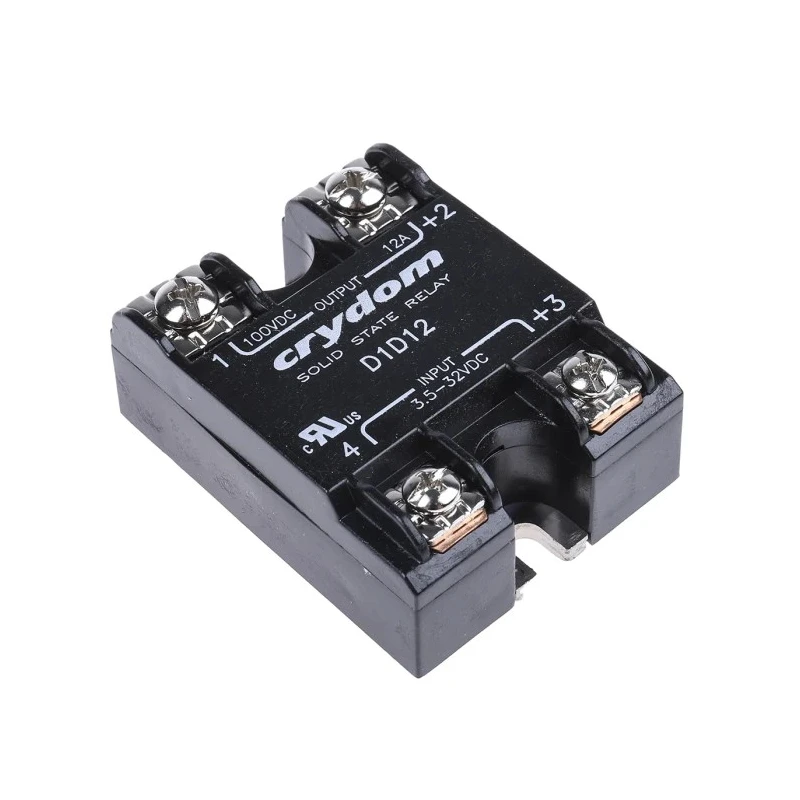

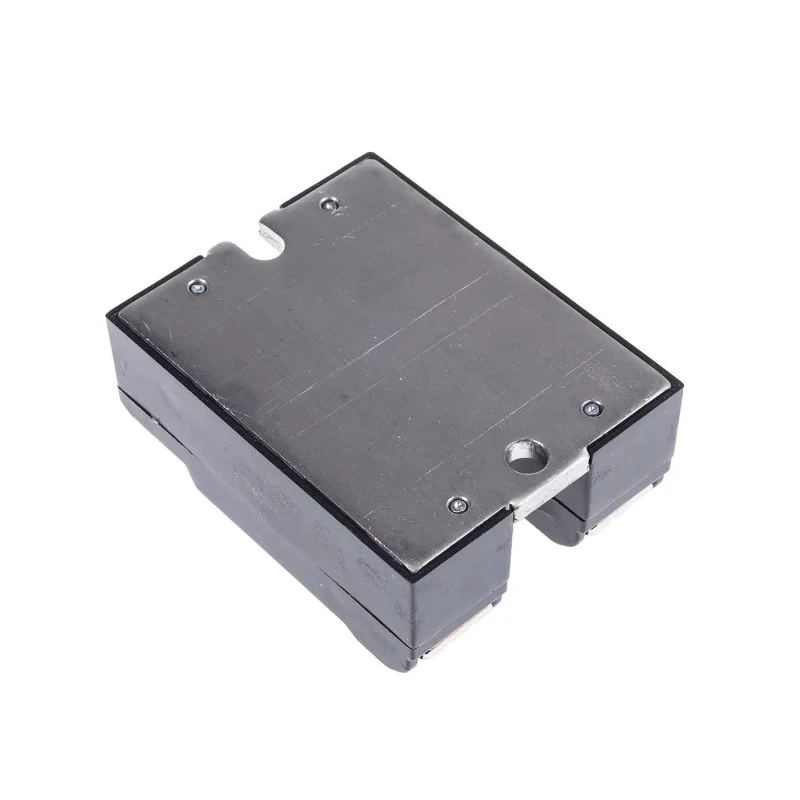

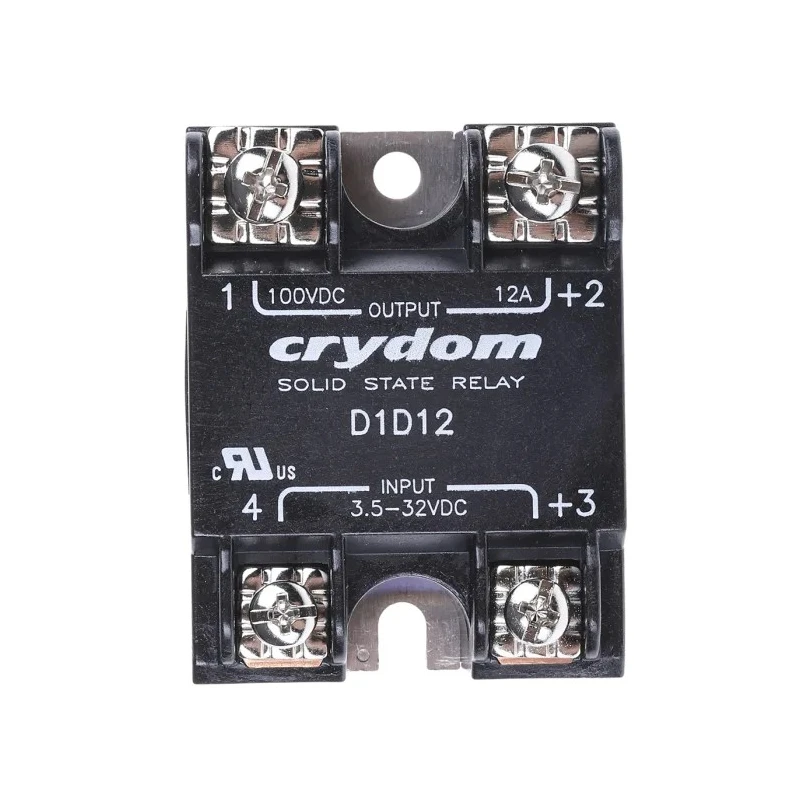

Crydom D1 Series Solid State Relay, 12A Load, Panel Mount, 100V Load Voltage, 32V Control D1D12

Free Delivery in India | Lowest Global Shipping Charges

Crydom D1 Series Solid State Relay, 12A Load, Panel Mount, 100V Load Voltage, 32V Control D1D12

Name: Crydom D1 Series Solid State Relay, 12A Load, Panel Mount, 100V Load Voltage, 32V Control D1D12
Brand: Crydom
SKU: 273434
Price: 107.01 USD
Availability: InStock



Category Solid State Relay Brand Crydom Condition New

Specifications

Country of Origin	Mexico
Brand	Crydom
Height	23mm
Length	45.7mm
Model	D1D12
IP Rating	IP20
Width	22.6mm
Mount Type	Panel
Output type	SCR
Series	D1
Maximum Operating Temperature	80°C
Capacitance	8pF
Minimum Operating Temperature	-20°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	12A
Standards/Approvals	CSA, RoHS, UR
Maximum Load Voltage	100V
Minimum Control Voltage	3.5V dc
Maximum Control Voltage	32V
Off State Leakage Current	0.3mA

Key Features

This relay supports a maximum load current of 12A for efficient power control.
Panel mount type with screw terminals for secure installation.
Features zero cross switching function to reduce electrical noise.
Wide operating temperature range from -20°C to 80°C for versatile use.
IP20 rated housing with flame-retardant material ensures safety and durability.

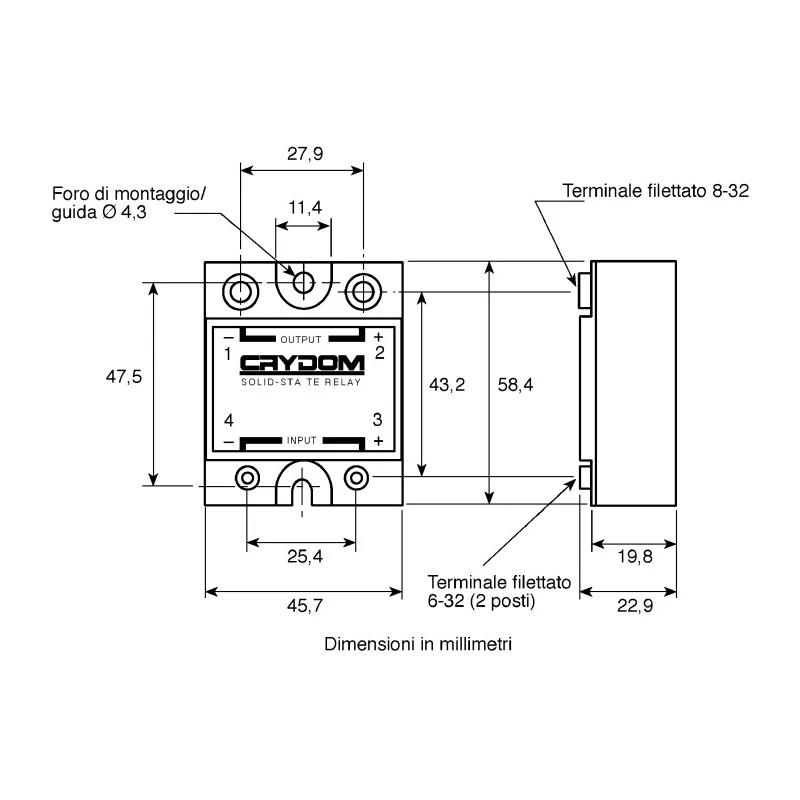

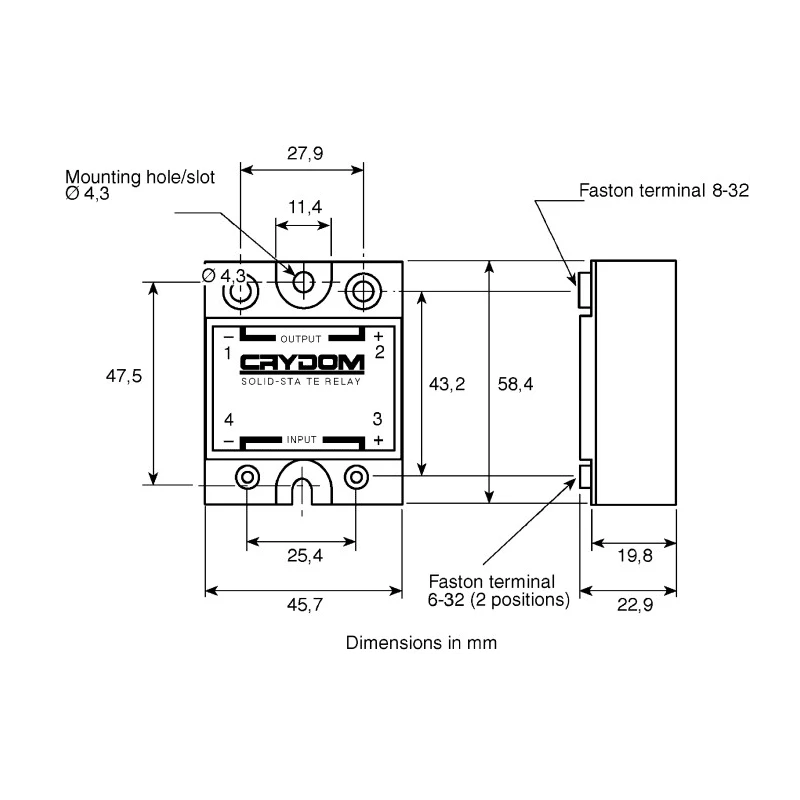

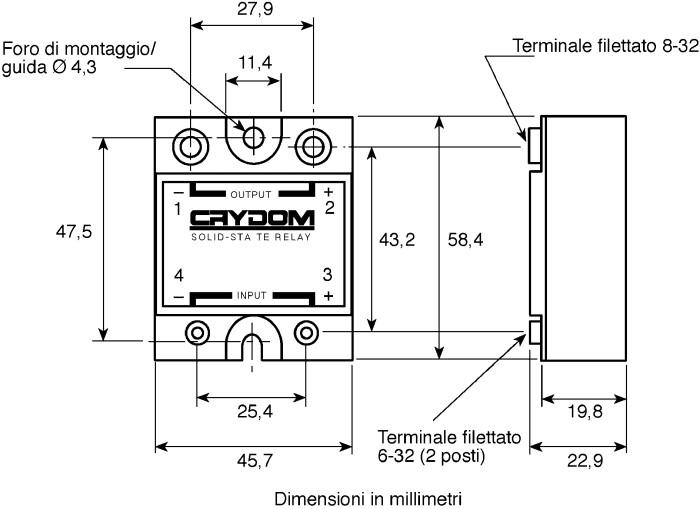

Compact dimensions of 45.7mm length, 22.6mm width, and 23mm height save panel space.
Low off-state leakage current of 0.3mA to minimize power loss.
Output type is SCR, suitable for DC load switching.

Product Description

Crydom D1D12 Solid State Relay is a high-quality panel mount relay designed for controlling DC loads up to 12A and 100V. This device features a 32V control voltage range, providing precise actuation for motors, lamps, and solenoids in industrial and automation settings.

The relay housing is constructed with flame-retardant material and provides an IP20 protection rating, supporting safe operation under harsh conditions. It operates reliably within a temperature range from -20°C to +80°C, making it suitable for a wide variety of environments.

Zero cross switching functionality reduces electrical noise during switching events, enhancing system stability and longevity. The relay utilizes screw terminals for easy and secure panel mounting with SEMS fasteners included, ensuring firm attachment and preventing accidental disconnection.

With compact dimensions (45.7mm length, 22.6mm width, 23mm height), this relay is ideal for space-constrained installations. It features a low off-state leakage current of just 0.3mA and an output type based on silicon-controlled rectifiers (SCR), optimizing DC load control efficiency.

Crydom D1D12 meets key industry standards including CSA, RoHS, and UR, confirming its safety and compliance for commercial and industrial use.

This relay is applicable in industrial automation, electrical control panels, HVAC systems, manufacturing lines, and other electrical control applications requiring reliable DC load switching and long operational lifespan.

This relay supports a maximum load current of 12A for efficient power control. Panel mount type with screw terminals for secure installation. Features zero cross switching function to reduce electrical noise. Wide operating temperature range from -20°C to 80°C for versatile use.

IP20 rated housing with flame-retardant material ensures safety and durability. Compact dimensions of 45.7mm length, 22.6mm width, and 23mm height save panel space. Low off-state leakage current of 0.3mA to minimize power loss.

Output type is SCR, suitable for DC load switching. Complies with CSA, RoHS, and UR standards for reliability and safety. Explore more products in the Solid State Relay category at EnvMart for diverse electrical and automation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Crydom D1D12 solid state relay supports a maximum load current of 12A.

This model operates with a control voltage range of 3.5V to 32V DC.

The output type of the D1D12 relay is based on silicon-controlled rectifiers (SCR), making it suitable for DC load switching.

The dimensions of the Crydom D1D12 relay are 45.7mm in length, 22.6mm in width, and 23mm in height.

This relay operates reliably within a temperature range of -20°C to +80°C.

The housing of the D1D12 relay has an IP20 rating, indicating protection against solid objects but not against water.

The Crydom D1D12 is a panel mount relay that uses screw terminals for secure installation.

The off-state leakage current for the D1D12 relay is 0.3mA, which helps minimize power loss.

Yes, the D1D12 relay features zero cross switching functionality to reduce electrical noise during switching events.

This relay complies with CSA, RoHS, and UR standards, confirming its safety and reliability for commercial use.

The D1D12 relay is applicable in industrial automation, electrical control panels, HVAC systems, and manufacturing lines requiring reliable DC load switching.

The housing of the D1D12 relay is constructed from flame-retardant material, ensuring safety and durability.
