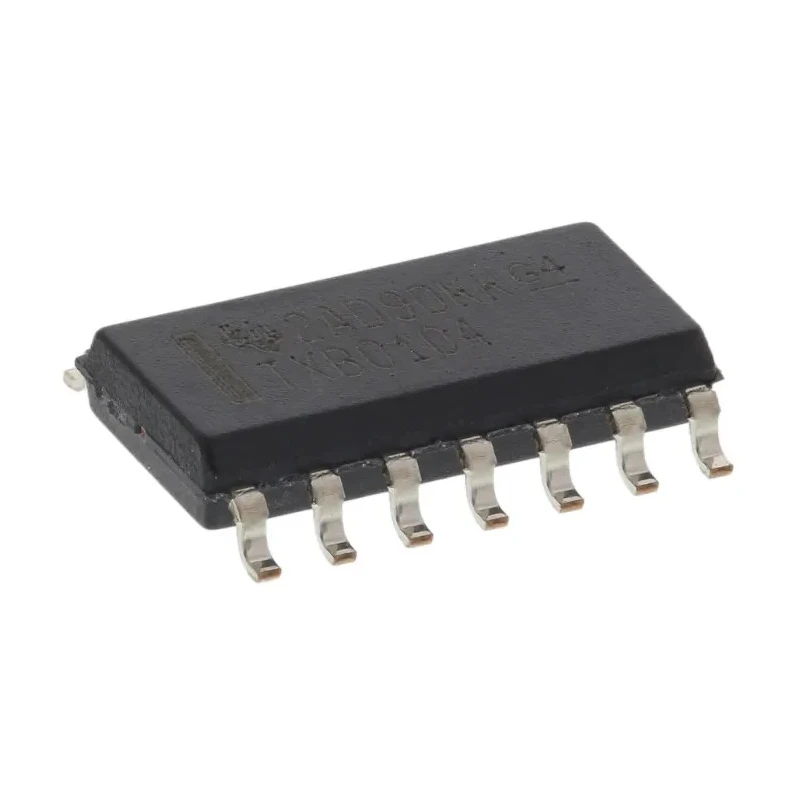

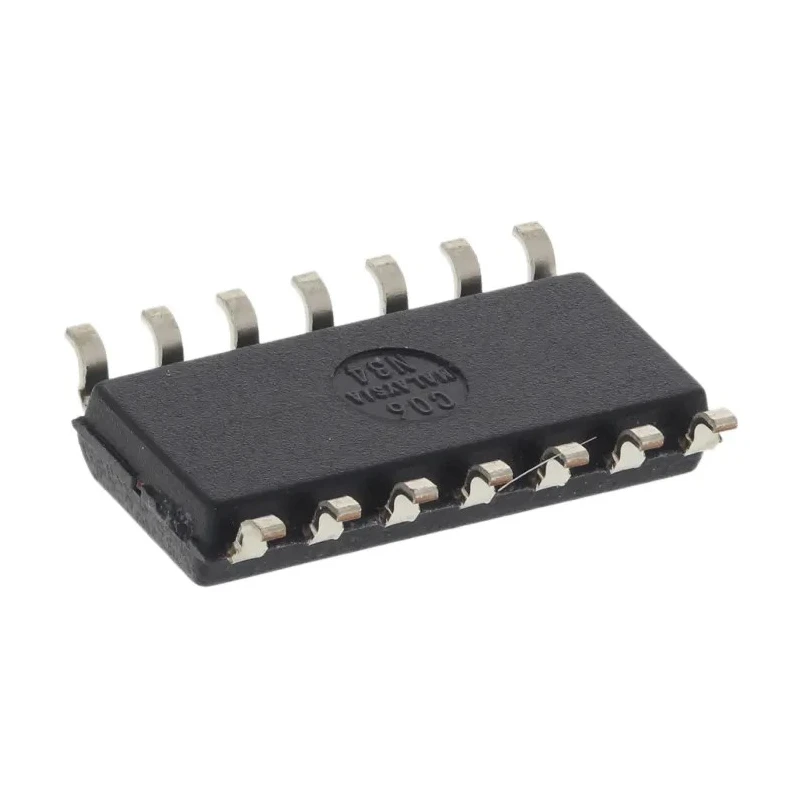

Texas Instruments Voltage Level Shifter Voltage Level Translator 2 Elements, 14-Pin SOIC TXB0104D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | TXB0104D |
| Mount Type | Surface |
| Output type | 3 State |
| Series | TXB0104 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | Translator |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -0.02mA |
| Maximum Propagation Delay Time @ CL | 4ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 20μA |
| Translation | Voltage Level |
Key Features
- Operates with supply voltage from 1.2V to 5.5V.
- Maximum propagation delay time of 4 nanoseconds at load capacitance.
- Features 3-state output type with a pin count of 14.
- Supports voltage level translation with maximum low level output current of 20 microamperes.
- Operational temperature range from -40°C to 85°C for reliable performance.
- Surface mount package suitable for compact PCB layouts.
- Designed for logic translation applications in semiconductor devices.
- Complies with Texas Instruments TXB0104 series with stable performance and durability.
Product Description
Texas Instruments TXB0104D is a voltage level shifter designed for efficient voltage level translation between different logic levels in electronic circuits. This bi-directional translator IC contains 2 functional elements within a 14-Pin SOIC surface mount package, providing a compact solution ideal for integration into semiconductor and embedded system applications.
Operating within a supply voltage range of 1.2V to 5.5V, the TXB0104D ensures flexible compatibility with various power rails. It features a maximum propagation delay time of 4ns at standard load capacitance, enabling fast signal transitions suited for high-speed logic interfacing. The 3-state output functionality supports multiple connected outputs without interference, enhancing the versatility of use in complex systems.
The device sustains operation in temperature environments from -40°C to 85°C, meeting the requirements for industrial and commercial electronic equipment. Additionally, the device delivers a maximum low level output current of 20μA and a maximum high level output current of -0.02mA, optimizing power efficiency during signal translation.
Typical applications of the TXB0104D include interfacing between microcontrollers, FPGAs, and other logic families operating at different voltage levels. It is ideal for embedded electronics, consumer devices, industrial control systems, and communication equipment that require reliable level shifting between components.
Operates over a wide voltage range from 1.2V to 5.5V supply voltage. Bi-directional voltage level translation for flexible logic interfacing. Fast propagation delay time ensures high-speed signal transfer. 14-pin SOIC package suitable for surface mounting and compact circuit design.
Wide operating temperature range supports industrial applications. 3-state outputs allow better bus management in complex systems. Low output current maintains power efficiency. Part of the well-established Texas Instruments TXB0104 series.
Explore additional Texas Instruments semiconductor components and Voltage Level Shifter solutions on EnvMart for reliable and advanced electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 1.2V to 5.5V, allowing compatibility with various power rails.
The maximum propagation delay time is 4 nanoseconds at standard load capacitance, enabling fast signal transitions.
It features a 3-state output type, which allows for better bus management in complex systems.
The operational temperature range is from -40°C to 85°C, suitable for industrial applications.
This model contains 2 functional elements within its design.
It has a pin count of 14, making it suitable for compact PCB layouts.
The maximum low level output current is 20 microamperes.
It comes in a 14-Pin SOIC surface mount package, ideal for integration into electronic circuits.
It functions as a voltage level translator, enabling bi-directional voltage level shifting.
The maximum high level output current is -0.02 mA.
It is suitable for interfacing between microcontrollers, FPGAs, and other logic families operating at different voltage levels.
The country of origin is India.
