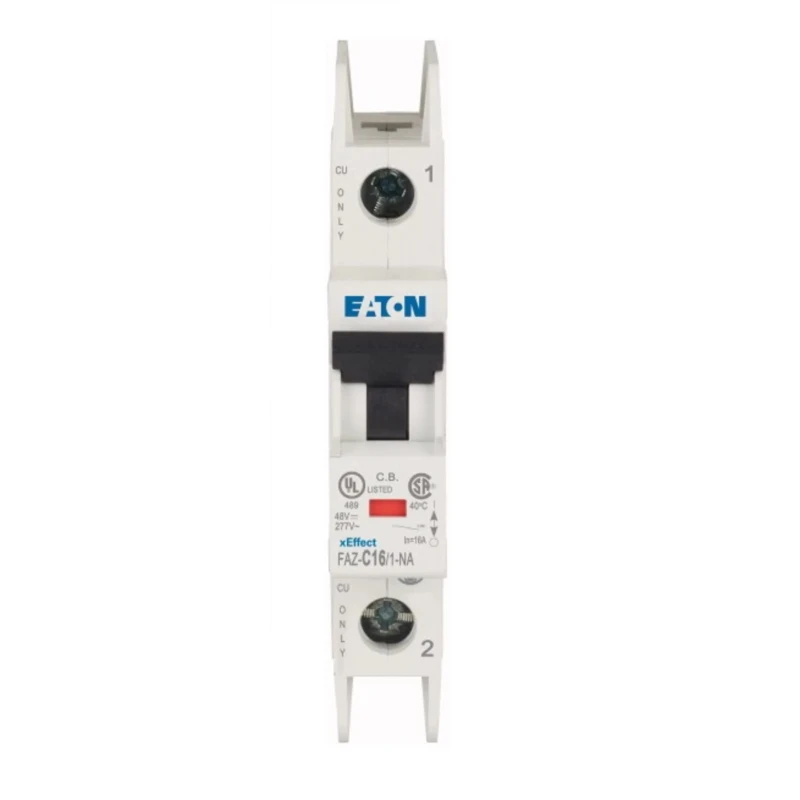

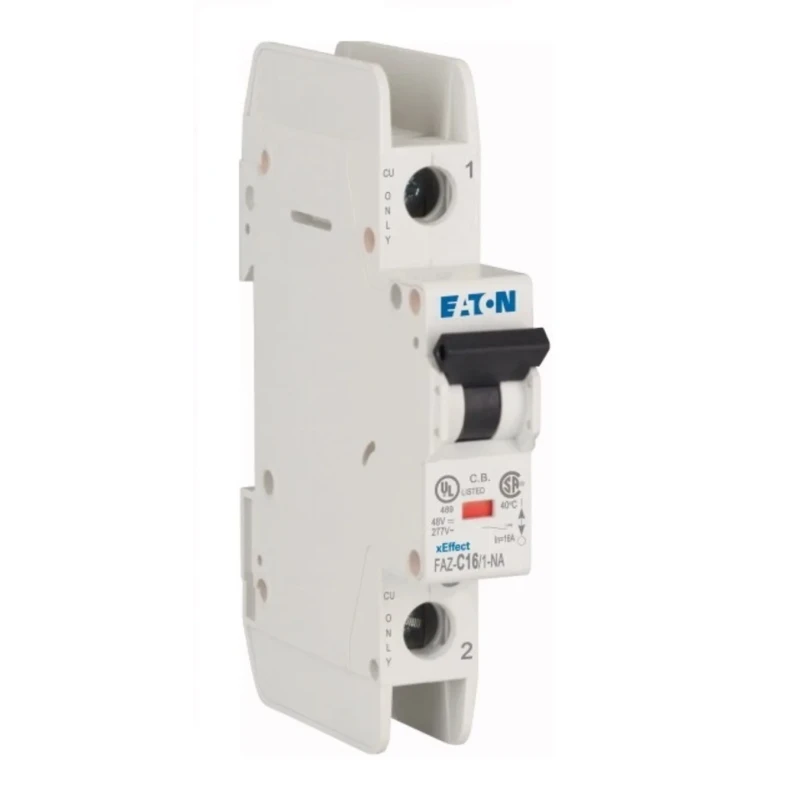

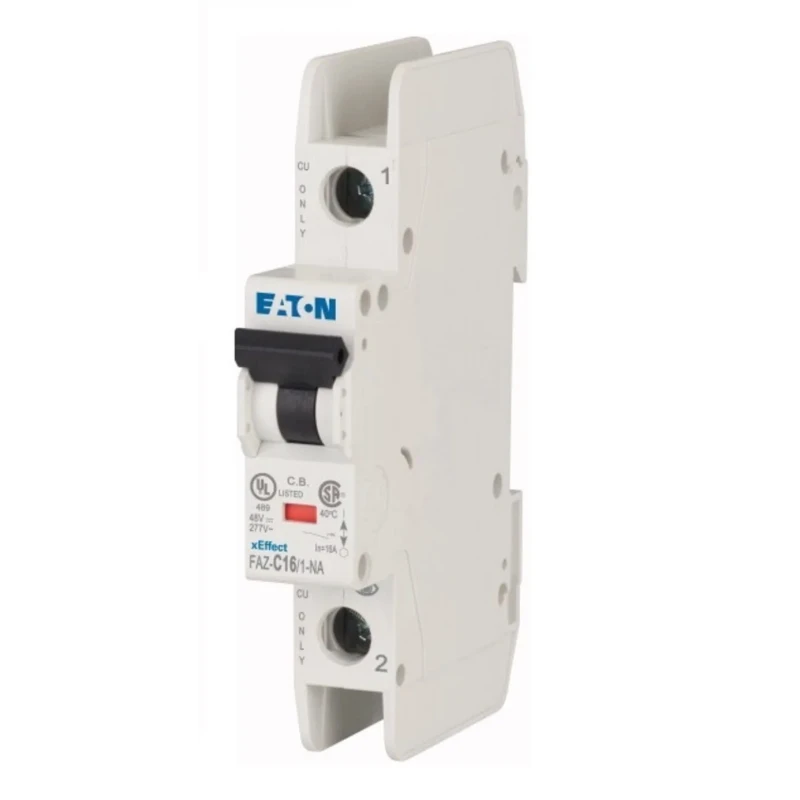

Cooper Bussmann xEffect FAZ Miniature Circuit Breaker, 1-Pole, 16A, Type C, 415V AC, 48V DC, 10kA 102090 FAZ-C16/1-NA
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Cooper Bussmann |
| Height | 80mm |
| Model | 102090 FAZ-C16/1-NA |
| Depth | 80mm |
| IP Rating | IP20 |
| Width | 66mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | FAZ |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Rated AC Voltage | 415V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Eaton Bussmann Series Non Resettable Fuse 3A, 600V acBrand | Cooper Bussmann |
Key Features
- Designed for use with both AC and DC voltages up to 415V AC and 48V DC respectively.
- Provides a breaking capacity of 10kA to safely interrupt high fault currents.
- Mounts easily on DIN rails with a screw-type terminal connection.
- Features thermal magnetic trip mechanism and instantaneous breaking time.
- Equipped with a durable thermoplastic housing and toggle switch for reset functionality.
- IP20 protection rating ensures safety against finger contact and foreign objects larger than 12.5 mm.
- Rated for 10,000 mechanical operations providing long-term dependable performance.
Product Description
Eaton 102090 FAZ-C16/1-NA is a high-quality xEffect series miniature circuit breaker designed for single-pole 16A electrical protections in industrial, commercial, and residential applications.
This MCB is suitable for protecting circuits against overcurrent and short circuits, offering break capacity up to 10kA to handle abrupt surges effectively. It operates with Type C tripping characteristics suitable for general purpose applications with moderate inductive loads.
The device supports both AC and DC supply voltages rated at 415V AC and 48V DC respectively, enabling versatile usage across different electrical environments.
Its thermal magnetic tripping mechanism allows precise and quick fault detection, while the toggle reset switch provides convenient manual operation and prevents bypassing for enhanced safety.
The MCB is designed for effortless DIN rail mounting and uses secure screw terminal connections ensuring reliable installation. It incorporates a robust thermoplastic housing that withstands environmental stresses, contributing to long service life.
With IP20 finger-safe protection, this breaker prevents accidental contact with live components, ensuring personnel protection. Mechanical durability is assured with a lifespan of 10,000 operation cycles, making it a reliable component in electrical distribution panels.
Designed for 16A current rating and Type C tripping suitable for domestic and light industrial use. Compatible with 415V AC and 48V DC supply systems, supporting a breaking capacity of 10kA. DIN rail mounting with screw terminals for easy installation.
Thermal magnetic trip unit with instantaneous breaking time for effective protection. Durable thermoplastic casing and manual toggle switch for reset and fault clearance. IP20 protection rating ensuring finger-safe operation.
Compact design with dimensions 80mm (H) x 66mm (W) x 80mm (D). Rated mechanical endurance of 10,000 cycles for long-term reliability.
This Eaton miniature circuit breaker is ideal for use in industrial automation, electrical distribution, commercial buildings, and residential consumer units, providing reliable and safe protection for electrical circuits.
EnvMart offers this product in the Electronics & Electricals category under Miniature Circuit Breakers, ensuring quality and compliance for professional applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A.
It is rated for 415V AC and 48V DC.
The breaking capacity is 10kA, allowing it to safely interrupt high fault currents.
It features a thermal magnetic tripping mechanism.
It is equipped with a toggle switch for manual reset functionality.
The device has an IP20 protection rating, ensuring safety against finger contact and foreign objects larger than 12.5 mm.
The dimensions are 80mm in height, 66mm in width, and 80mm in depth.
It mounts easily on DIN rails using screw terminal connections.
It is suitable for industrial, commercial, and residential applications, providing protection against overcurrent and short circuits.
It is rated for 10,000 mechanical operations, ensuring long-term performance.
This model has Type C tripping characteristics, suitable for general-purpose applications with moderate inductive loads.
Yes, it is designed for use with both AC and DC voltages, specifically up to 415V AC and 48V DC.
