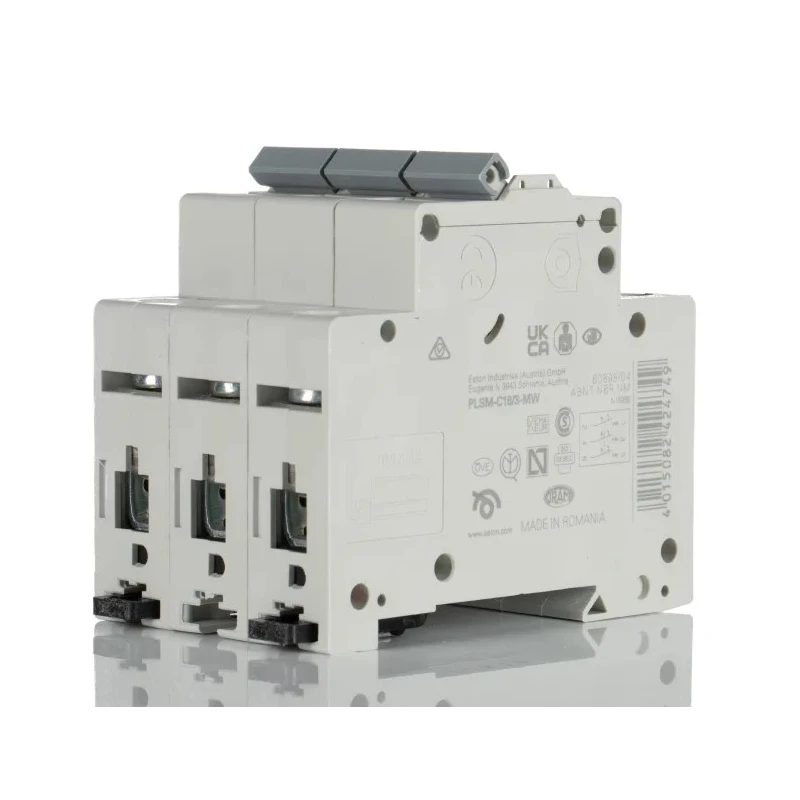

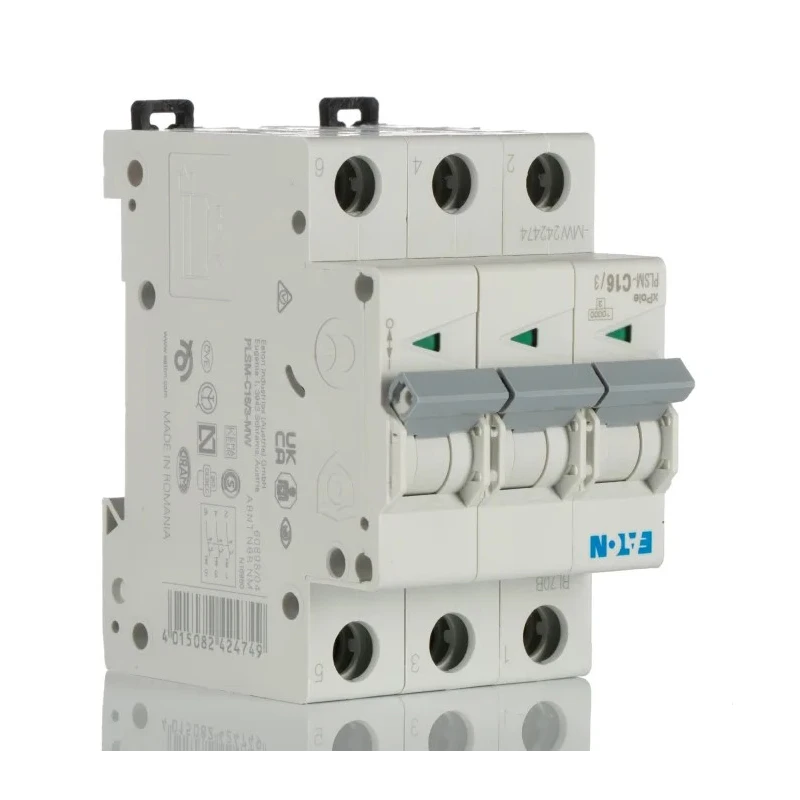

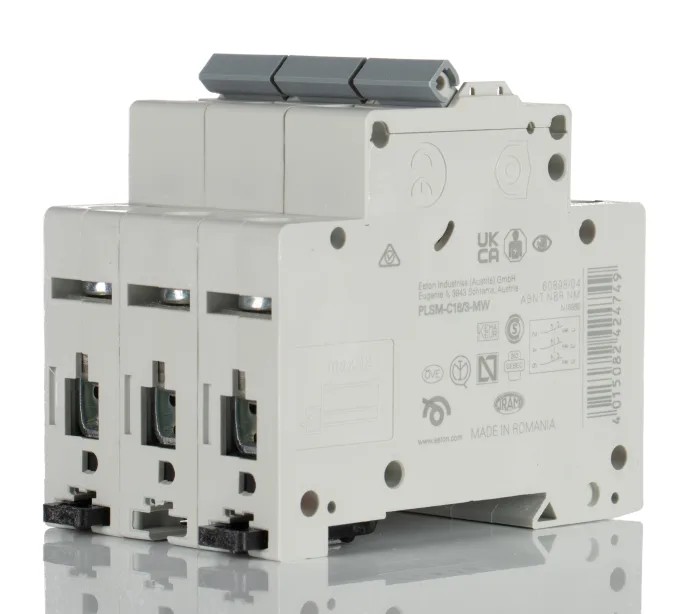

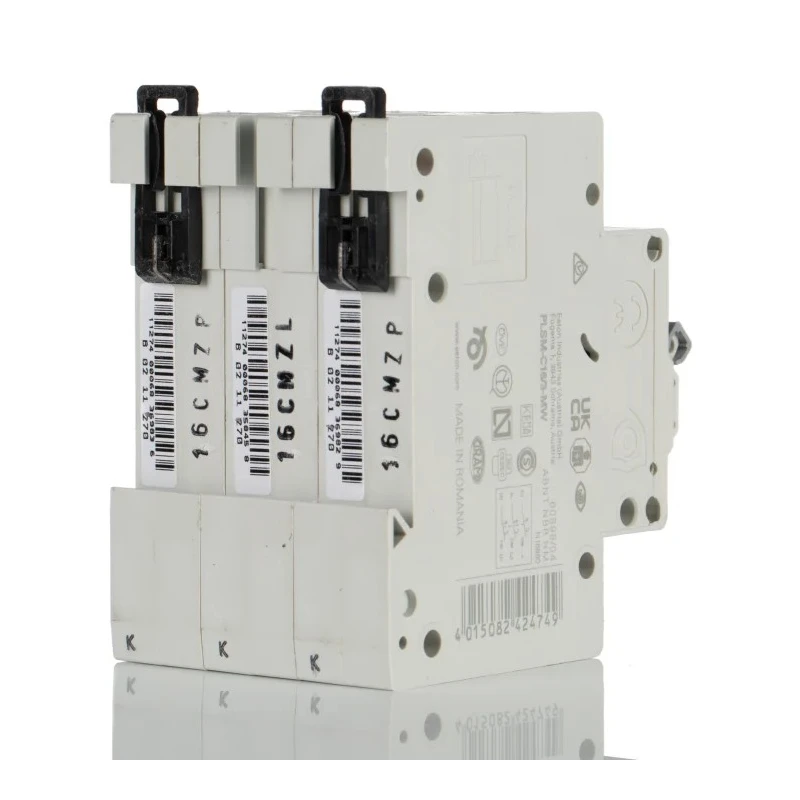

Hager xPole PLSM Series 3-Pole Miniature Circuit Breaker, 16A, Type C, 400V AC, 48V DC, 10kA Breaking 242474 PLSM-C16/3-MW
Specifications
| Country of Origin | India |
|---|---|
| Range | xPole |
| Brand | Hager |
| Model | 242474 PLSM-C16/3-MW |
| Depth | 75mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | PLSM |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type C |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Operating temperature range from -25°C to +75°C ensures performance in challenging environments.
- Energy-efficient with low heat dissipation of 6.9W.
- IP20 rating protects against objects larger than 12mm and fingers.
- Tool-free DIN rail mounting for quick and easy installation.
- Supports low-voltage applications with 400V AC and 48V DC ratings.
- Screw terminals allow secure and fast conductor connections.
- Type C tripping characteristics suitable for commercial and residential installations.
- Standards compliant with IEC/EN 60898-1 for safety and reliability.
Product Description
Eaton 242474 PLSM-C16/3-MW is a high-quality 3-pole Miniature Circuit Breaker from the xPole PLSM series, rated at 16A current with type C tripping characteristics. It features a breaking capacity of 10kA, suitable for residential, commercial, and industrial electrical protection applications.
This MCB supports both 400V AC and 48V DC rated voltages, making it versatile for multiple low-voltage power distribution systems. It operates efficiently with a low heat dissipation of only 6.9W and is rated for operation in temperatures ranging from -25°C to +75°C, ensuring durability in varied environments.
The device’s IP20 protection rating safeguards against foreign objects above 12mm, providing basic enclosure protection ideal for indoor electrical panels. It comes with a tool-free DIN rail mounting system, simplifying installation and maintenance tasks. The unit includes screw terminals for quick, reliable conductor connections.
The circuit breaker meets IEC/EN 60898-1 standards, ensuring compliance with international safety and performance criteria. Additional features include a toggle switch reset actuator and instantaneous break time for rapid response to electrical faults.
Operating temperature range: -25°C to +75°C. Energy-efficient design with low heat dissipation of 6.9W. IP20 protection rating for object ingress prevention. Tool-free DIN rail mounting for easy installation. Rated for 400V AC and 48V DC applications.
Screw terminals enable quick wire termination. Type C tripping characteristic suitable for various load types. Complies with IEC/EN 60898-1 standards. Compact dimensions for space-saving installations. Toggle switch allows easy manual reset.
This MCB is widely used in industrial, commercial, and residential electrical distribution panels to protect circuits from overloads and short circuits. It is ideal for use in automation systems, HVAC, manufacturing, and water treatment plants where reliable circuit protection is essential. Eaton’s xPole PLSM series provides effective circuit control and safety in low-voltage environments.
Explore the Eaton product range and related circuit protection devices on EnvMart for trusted electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this miniature circuit breaker is 16A.
It has a breaking capacity of 10kA.
This model supports rated voltages of 400V AC and 48V DC.
The circuit breaker has an IP20 rating, providing protection against objects larger than 12mm.
The dimensions are 75mm in depth and 80mm in width.
It features tool-free DIN rail mounting for easy installation.
This model has Type C tripping characteristics, suitable for commercial and residential installations.
The operating temperature range is from -25°C to +75°C.
It complies with IEC/EN 60898-1 standards for safety and reliability.
It uses a toggle switch as the reset actuator.
The heat dissipation is low, at only 6.9W.
It is widely used in industrial, commercial, and residential electrical distribution panels for circuit protection.
