Hager xPole Miniature Circuit Breaker 3-Pole 50A Type C 48 V dc 10 kA Breaking Capacity 242479 PLSM-C50/3-MW

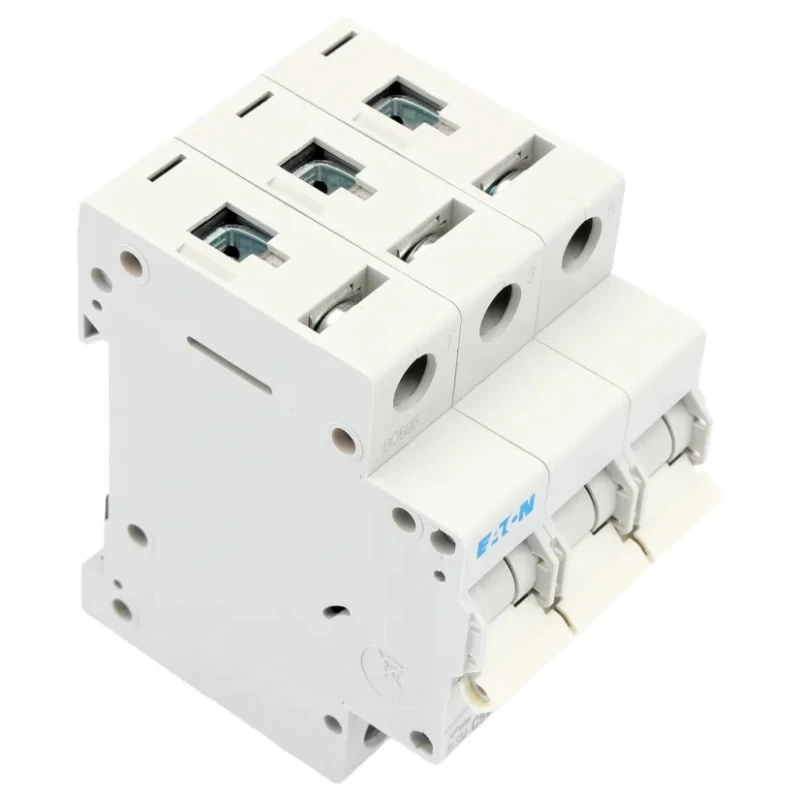

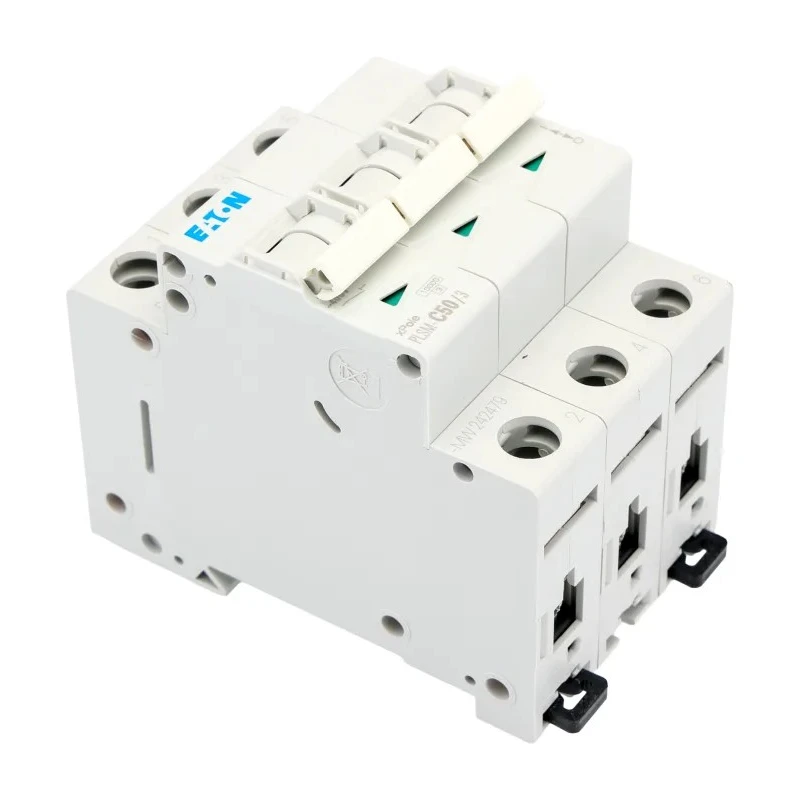

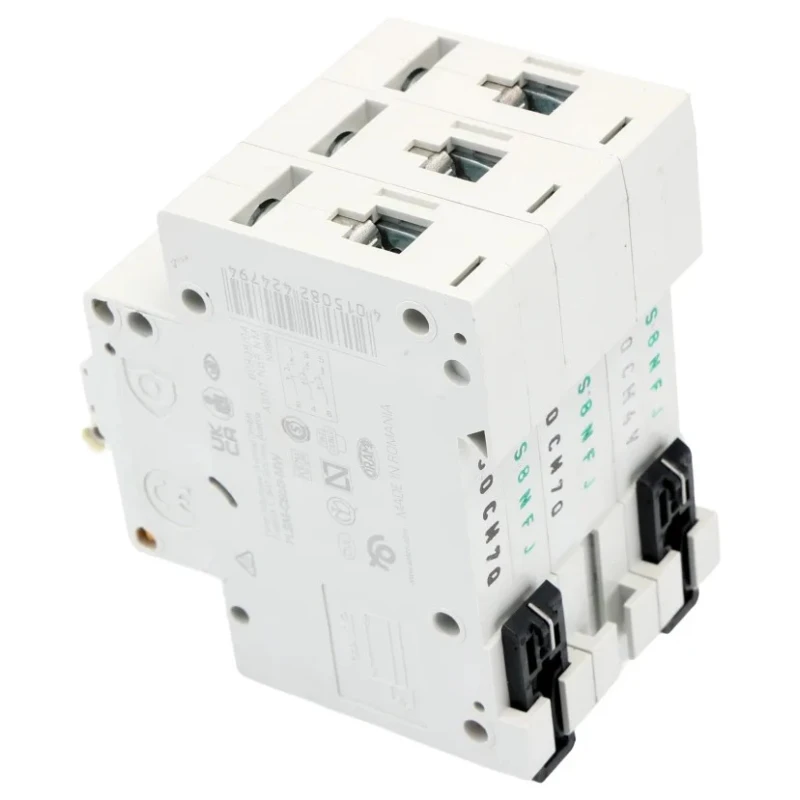

Eaton 242479 PLSM-C50/3-MW is a high-performance miniature circuit breaker with 3 poles and a current rating of 50A. It features Type C tripping characteristics and is rated for 48 V dc operation with a breaking capacity of 10 kA, making it ideal for protecting electrical circuits in various industrial, commercial, and residential environments.

This miniature circuit breaker offers instantaneous break time to ensure rapid interruption of fault conditions, enhancing safety and preventing damage to electrical equipment. Its compact design with a width of 80 mm and depth of 75 mm allows easy integration on standard DIN rails. The toggle switch actuator facilitates straightforward manual resetting of the breaker after trips.

The PLSM series xPole breaker complies with the IEC/EN 60898-1 safety standards and comes with an IP20 rating for protection against solid objects larger than 12.5 mm. It is well suited for applications such as automation systems, industrial machinery circuit protection, and commercial electrical installations requiring reliable overload and surge protection.

Key features include 3 poles for multi-phase circuit protection, a rated current of 50 amperes, Type C characteristics suited for common surge conditions, and a 10 kA breaking capacity to safely interrupt high fault currents. Its DIN rail mounting ensures quick and secure installation in control panels and distribution boards.

Compact 3-pole miniature circuit breaker with 50A rating. Type C tripping characteristics for effective surge protection. Rated DC voltage of 48 V with 10 kA breaking capacity. Instantaneous break time for rapid fault interruption.

Toggle switch actuator for intuitive reset operations. Compliance with IEC/EN 60898-1 safety standards. IP20 protection against solid object ingress. Dimensions: 80 mm width and 75 mm depth for DIN rail installation. Designed for electrical automation, industrial machinery, and commercial system protection.

Choose Eaton xPole PLSM miniature circuit breakers for dependable, high-quality circuit protection solutions. Browse our comprehensive Miniature Circuit Breaker category for more options.
