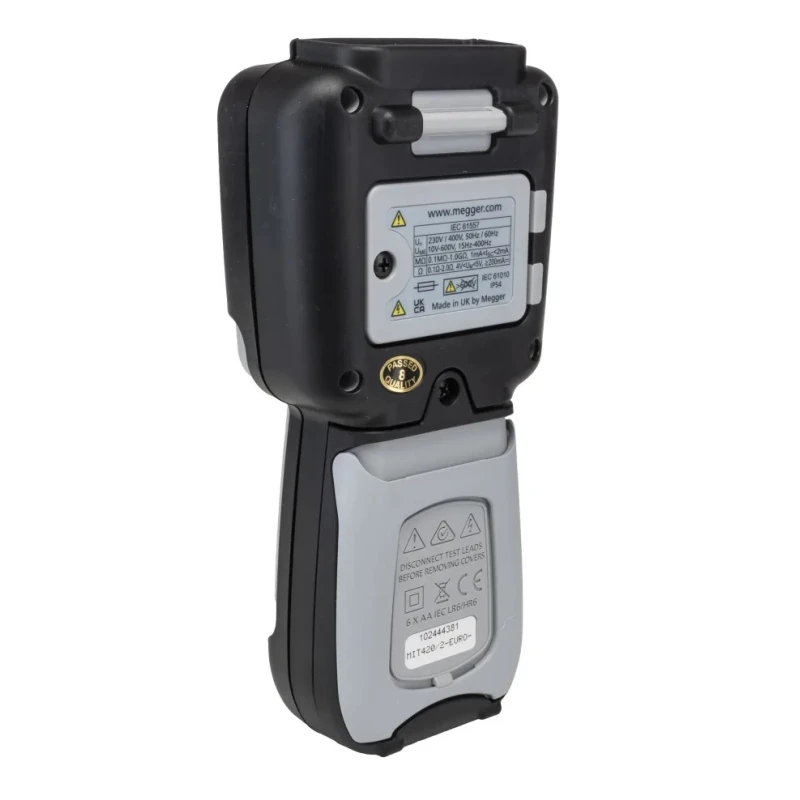

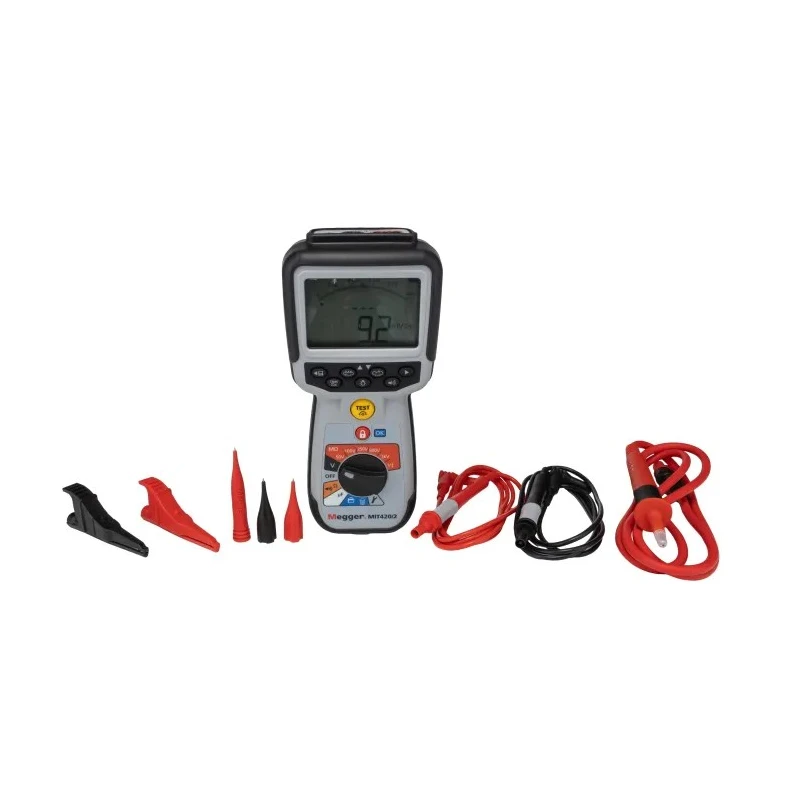

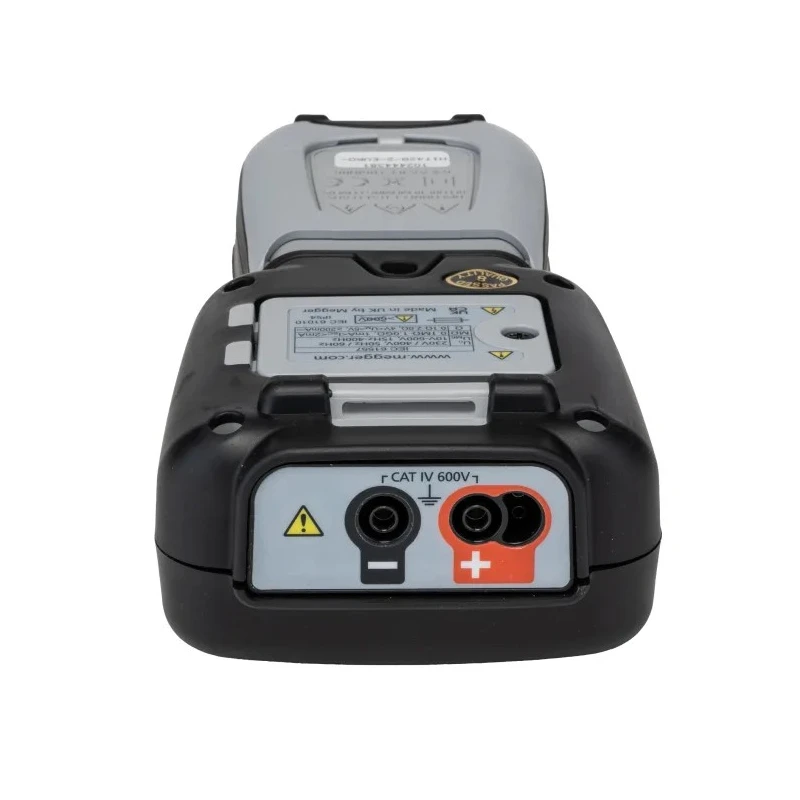

Megger Insulation Tester MIT420 2, 10 V Min, 1 kV Max, 200 GΩ, CAT IV, 205mA Test Current MIT420

Megger MIT420 2 Insulation Tester is a precision measurement instrument designed for evaluating insulation resistance with a test voltage range from 10 V minimum to 1 kV maximum and maximum resistance measurement up to 200 GΩ. It is built to meet high safety standards CAT IV 600 V and is compliant with IEC 61326-1 standards, making it suitable for demanding electrical testing environments.

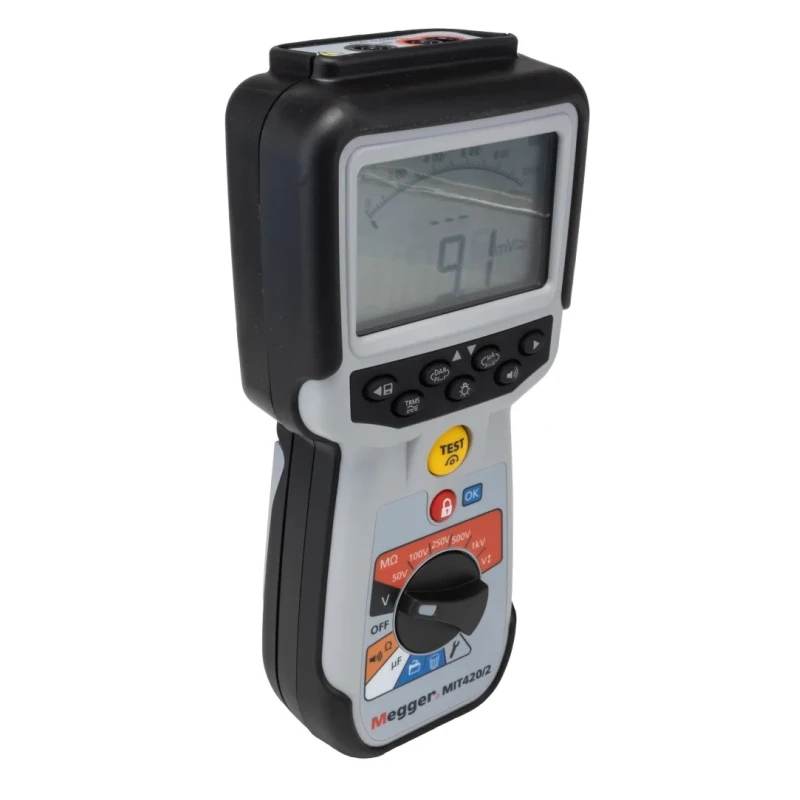

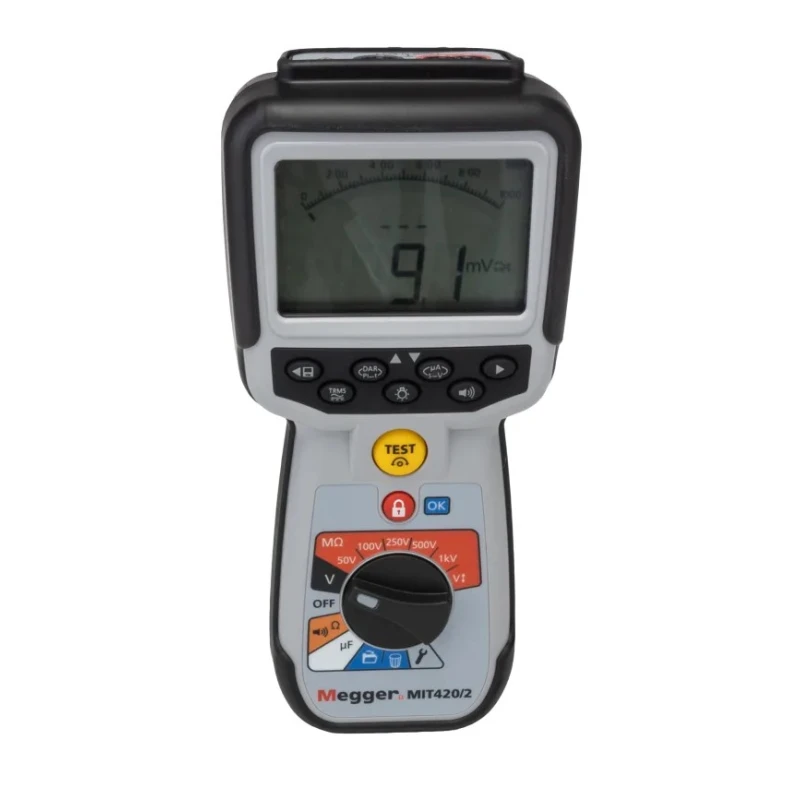

The tester features an analogue and dual digital backlit LCD display, providing clear and accurate readings even in low-light or harsh conditions. Its 205mA test current enables reliable insulation testing of industrial cables, wire harnesses, and electrical installations.

The device operates on alkaline batteries and includes an automatic power-off feature to enhance battery life during field use. It has an IP54 rating for dust and water resistance, ensuring dependable performance in challenging environments.

With compact dimensions (220mm height, 92mm length, 50mm width) and a lightweight of 775g, the tester is ergonomically designed for prolonged handheld operation. It functions efficiently within a broad ambient temperature range from -20°C to +55°C.

Designed for diverse industrial testing applications including cable and wire testing, production and assembly line inspections, and automation system diagnostics, this tester combines safety, precision, and reliability.

Features an analogue and dual digital display for clear, accurate readings. Delivers a test current of 205mA ensuring effective insulation resistance testing. Operates on alkaline batteries with an automatic power-off to preserve battery life.

Backlit LCD enables reading results in low-light and harsh conditions. IP54 rated for protection against dust and water sprays from all directions. Suitable for industrial applications including cable and wire testing, production lines, and industrial automation.

Compact and ergonomic design with dimensions of 220mm (H) x 92mm (L) x 50mm (W). Operates reliably between -20°C to +55°C temperature range. Complies with IEC 61326-1 standards and features CAT IV 600V safety rating. Manufactured in the United Kingdom, rated at 775g weight for portability.

This Megger insulation tester is an essential tool for electrical professionals seeking an accurate, robust, and portable insulation measurement device for industrial and manufacturing environments. Explore more Insulation Testers and electrical test equipment on EnvMart.
