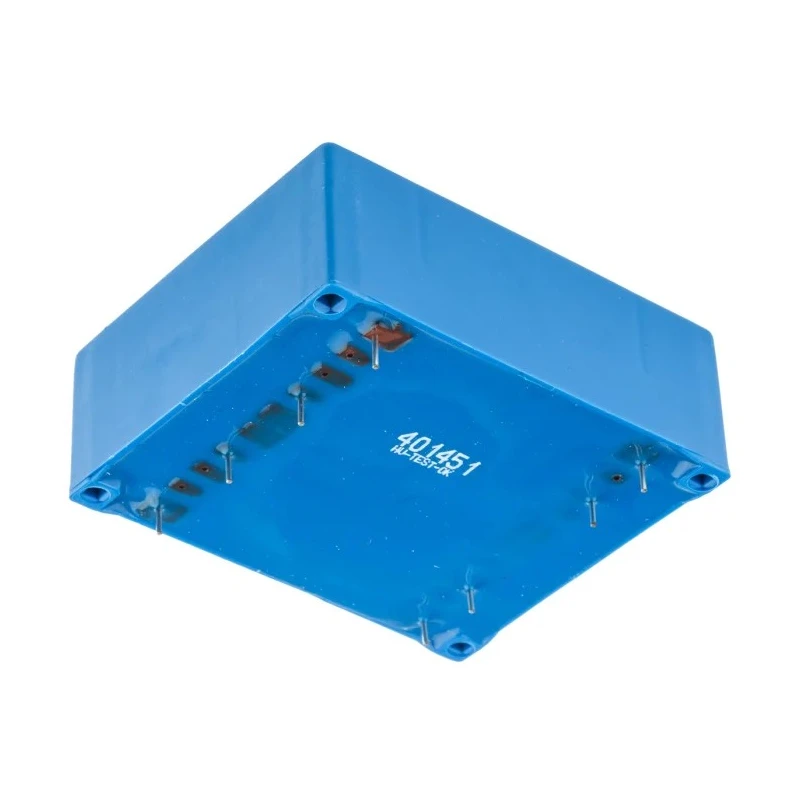

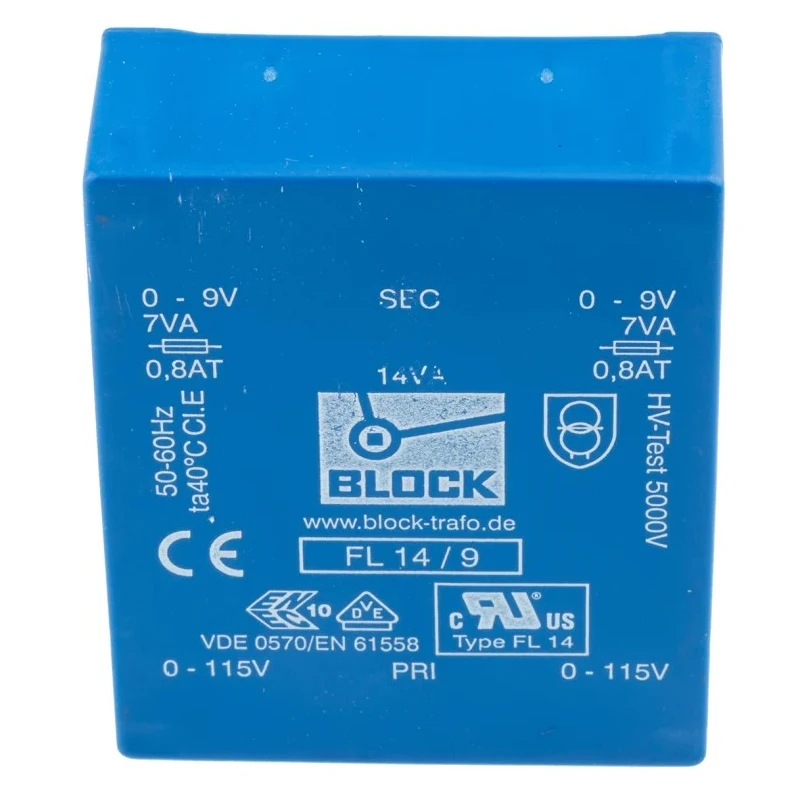

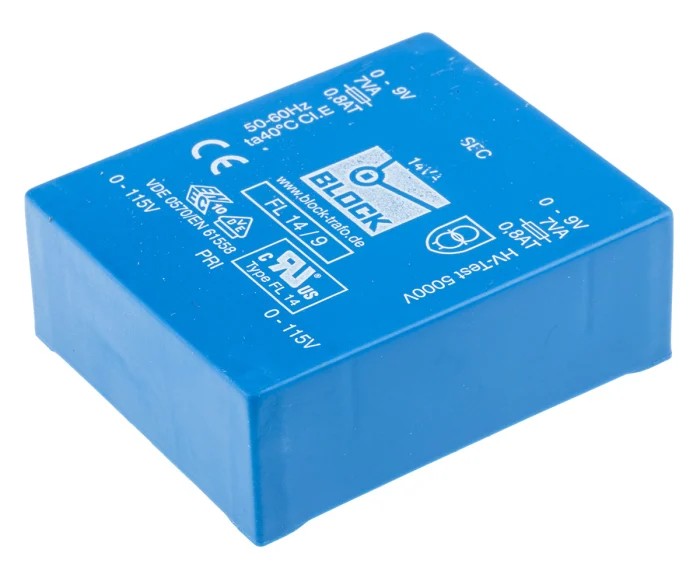

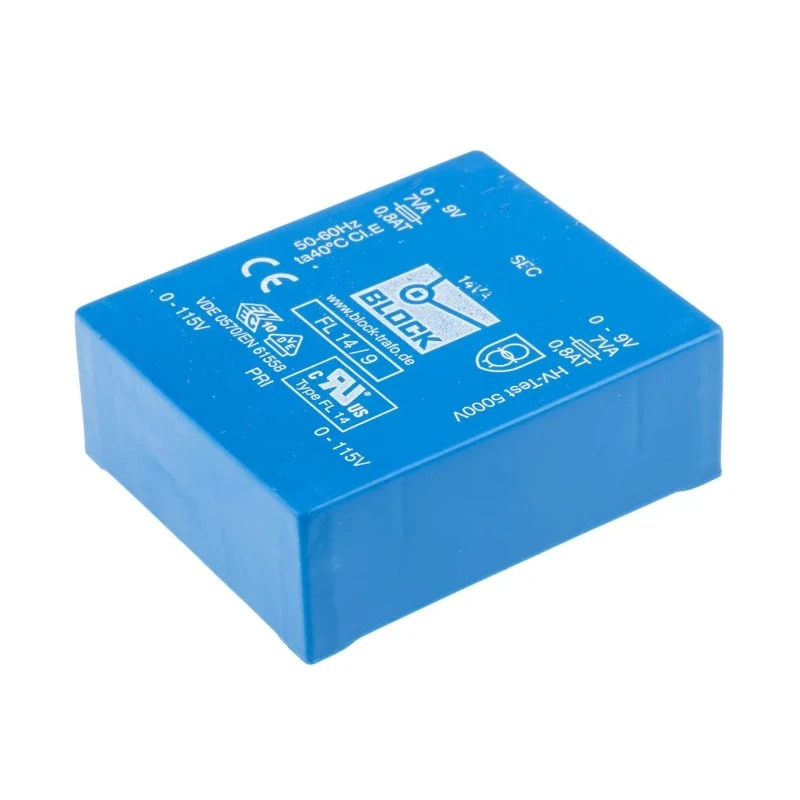

Block Low Profile 9 V AC 2 Output Pin PCB Transformer, Dual Secondary Windings, Isolation 5000V, 14VA, VDE 0570 FL 14/9
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Block |
| Length | 68mm |
| Model | FL 14/9 |
| Depth | 57mm |
| Gross Weight | 980g |
| Width | 44mm |
| Mount Type | Pin |
| Standard | EN60742, VDE 0551, IEC 61558 |
| Series | FL |
| Maximum Operating Temperature | 40°C |
| Number of outputs | 2 |
| Winding Type | Dual Secondary |
| Standards/Approvals | VDE 0570 Teil 2-1, DIN EN 61558-2-4, IEC 61558-2-4, VDE 0570 Teil 2-6, IEC 61558-2-1, DIN EN 61558-2-1, C-UL-US, ENEC 10 (VDE), VDE 0570 Teil 2-4, IEC 61558-2-6, DIN EN 61558-2-6, UL 94 V-0 |
| Isolation Voltage | 5000V |
| Primary Voltage | 115 V ac, 230 V ac |
| Secondary Voltage | 9 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
Key Features
- Features dual secondary windings allowing series or parallel connection.
- Supports primary voltages of 115 V AC and 230 V AC at 50 to 60 Hz frequency.
- Constructed with vacuum epoxy resin moulded bobbins rated UL94-V0 for safety.
- Offers isolation voltage of 5000 V ensuring enhanced electrical safety.
- Measures 68 mm length, 44 mm width, and 57 mm depth suitable for compact installations.
- Maximum operating temperature is 40°C maintaining performance under thermal conditions.
- Meets multiple international standards including VDE 0570 and IEC 61558 for quality assurance.
- Lightweight design with a gross weight of approximately 980 g.
Product Description
Block FL 14/9 PCB Transformer is a compact, low profile component engineered for efficient power transformation on printed circuit boards. It provides a secondary voltage of 9 V AC with 2 output pins, enabling versatile dual secondary winding configurations either in series or parallel to meet varied circuit requirements.
Designed to operate reliably with primary voltages of 115 V AC and 230 V AC within 50 to 60 Hz frequency range, this transformer utilizes vacuum epoxy resin moulding rated to UL94-V0 for flame resistance and electrical insulation. Its construction features double section glass fibre reinforced polyamide bobbins which combine durability with low electrical losses.
The transformer offers robust isolation voltage of 5000 V, safeguarding against electrical faults and enhancing safety in electronic applications. Measuring 68 mm by 44 mm by 57 mm, it is suitable for compact PCB layouts with additional fixing holes to secure mounting firmly.
Operating up to a maximum temperature of 40°C, the unit maintains optimal performance while adhering to international standards including VDE 0570 Teil 2-1, DIN EN 61558-2-4, IEC 61558-2-4, and additional C-UL-US and ENEC 10 (VDE) certifications. The transformer has been rigorously tested for electrical and flash safety with low inter-winding capacitance and minimal radiated noise to reduce electromagnetic interference in sensitive circuits.
Features dual secondary windings for flexible output configurations. Compact, low profile design ideal for space-constrained PCBs. Vacuum epoxy resin moulded to UL94-V0 standard for flame retardancy. High isolation voltage rating of 5000 V ensures electrical safety.
Meets multiple international quality and safety standards. Low electrical interference due to low inter-winding capacitance. Extra mounting holes provide secure installation on PCBs. Lightweight with gross weight approximately 980 g for ease of handling.
Optimal operation in temperature up to 40°C. Ideal for use in electronics, industrial, and power supply applications requiring robust and compact transformers.
This product is manufactured in Germany, ensuring high standards of quality and reliability. Ideal for professionals in industrial, laboratory, electronics manufacturing, and power conditioning sectors seeking dependable PCB Transformers.
Explore EnvMart for a comprehensive range of transformers and electrical components tailored to your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports primary voltages of 115 V AC and 230 V AC.
The transformer provides a secondary voltage output of 9 V AC.
It offers an isolation voltage of 5000 V, enhancing electrical safety.
The dimensions are 68 mm in length, 44 mm in width, and 57 mm in depth.
The maximum operating temperature is 40°C.
It meets multiple international standards including VDE 0570, IEC 61558, and UL 94 V-0.
This model features 2 output pins with dual secondary windings.
It operates within a frequency range of 50 to 60 Hz.
It uses a pin mount type for installation on printed circuit boards.
It is constructed with vacuum epoxy resin moulded bobbins rated UL94-V0 for safety.
The gross weight is approximately 980 g, making it lightweight for handling.
Yes, the dual secondary windings allow for flexible configurations in either series or parallel.
