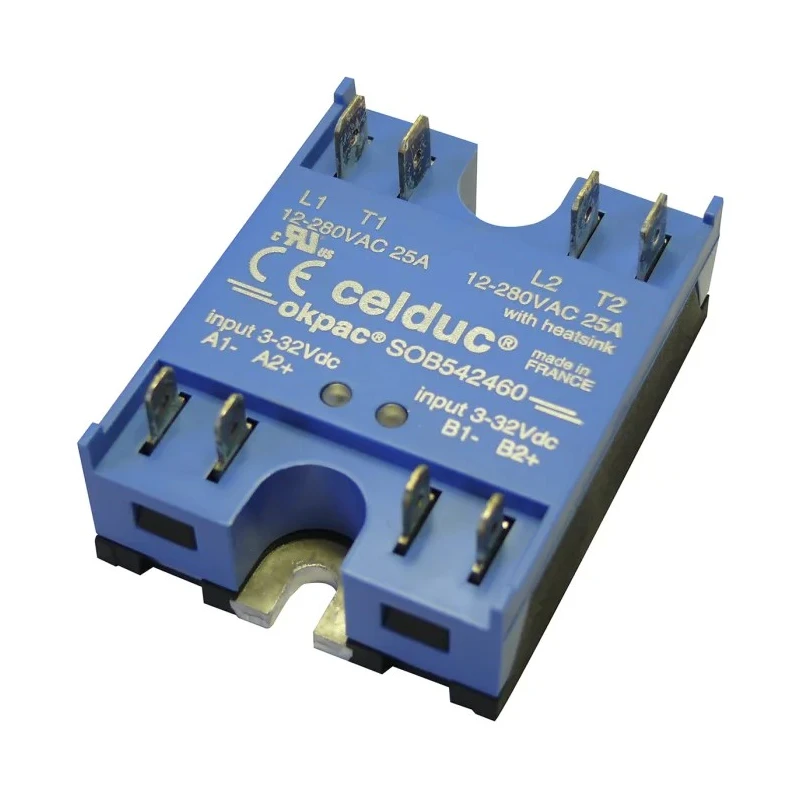

Celduc Solid State Relay DIN Rail Mount 25 A Load 280 V ac Load 32 V dc Control SOB5

Celduc SOB5 series solid state relay offers reliable switching with a maximum load current of 25 A and maximum load voltage of 280 V ac. It is designed for DIN rail mounting for streamlined industrial and automation installations. The relay uses a Triac output type with zero cross switching functionality, significantly minimizing electrical noise and extending the lifespan of connected loads.

This model supports a control voltage range from 3 V dc minimum up to 32 V dc maximum, enabling compatibility with various control systems. It has a compact form factor with dimensions of 44.8 mm width, 45 mm length, and 19.5 mm height. The relay’s low on state resistance of 16 mΩ ensures efficient conduction and minimal power dissipation.

Operating temperatures range from -40°C to 100°C, allowing use in harsh industrial environments. The contact configuration is SPST (single pole single throw), suitable for typical switching applications. The device also maintains a low off state leakage current of 1 mA, enhancing operational reliability.

Standards and approvals including CE, CSA, cURus, EAC, RoHS, UKCA, and VDE certify this relay for global electrical safety and quality compliance. The product is manufactured in France, reflecting high build standards.

This solid state relay is well suited for applications in industrial automation, machinery control, HVAC systems, and electrical panels requiring reliable and silent switching. Its DIN rail mount form allows easy integration within electrical cabinets and control enclosures.

DIN rail mount type ensures easy installation. Supports maximum load current of 25 amps for robust operation. Output type is Triac suitable for AC load control. Zero cross switching reduces electrical noise and stress on the relay.

Wide operating temperature range from -40°C to 100°C for various environments. Compact dimensions 44.8 mm width, 45 mm length, and 19.5 mm height. On state resistance is low at 16 milliohms, ensuring energy efficiency. Contact configuration is single pole single throw (SPST) for standard switching.

Off state leakage current is minimal at 1 mA. Compliance with standards CE, CSA, cURus, EAC, RoHS, UKCA, VDE ensures safety and quality. Discover more Solid State Relays and related electrical components at EnvMart for your industrial and automation needs.
